H374-A81-AAW1 Gigabyte Dual Xeon 6900E+ 3U 6NH374A81DR000AAW1 Server Barebone
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
Gigabyte H Series
Not available
Do you have questions about this product 6NH374A81DR000AAW1?
H374-A81-AAW1 Gigabyte
High-Density 3U 4-Node Rack Server architecture with Intel Xeon 6 scalability in the H374-A81-AAW1 Gigabyte platform

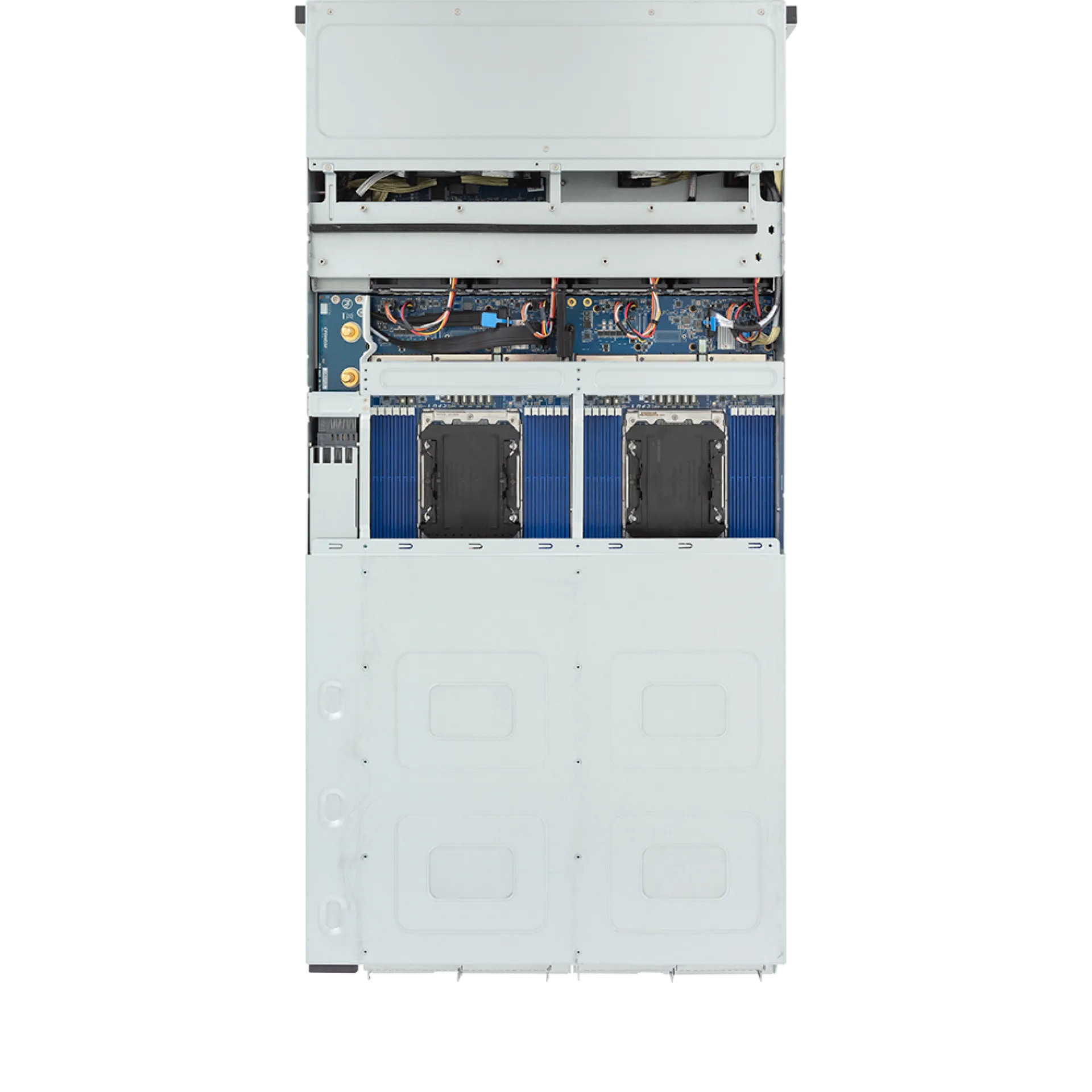

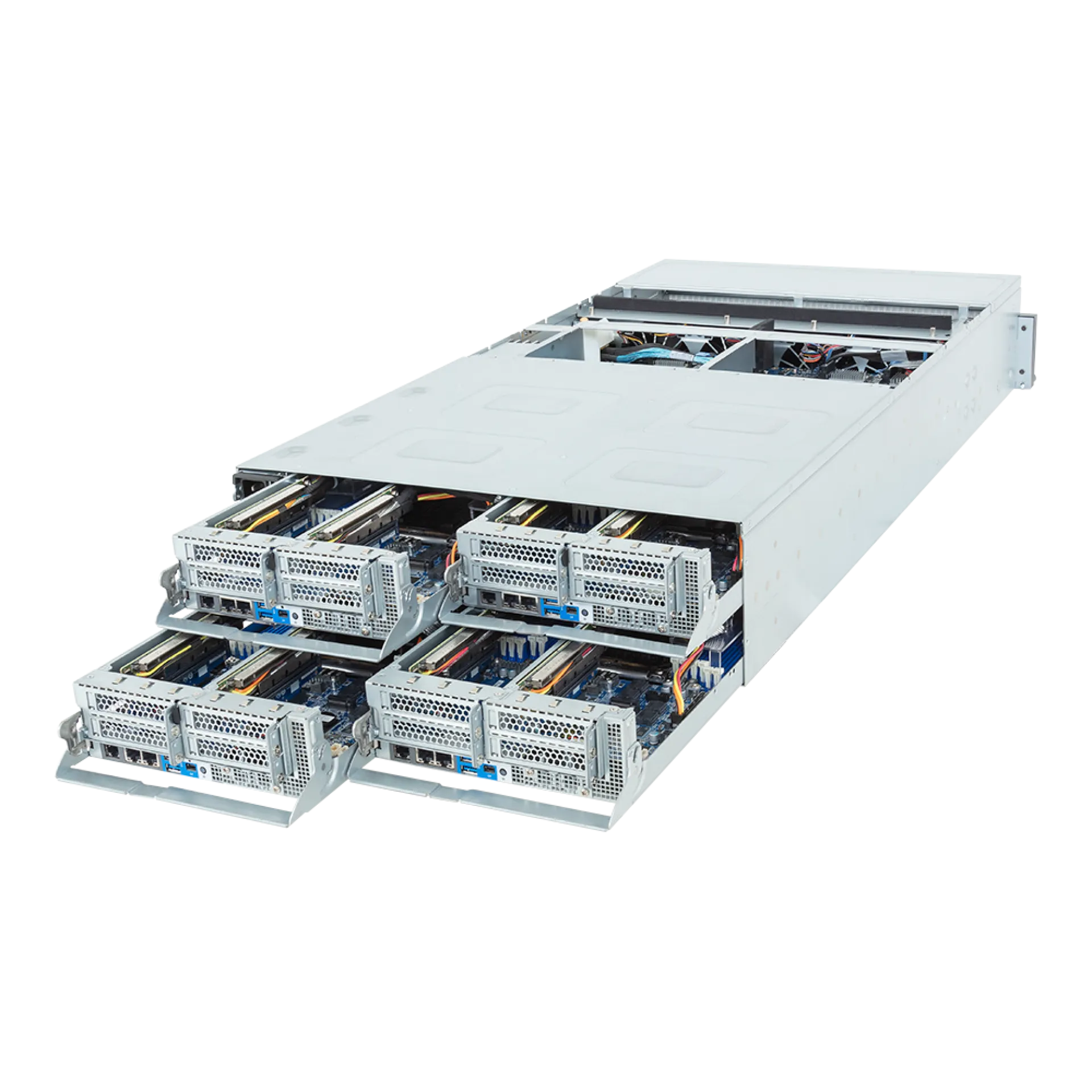

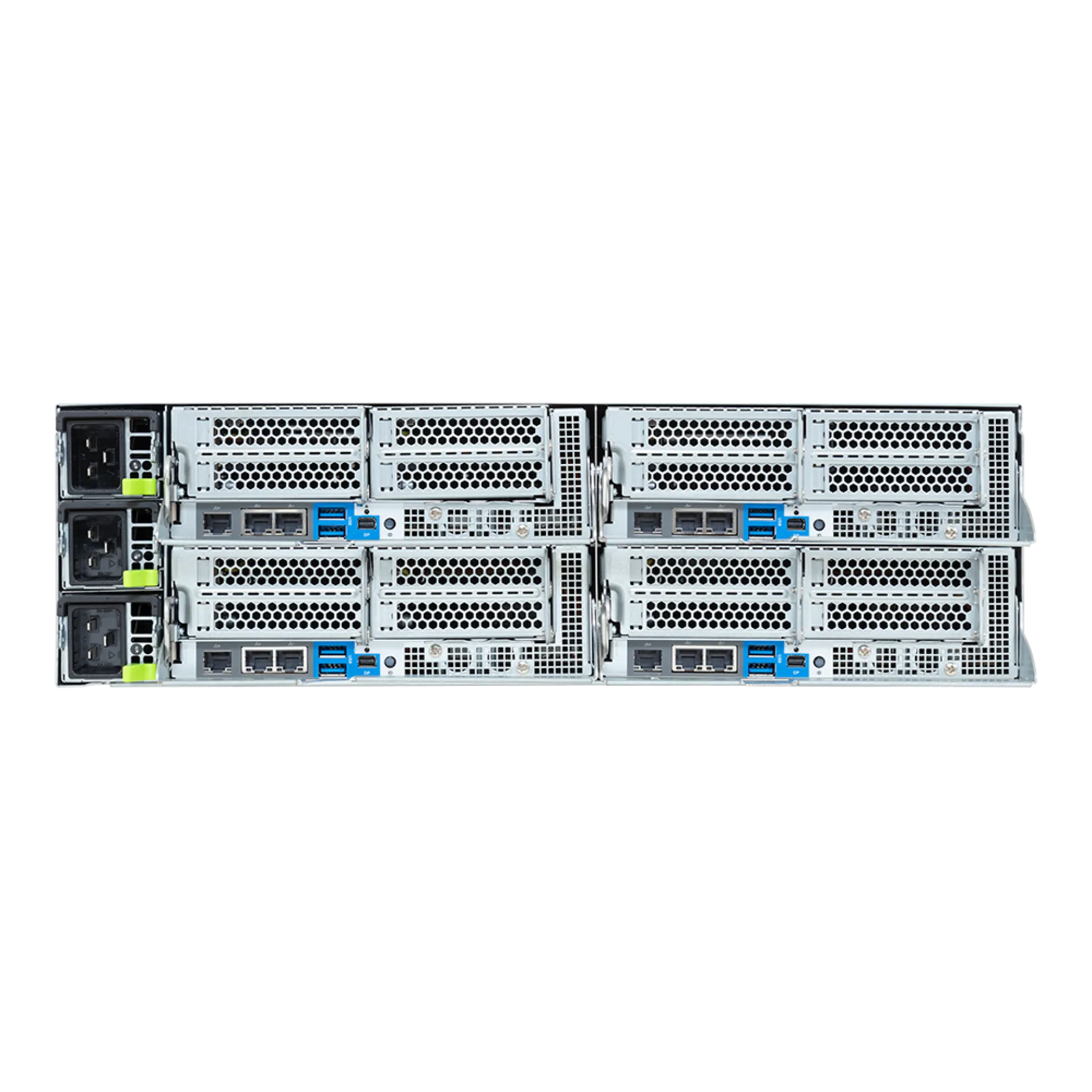

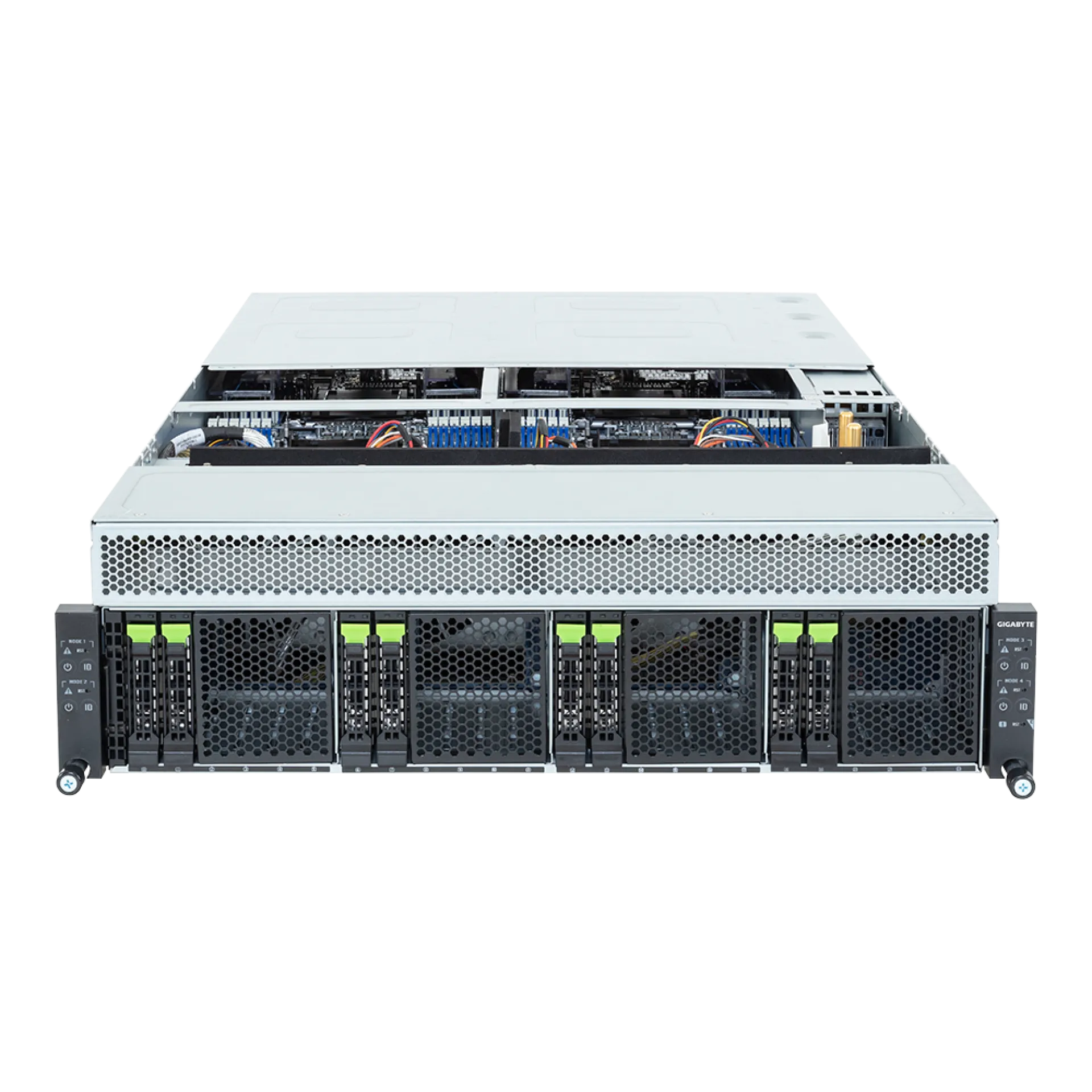

The H374-A81-AAW1 Gigabyte multi-node design consolidates 4 rear-access compute nodes in a 3U chassis to maximize cores, memory bandwidth, and I/O per rack unit for HPC clusters and dense enterprise compute. Each node supports dual-socket Intel Xeon 6 (Xeon 6900 series, Granite Rapids) on Socket BR (LGA7529), enabling high-TDP CPU configurations where sustained throughput and NUMA-aware tuning are required.
Per node, the 12-channel DDR5 ECC RDIMM/MRDIMM memory architecture with 24 DIMM slots scales to 6TB, supporting in-memory analytics, virtualization consolidation, and latency-sensitive services with strong RAS characteristics. The H374-A81-AAW1 Gigabyte storage plane uses 8 x 2.5-inch hot-swap bays per node with Gen5 NVMe support for high IOPS and low queue-depth latency; optional controllers enable SATA/SAS-4 integration for tiered datasets. PCIe 5.0 expansion is optimized for adapters rather than full-length GPUs, delivering up to 16 PCIe 5.0 x16 low-profile slots across the chassis for NICs, DPUs, and storage accelerators.
Why Choose the H374-A81-AAW1 Gigabyte?
The H374-A81-AAW1 Gigabyte platform targets a high density-to-performance ratio by combining 4 independent dual-socket domains with unified power and airflow, simplifying rack-scale growth while preserving node-level fault containment. Enterprise management is built in, with ASPEED AST2600 BMC per node and an AST2620 chassis management controller for consistent remote operations, inventory, and lifecycle control.
Gigabyte engineering emphasizes serviceable, standards-aligned platforms for modern data centers, pairing redundant 80 PLUS Titanium hot-swap power with IPMI/HTML5 KVM management and flexible storage/RAID enablement via add-in controllers or Intel VROC key support.
Key Applications:
- HPC cluster compute nodes
- High-density virtualization and private cloud
- HCI-ready hybrid cloud infrastructure
- Database and big data analytics
- High-throughput storage and I/O nodes
At Happyware - Server Hardware you benefit from non-binding offers tailored to your H374-A81-AAW1 Gigabyte deployment targets and an extended warranty of up to 6 years to protect long lifecycle rollouts in enterprise and HPC environments.
Technical details of H374-A81-AAW1 Gigabyte
How long is the Warranty and how you can get technical support for H374-A81-AAW1 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
