H274-S61-AAW1 Gigabyte

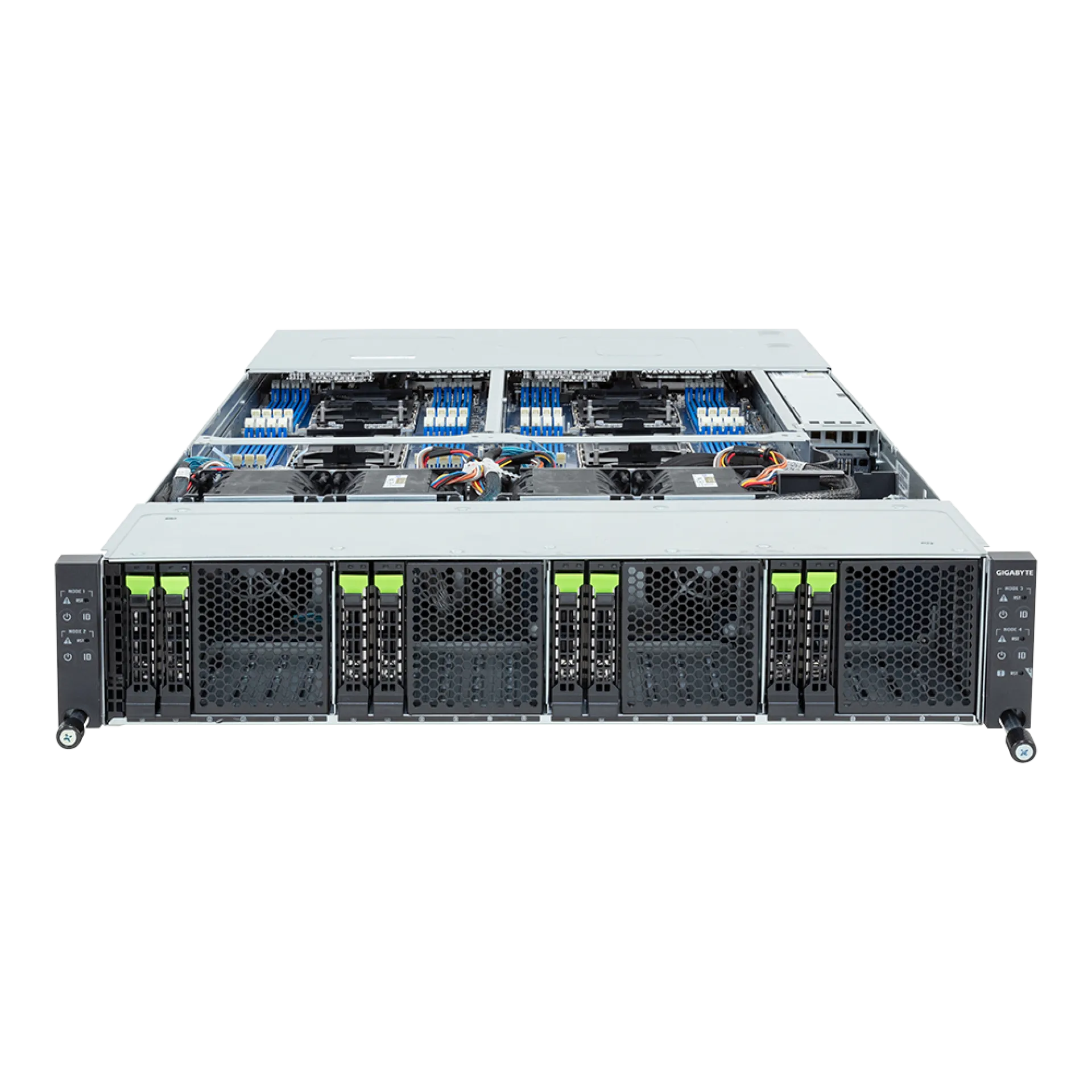

High-Density 2U 4-Node Rack Server Barebone delivering Xeon 6 scale-out efficiency with the H274-S61-AAW1 Gigabyte

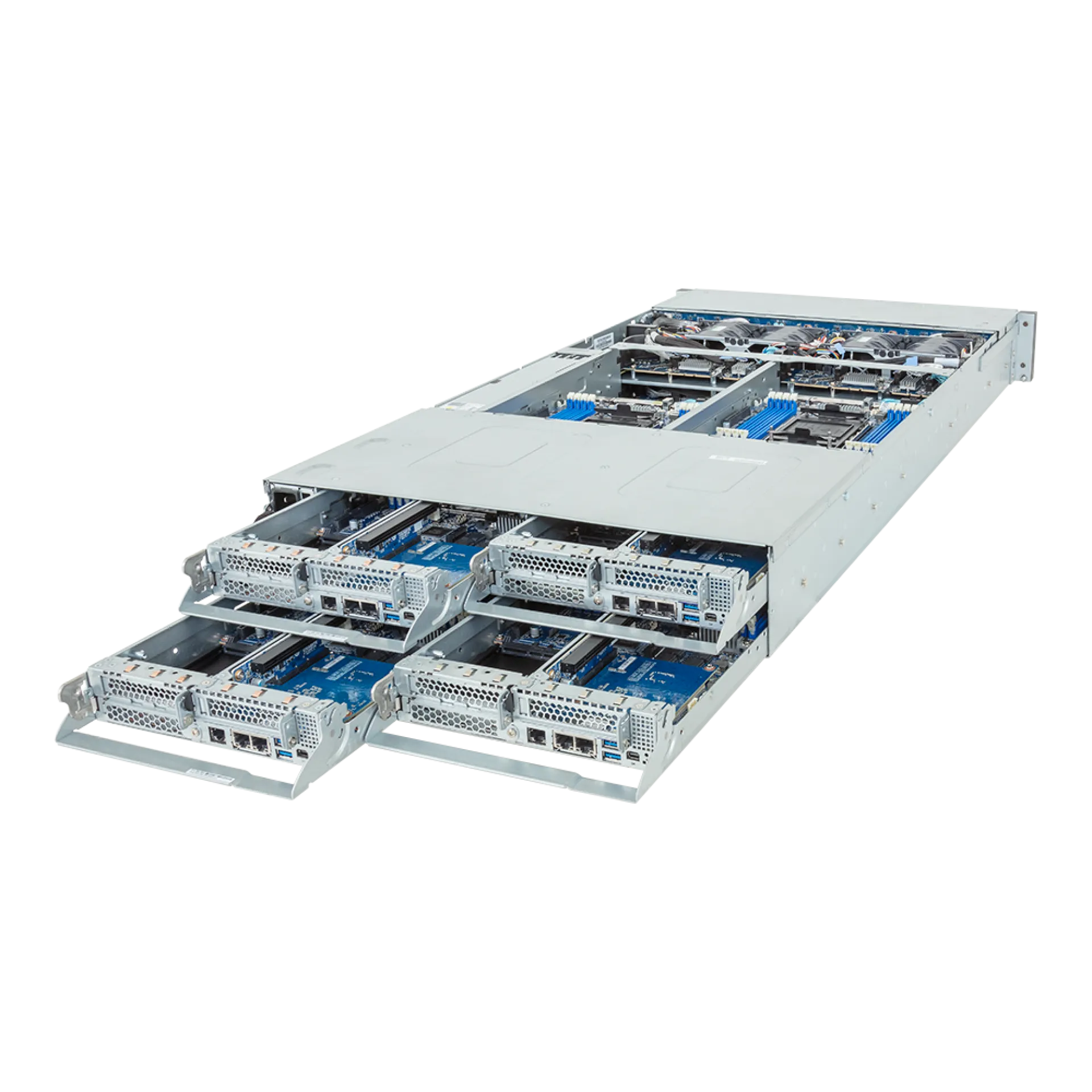

The H274-S61-AAW1 Gigabyte is a 2U 4-node platform engineered for dense compute consolidation, enabling per-node dual-socket Intel Xeon 6 (Granite Rapids or Sierra Forest) deployment for virtualization, cloud infrastructure, and scale-out enterprise services. Its node-level architecture is optimized for balanced CPU throughput, predictable memory latency, and streamlined serviceability in multi-tenant racks.

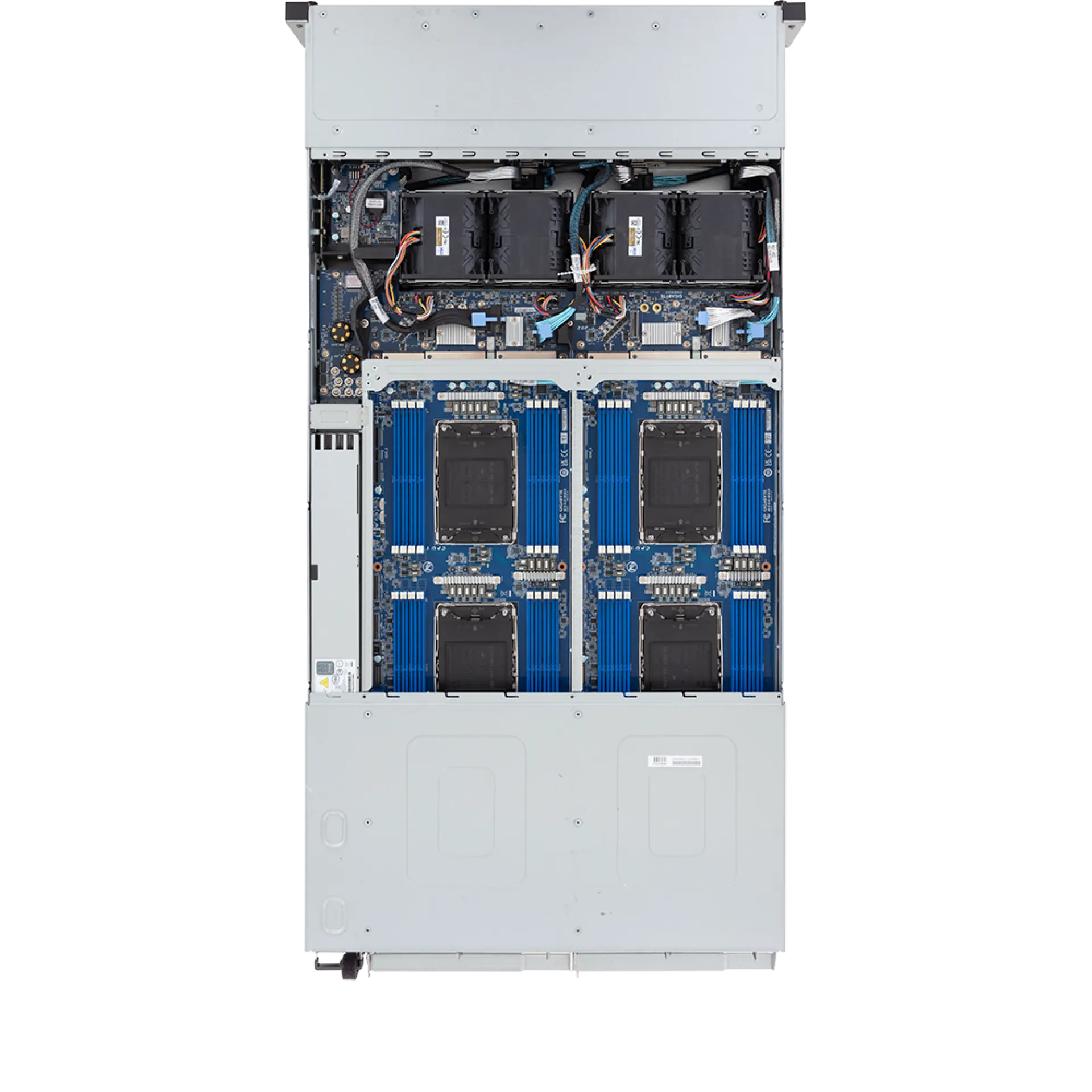

Per node, the H274-S61-AAW1 Gigabyte integrates 16x DDR5 ECC RDIMM/MRDIMM slots to sustain high memory bandwidth for VM density and in-memory analytics, while PCIe Gen5 lanes provide deterministic expansion for modern NICs and storage controllers. Storage is designed around 8x 2.5in hot-swap bays per node with Gen5 NVMe capability, complemented by optional M.2 PCIe Gen4 for boot or tiering. The platform further supports OCP NIC 3.0 SFF PCIe 5.0 x16 per node, aligning network scaling with east-west traffic patterns in HCI and private cloud.

Why Choose the H274-S61-AAW1 Gigabyte?

The H274-S61-AAW1 Gigabyte delivers a high density-to-performance ratio by combining 4 independent dual-socket nodes in a single 2U chassis, reducing rack footprint while preserving node isolation for operational control. With redundant 80 PLUS Titanium power and IPMI/BMC remote management, it scales cleanly from a few racks to cluster deployments without compromising uptime expectations.

Gigabyte designs enterprise platforms with a focus on thermal consistency, component qualification, and standards-based manageability. This approach supports data centre integration requirements such as predictable power domains, serviceable hot-swap subsystems, and lifecycle-friendly modular expansion.

Key Applications:

High-density virtualization
Private and hybrid cloud
HCI clusters
Scale-out application hosting
Big data analytics
HPC clusters

At Happyware - Server Hardware you benefit from non-binding offers tailored to your node, storage, and network configuration strategy for the H274-S61-AAW1 Gigabyte, and from bulk order discounts that simplify scaling standardized clusters across racks and sites.

Technical details of H274-S61-AAW1 Gigabyte

Type:

Rack

Suitability:

Server

CPU Socket:

E2 (LGA 4710)

CPU Family:

Xeon

Supported CPU Manufacturer:

Intel

Supported CPU Type:

Xeon 6700 Xeon 6500

Supported CPU Generation:

6th

Supported CPU Codename:

Sierra Forest Granite Rapids

Nodes:

RAM Type:

RDIMM MRDIMM

RAM Max. Total:

4TB

RAM Slots Total:

ECC Support:

ECC

Bays:

2x 2.5" HotSwap NVMe, SATA, SAS

Hot-Swap:

Yes

RAID Support:

Yes

PCIe:

1x PCIe 5.0 x16 (x16 mode)

Expansion Slots:

1x PCIe 5.0 x16 Low-Profile

Onboard Network LAN:

2x RJ45 1 Gbps Intel I350-AM2

Onboard Network LAN Speed:

1 Gbps

Front I/O Ports:

System status LED CMC status LED Power button with LED System Reset button CMC reset button UID button with LED

IPMI / BMC integrated:

Yes

Chipset:

System-on-Chip (SoC)

Power Supply Wattage:

3000W

Redundant Power Supply:

Yes

Number of Power Supplies:

80 Plus Certificate:

80 Plus Titanium

Quantity of Cooler:

Performance Class:

High-End

TDP (Thermal Design Power):

350W

Applications:

Cloud Computing High End Enterprise Server Hyperconverged Infrastructure (HCI) Virtualization High-Performance Computing (HPC) Enterprise

Onboard CPU:

Onboard Graphic:

Aspeed AST2600

Graphics Manufacturer:

ASpeed

Certificates:

80 Plus Titanium

Chassis Intrusion:

OS:

VMware ESXi Windows Server 2025

Operating Temperature:

10°C to 35°C

Non Operating Temperature:

-40°C to 60°C

Operating Relative Humidity:

8°C to 80°C

Non-operating Relative Humidity:

20°C to 95°C

How long is the Warranty and how you can get technical support for H274-S61-AAW1 Gigabyte

Warranty:	36 months (part)
RMA Url:	https://www.gigabyte.com/Support/Consumer/Warranty
Description:	Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard.
