H273-Z80-LAW1 Gigabyte Dual EPYC 9005 2U 6NH273Z80DR000LCW1 Server Barebone
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
Rev-3.x
Product line:Gigabyte H Series
Not available
Do you have questions about this product 6NH273Z80DR000LCW1?
H273-Z80-LAW1 Gigabyte

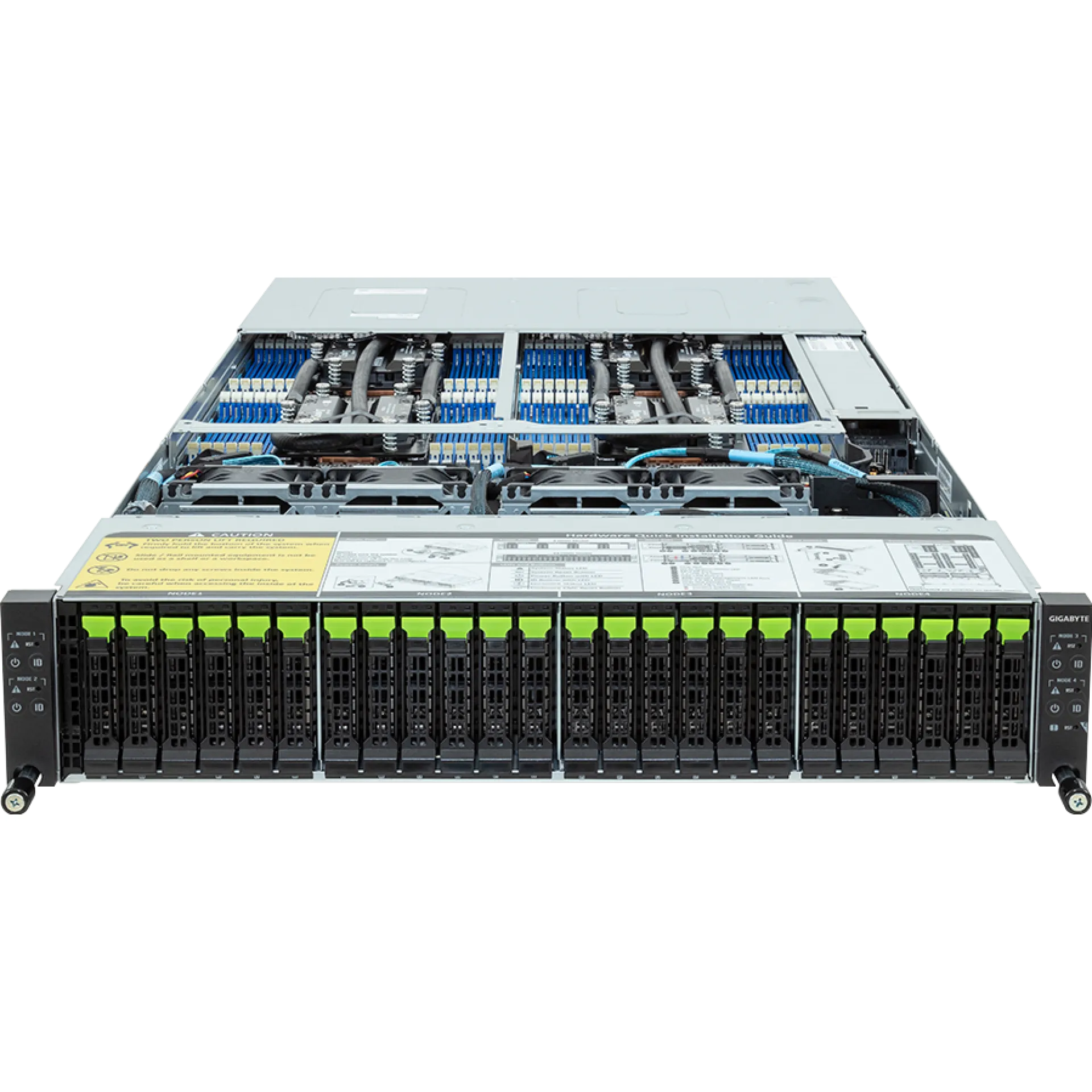

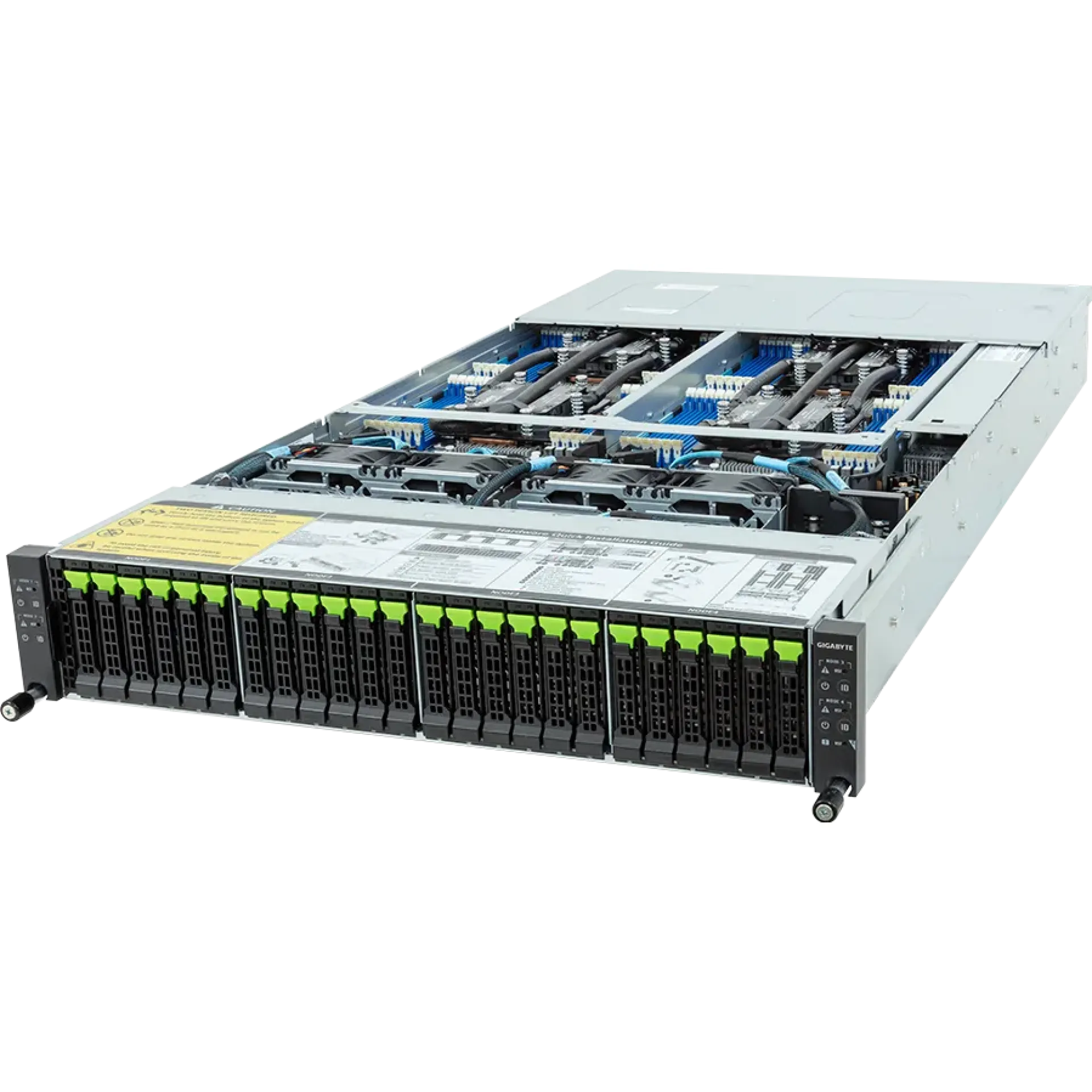

High-Density 2U 4-Node Multi-Node Rack Server Barebone with Direct Liquid Cooling using the H273-Z80-LAW1 Gigabyte

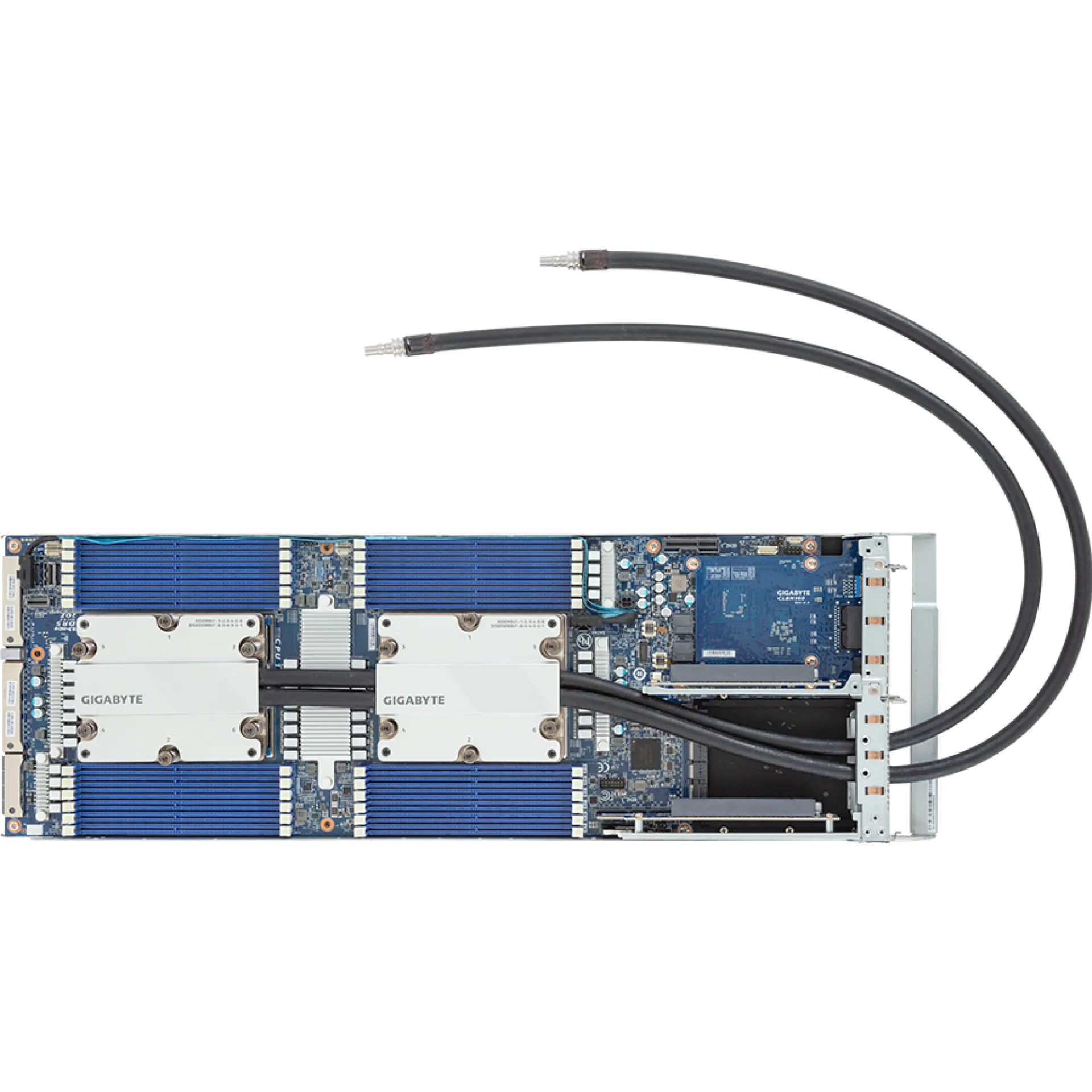

H273-Z80-LAW1 Gigabyte is a rear-access 2U, 4-node platform engineered for CPU-dense scale-out infrastructure where per-node isolation and shared chassis efficiency are both required. Each node supports dual AMD EPYC 9005/9004 (SP5) processors up to 400W, enabling high core counts for virtualization clusters, HCI, and database-heavy east-west traffic without sacrificing serviceability.
The memory subsystem is optimized for bandwidth and capacity, providing 24x DDR5 RDIMM ECC slots per node with 12-channel access per CPU, allowing large in-memory datasets and predictable latency under consolidation. PCIe 5.0 expansion is focused on modern I/O: each node delivers a PCIe 5.0 x16 low-profile slot plus an OCP NIC 3.0 (PCIe 5.0 x16) slot for modular, data-center-aligned networking. Storage is designed for high IOPS locality, with 24x 2.5in hot-swap bays across the chassis mapped as 6x NVMe/SATA per node, complemented by an internal M.2 NVMe boot option; SAS is enabled via an add-in HBA when required.
Why Choose the H273-Z80-LAW1 Gigabyte?

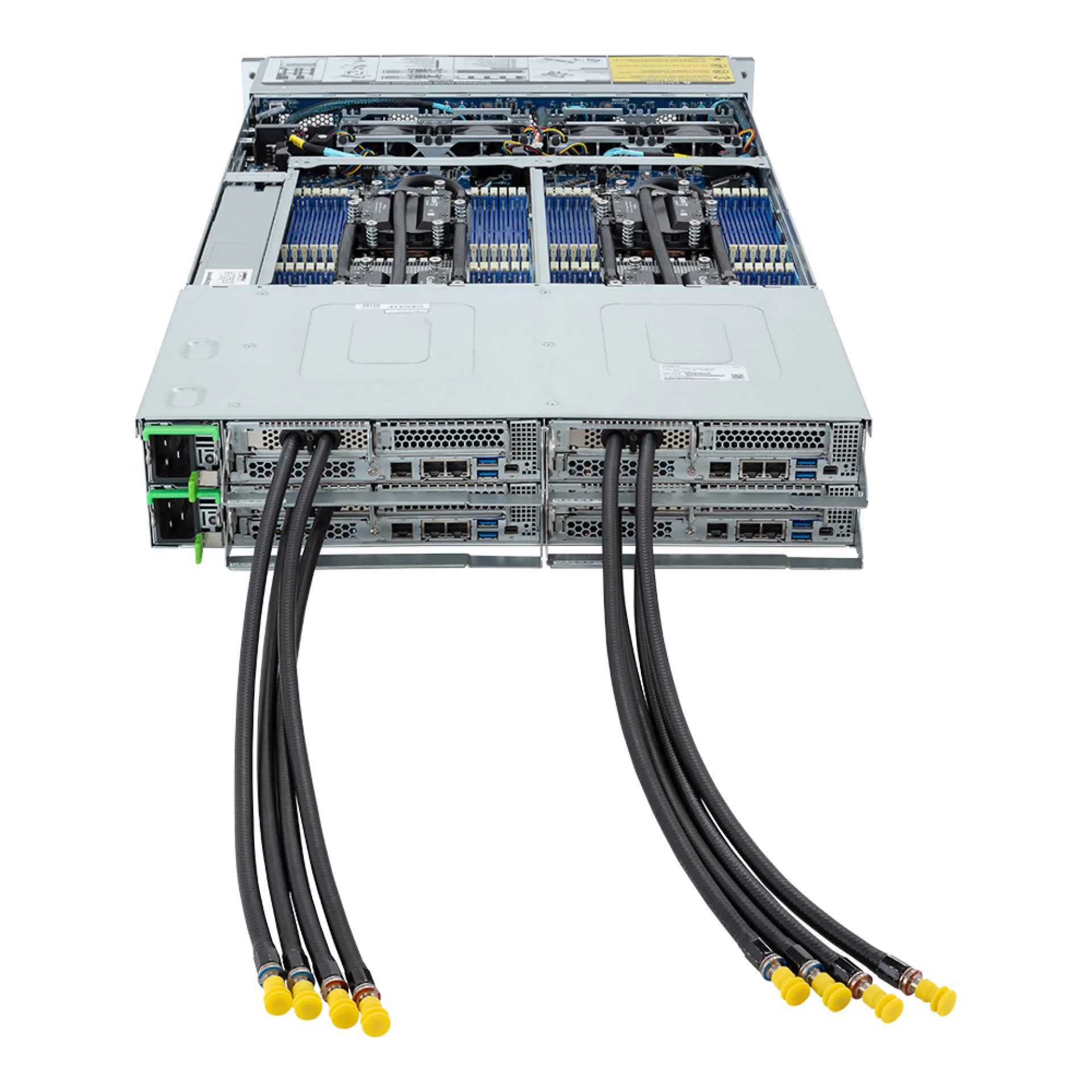

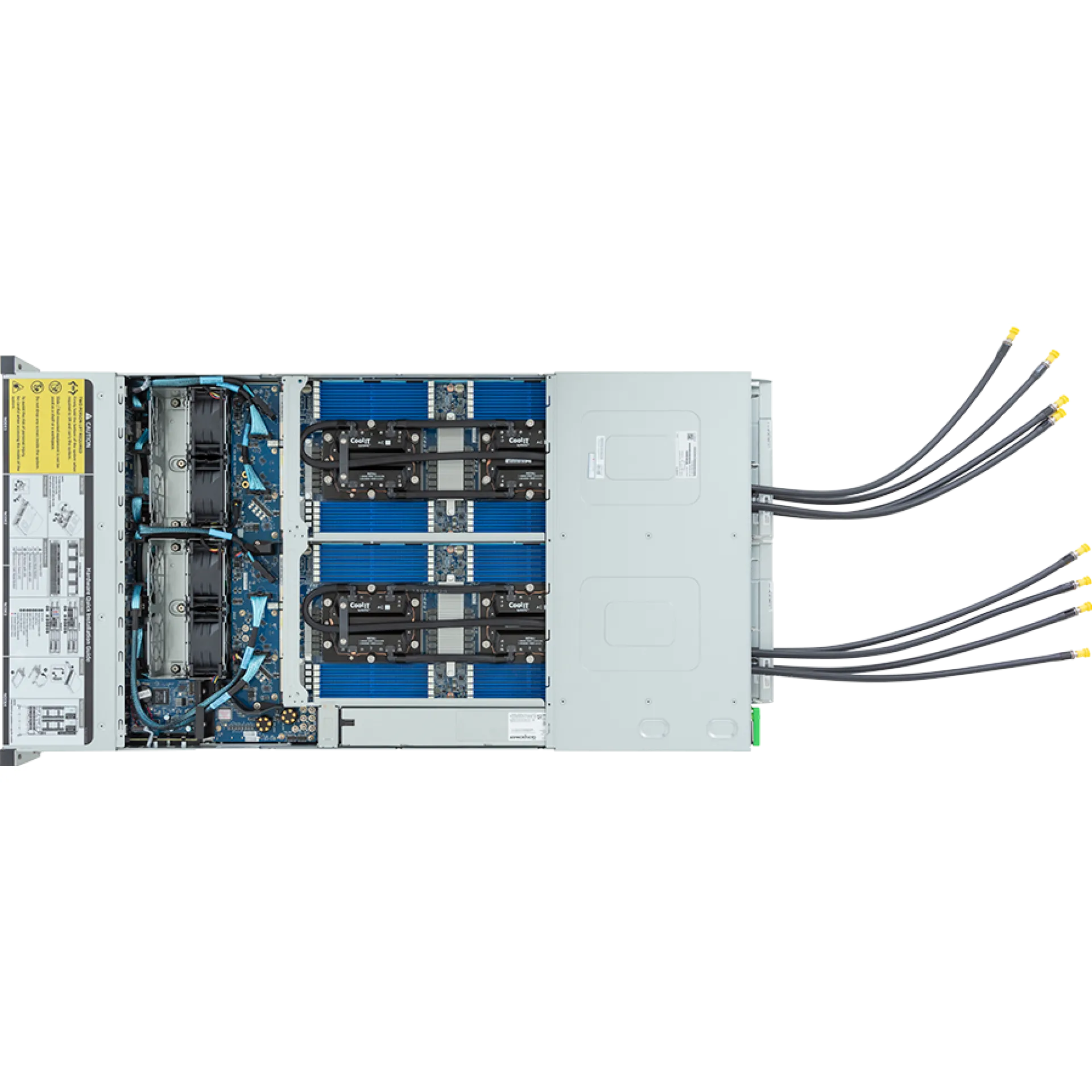

H273-Z80-LAW1 Gigabyte delivers a practical density-to-performance profile for private/hybrid cloud and scale-out data platforms by combining four independent SP5 nodes with a shared power and cooling envelope. Direct liquid cooling improves sustained CPU performance under high TDP operation, while redundant 80 PLUS Titanium 3000W PSUs and node-level BMC management support resilient, repeatable deployment at cluster scale.
Gigabyte designs this barebone around serviceability, modular I/O, and enterprise management standards, integrating IPMI/BMC (ASPEED AST2600) per node and chassis-level control for consistent firmware governance and data center operations.
Key Applications:
- Hyperconverged Infrastructure (HCI) nodes
- Private and hybrid cloud clusters
- Virtualization consolidation (ESXi/Citrix/Linux)
- Scale-out databases and big-data compute
- HPC/AI data preparation with NVMe-heavy local storage
At Happyware - Server Hardware you benefit from non-binding offers tailored to your H273-Z80-LAW1 Gigabyte node and networking configuration, enabling fast alignment with your rack, power, and storage architecture. For larger rollouts, bulk order discounts support standardized multi-node deployments across clusters.
Technical details of H273-Z80-LAW1 Gigabyte
How long is the Warranty and how you can get technical support for H273-Z80-LAW1 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
