H223-Z10-AAP1 Gigabyte Single EPYC 9005 2U 6NH223Z10DR000ACP1 Server Barebone

Product line:

Gigabyte H Series

See all Rackmount Servers 2U

See other Gigabyte products

This product is currently not priced. Request a personalized quote now.

Out of stock

Not available

Happyware Article Number:

SE0B4819-213638

Manufacturer Number:

6NH223Z10DR000ACP1

Brand:

Gigabyte

Are you a reseller?

Do you have questions about this product 6NH223Z10DR000ACP1?

Our team of server experts will be happy to help you to ensure you purchase the right product.

Description Technical details Warranty & Technical Support Reviews Bulk Deals

H223-Z10-AAP1 Gigabyte

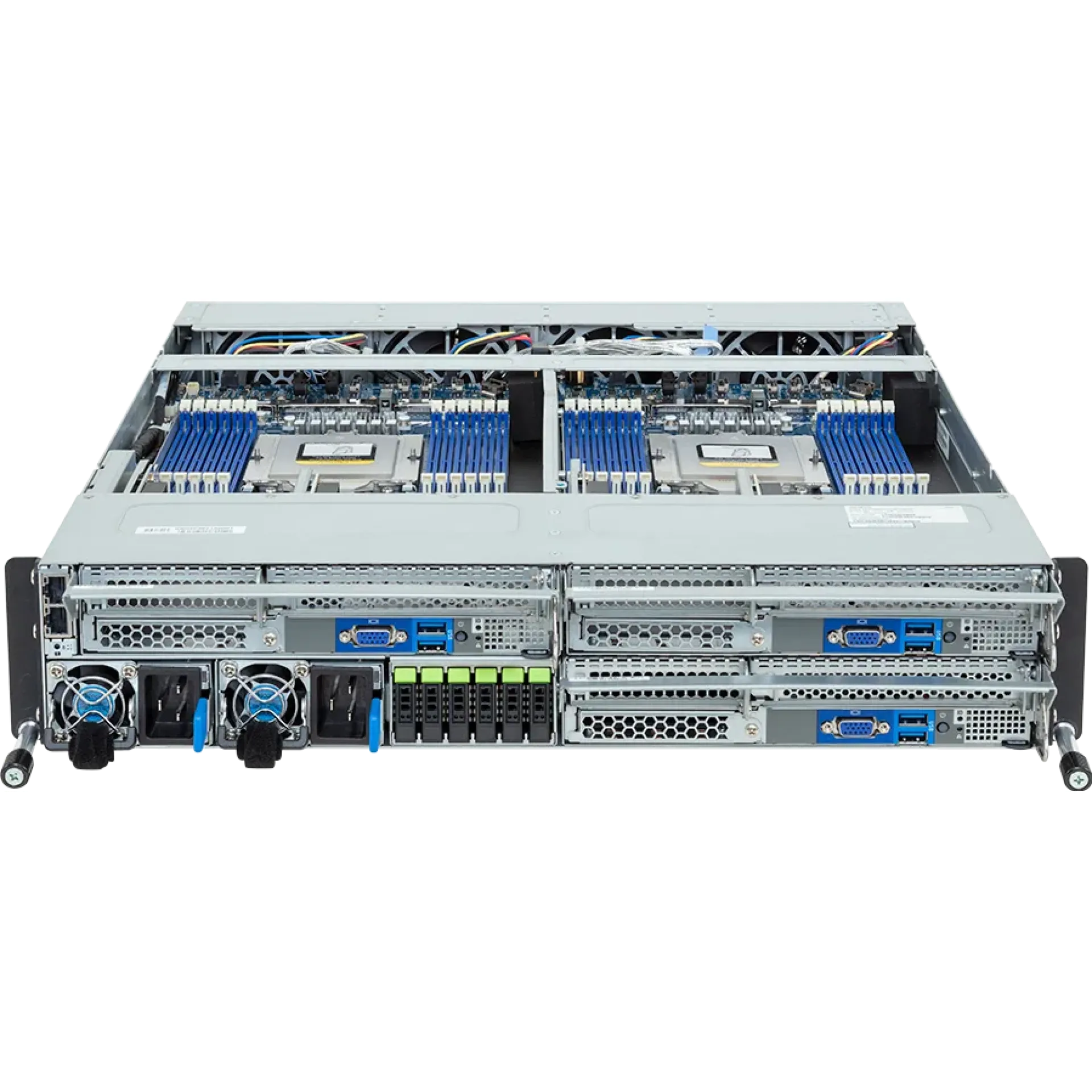

High-Density 2U 3-Node Rack Server for NVMe-First Cluster Design with the H223-Z10-AAP1 Gigabyte

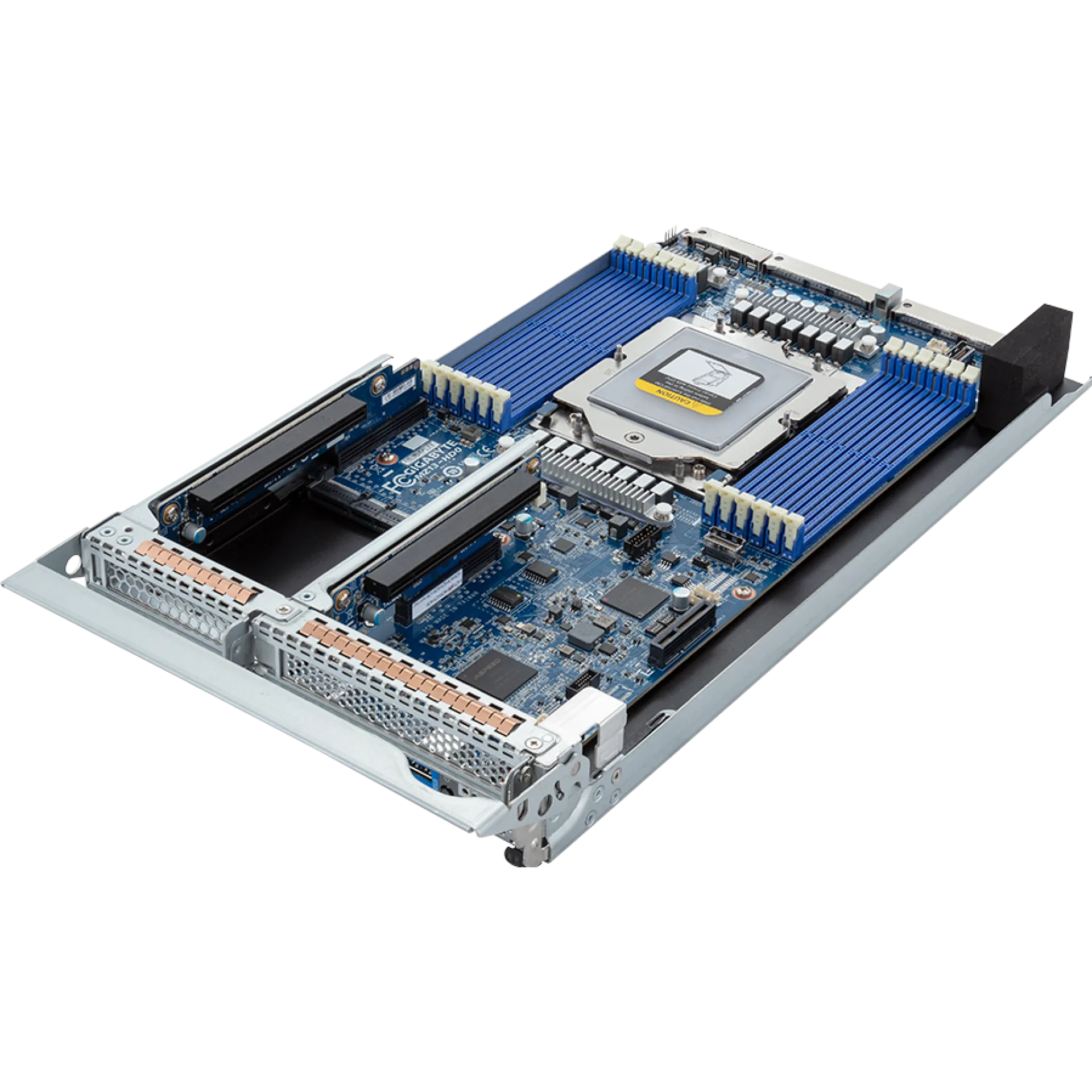

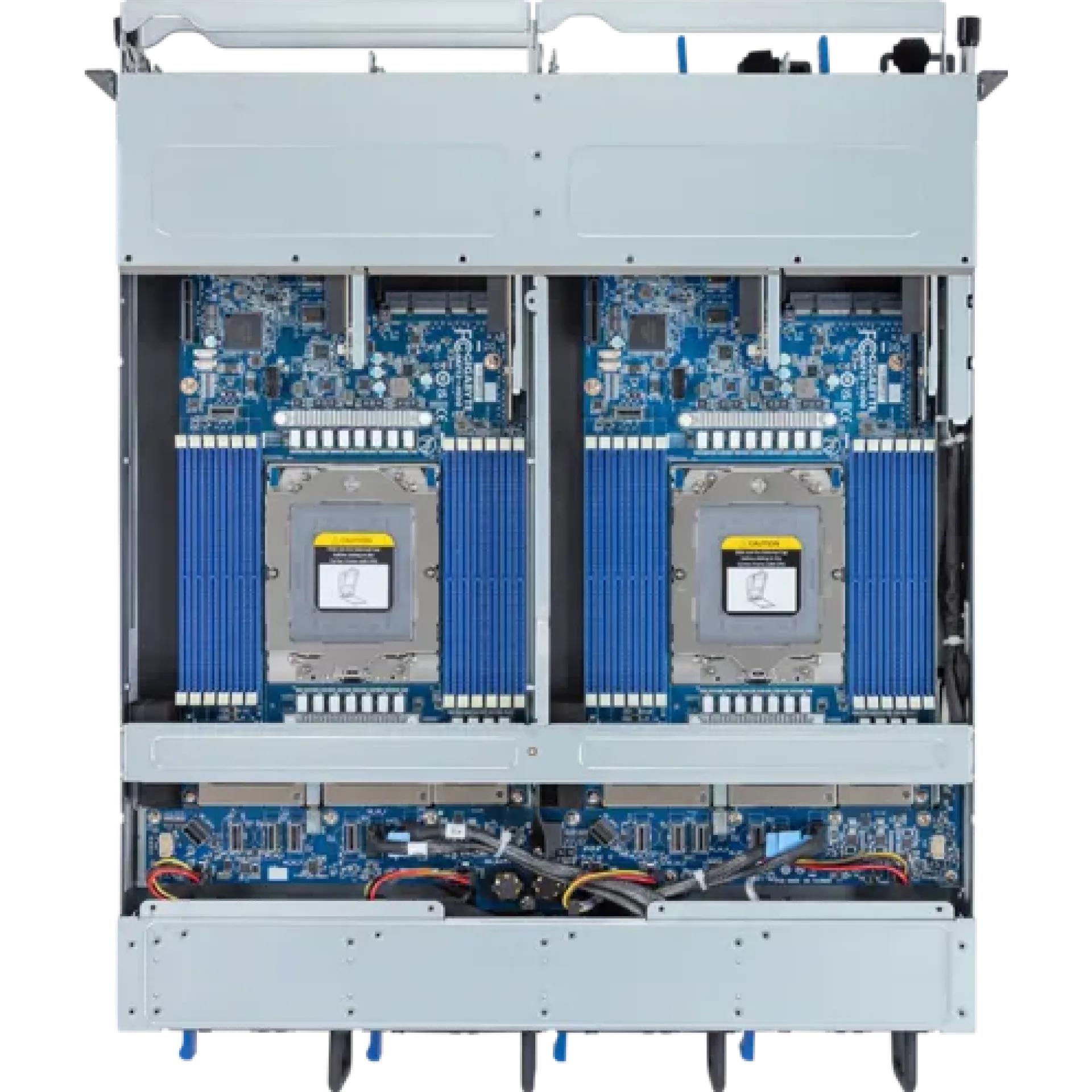

The H223-Z10-AAP1 Gigabyte is a 2U, front-access, 3-node platform engineered for high node density where per-node autonomy and shared chassis efficiency must coexist. Each node supports a single-socket AMD EPYC 9005/9004 processor on SP5, aligning compute throughput with modern scale-out architectures while keeping power and cooling domains predictable for clustered deployments.

To sustain CPU-to-storage balance, the H223-Z10-AAP1 Gigabyte integrates a 12-channel DDR5 ECC RDIMM memory topology per node and an NVMe-centric storage layout built around 6 hot-swap E1.S Gen4 bays per node, with an optional PCIe Gen4 M.2 boot device. PCIe Gen5 connectivity is maintained through a low-profile x16 slot and an OCP NIC 3.0 SFF Gen5 x16 interface for high-bandwidth data-plane networking. Optional riser configurations can enable full-height, half-length Gen5 slots for accelerator-class cards where required by the node profile.

Why Choose the H223-Z10-AAP1 Gigabyte?

The H223-Z10-AAP1 Gigabyte delivers a density-to-performance profile optimized for cluster operators who need 3 independently managed servers in a single 2U footprint without sacrificing PCIe Gen5 expansion or NVMe serviceability. Redundant 1+1 hot-swap 80 PLUS Titanium power and layered chassis/node management simplify scalable rollouts, maintenance windows, and standardized node imaging across sites.

Gigabyte applies a pragmatic data center engineering approach focused on predictable thermals, standardized remote management, and component validation for 24/7 operation, aligning the H223-Z10-AAP1 Gigabyte with modern rack integration, IPMI-based lifecycle control, and modular network/IO strategies.

Key Applications:

Multi-access edge compute (MEC) clusters
Distributed virtualization and container platforms
Software-defined storage with NVMe tiers
Database and cloud infrastructure nodes
High-density Gen5 expansion for cluster accelerators

At Happyware - Server Hardware you benefit from non-binding offers tailored to your H223-Z10-AAP1 Gigabyte rollout and an extended warranty of up to 6 years to strengthen long-term platform standardization and operational security.

Technical details of H223-Z10-AAP1 Gigabyte

Type:

Rack

Suitability:

Server

CPU Socket:

SP5 (LGA 6096)

CPU Family:

EPYC

Supported CPU Manufacturer:

AMD

Supported CPU Type:

EPYC 9004 EPYC 9005

Supported CPU Generation:

4th 5th

Supported CPU Codename:

Genoa Turin

Nodes:

RAM Type:

RDIMM

RAM Max. Total:

3TB

RAM Slots Total:

ECC Support:

ECC

Bays:

2x E1.S HotSwap NVMe

Hot-Swap:

Yes

PCIe:

1x PCIe 5.0 x16 (x16 mode)

Expansion Slots:

1x PCIe 5.0 x16 Low-Profile 1x PCIe 5.0 x16 Full-Height Half-Length

Front I/O Ports:

VGA System status LED CMC status LED Power button with LED CMC port UID LED USB

IPMI / BMC integrated:

Yes

Chipset:

System-on-Chip (SoC)

Power Supply Wattage:

3000W

Redundant Power Supply:

Yes

Number of Power Supplies:

80 Plus Certificate:

80 Plus Titanium

Quantity of Cooler:

Performance Class:

Enterprise-Class

TDP (Thermal Design Power):

300W

Applications:

Cloud Computing Edge Nodes Edge Computing Cluster Nodes Multi-Access Edge Computing (MEC) Enterprise

Onboard CPU:

Onboard Graphic:

Aspeed AST2600

Graphics Manufacturer:

ASpeed

Pre-installed Software:

ASPEED AST2600 Baseboard Management Controller (BMC) ASPEED AST2520 Chassis Management Controller (CMC) GIGABYTE Management Console web interface

Certificates:

80 Plus Titanium

Chassis Intrusion:

OS:

Citrix Hypervisor (formerly XenServer) Red Hat Enterprise Linux SUSE Linux Enterprise Server Ubuntu VMware ESXi Windows Server

Operating Temperature:

10°C to 35°C

Non Operating Temperature:

-40°C to 60°C

Operating Relative Humidity:

8°C to 80°C

Non-operating Relative Humidity:

20°C to 95°C

How long is the Warranty and how you can get technical support for H223-Z10-AAP1 Gigabyte

Warranty:	36 months (part)
RMA Url:	https://www.gigabyte.com/Support/Consumer/Warranty
Description:	Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard.
