GV-N1030D5-2GL

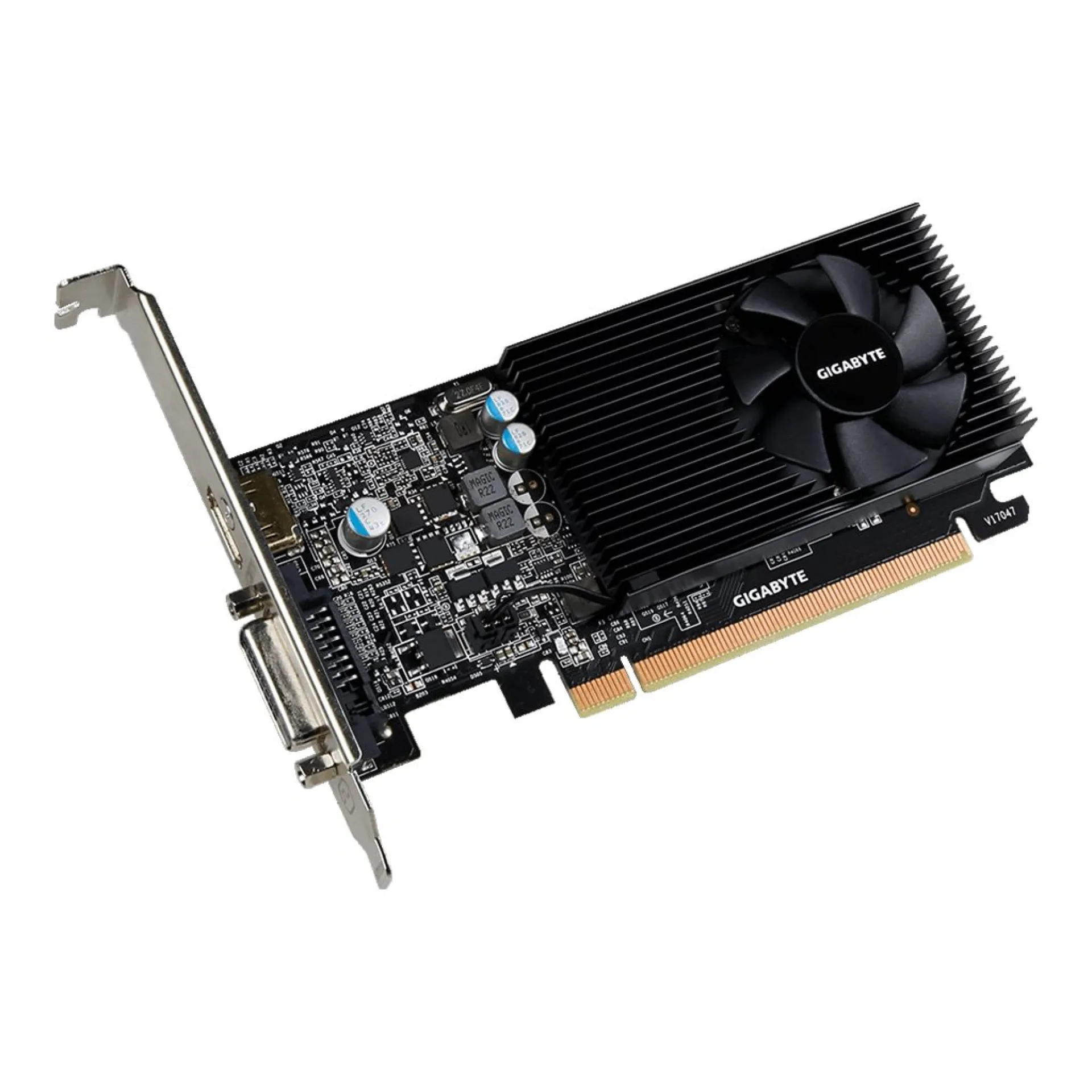

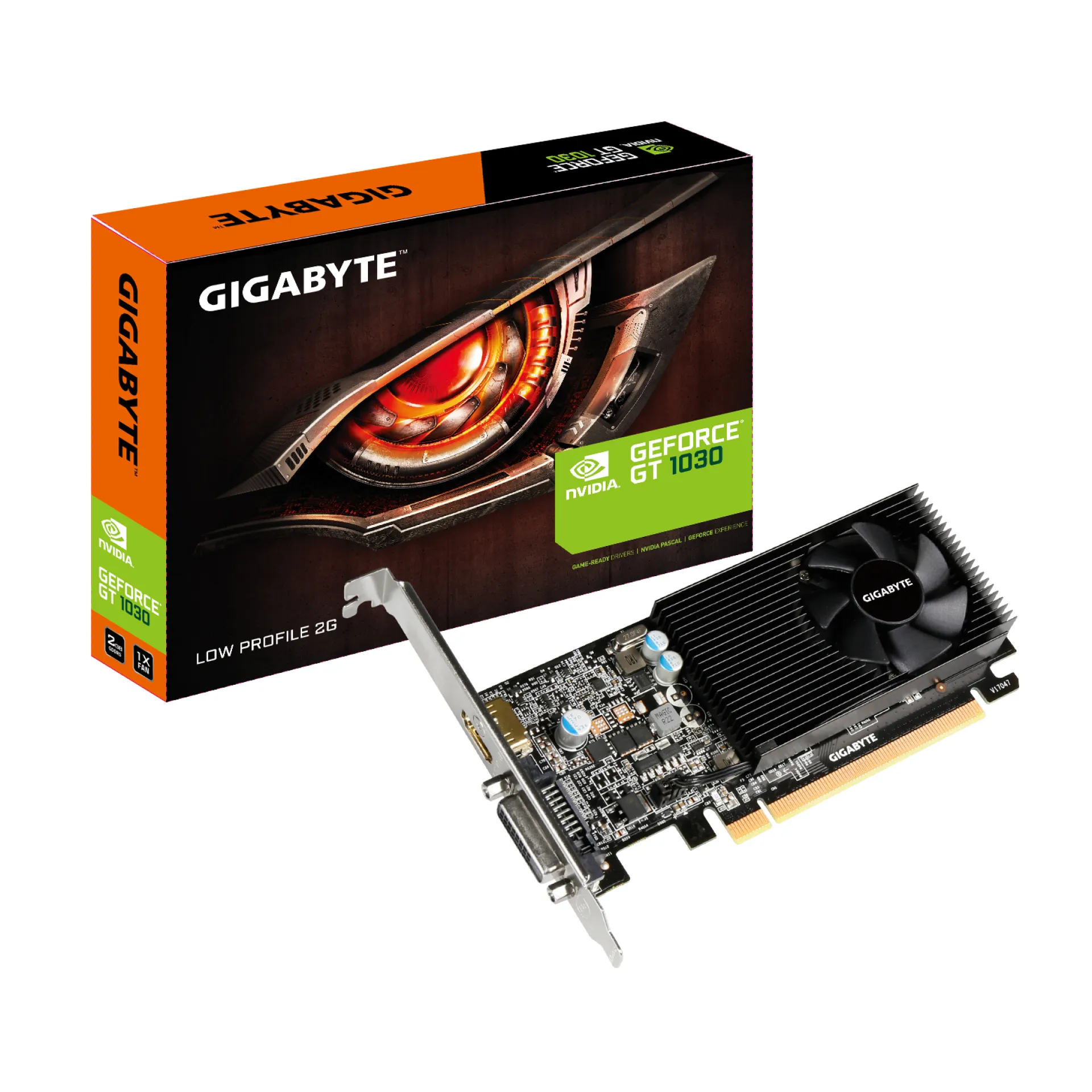

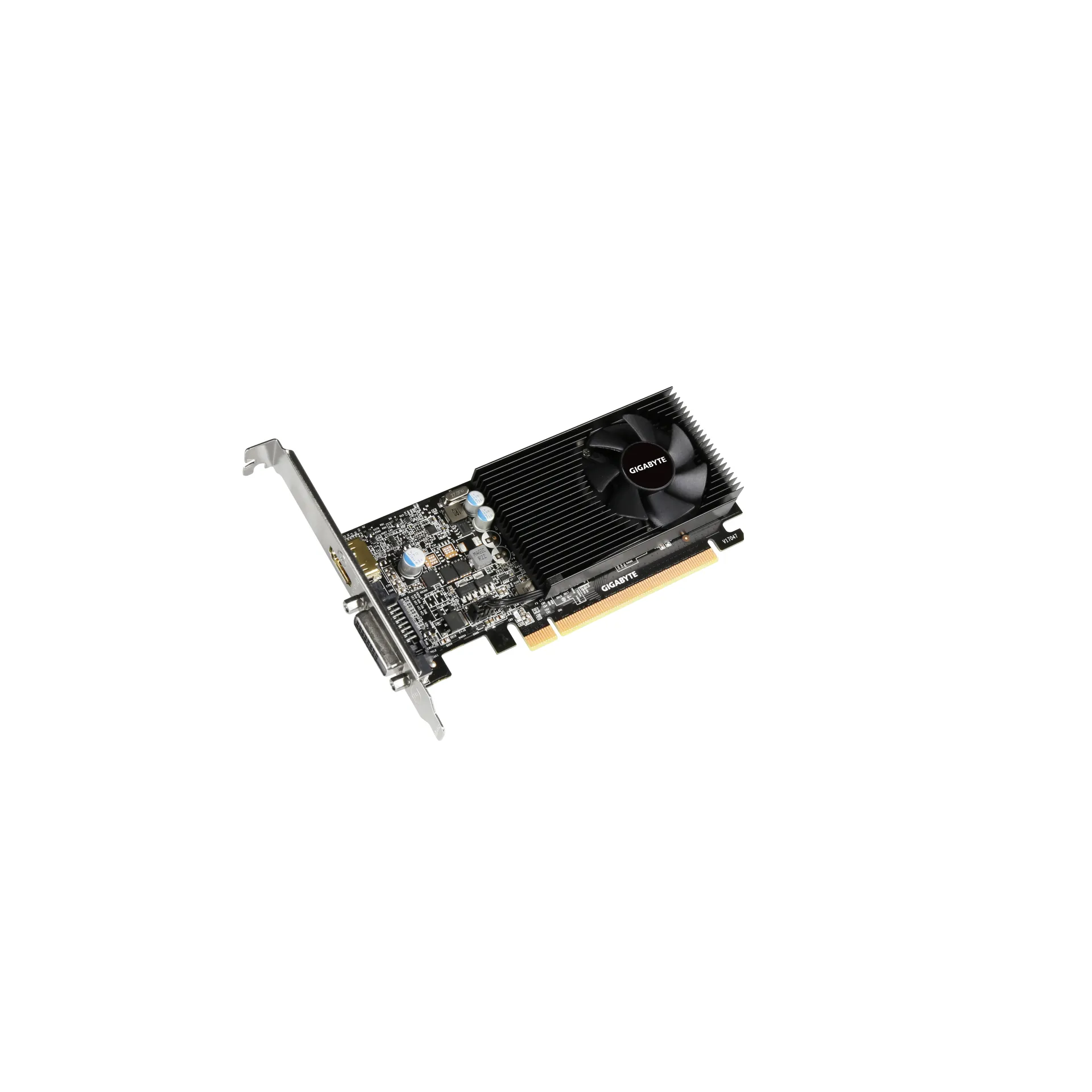

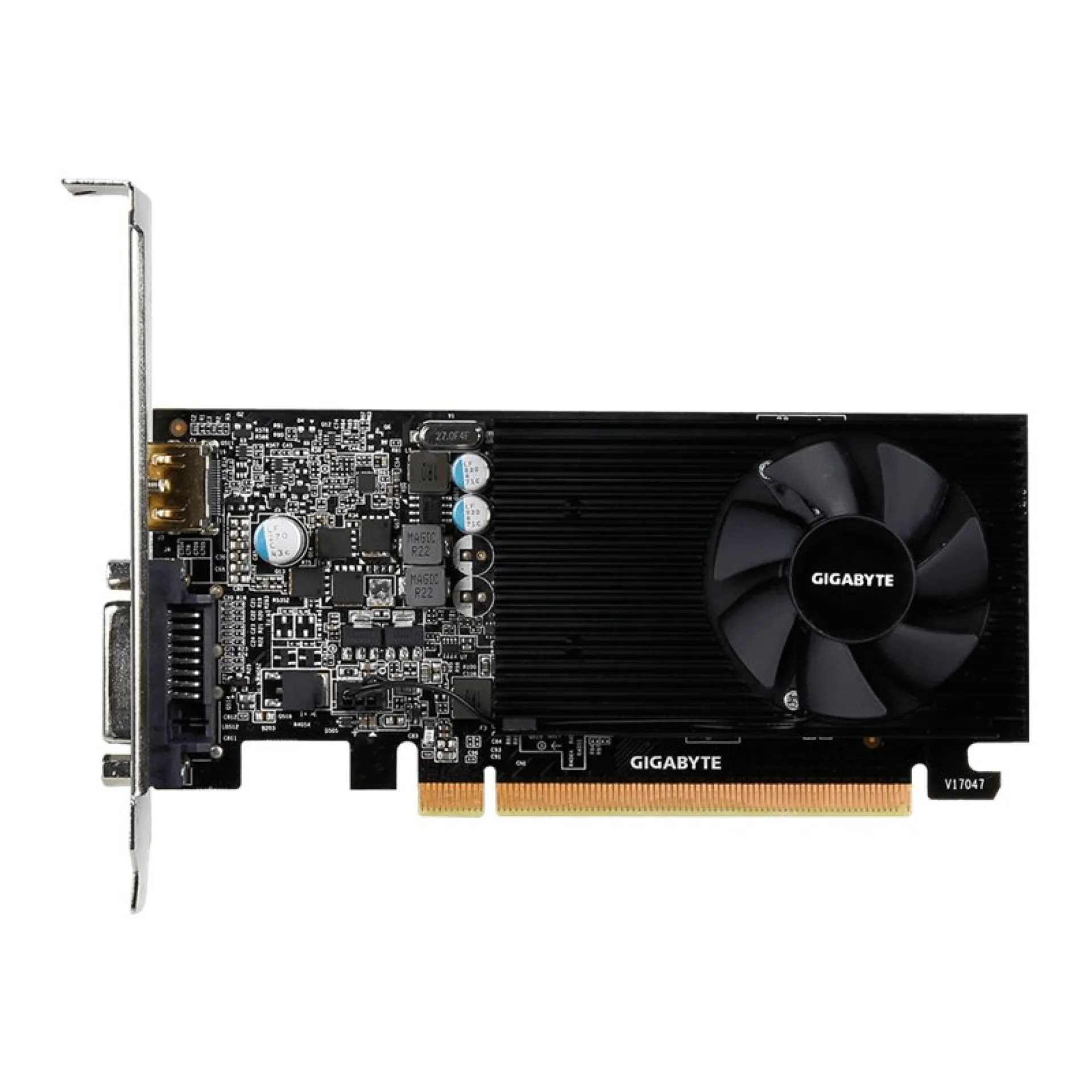

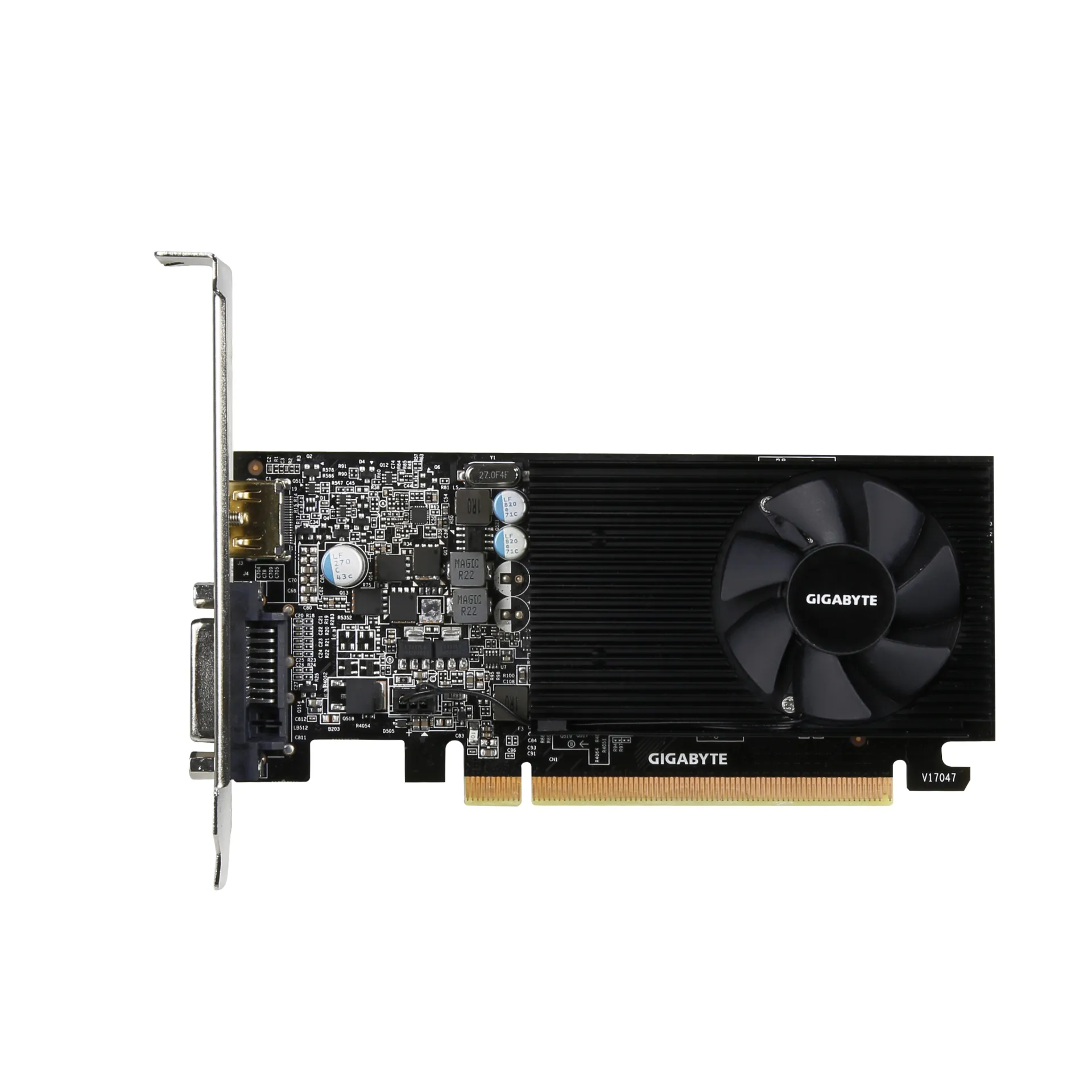

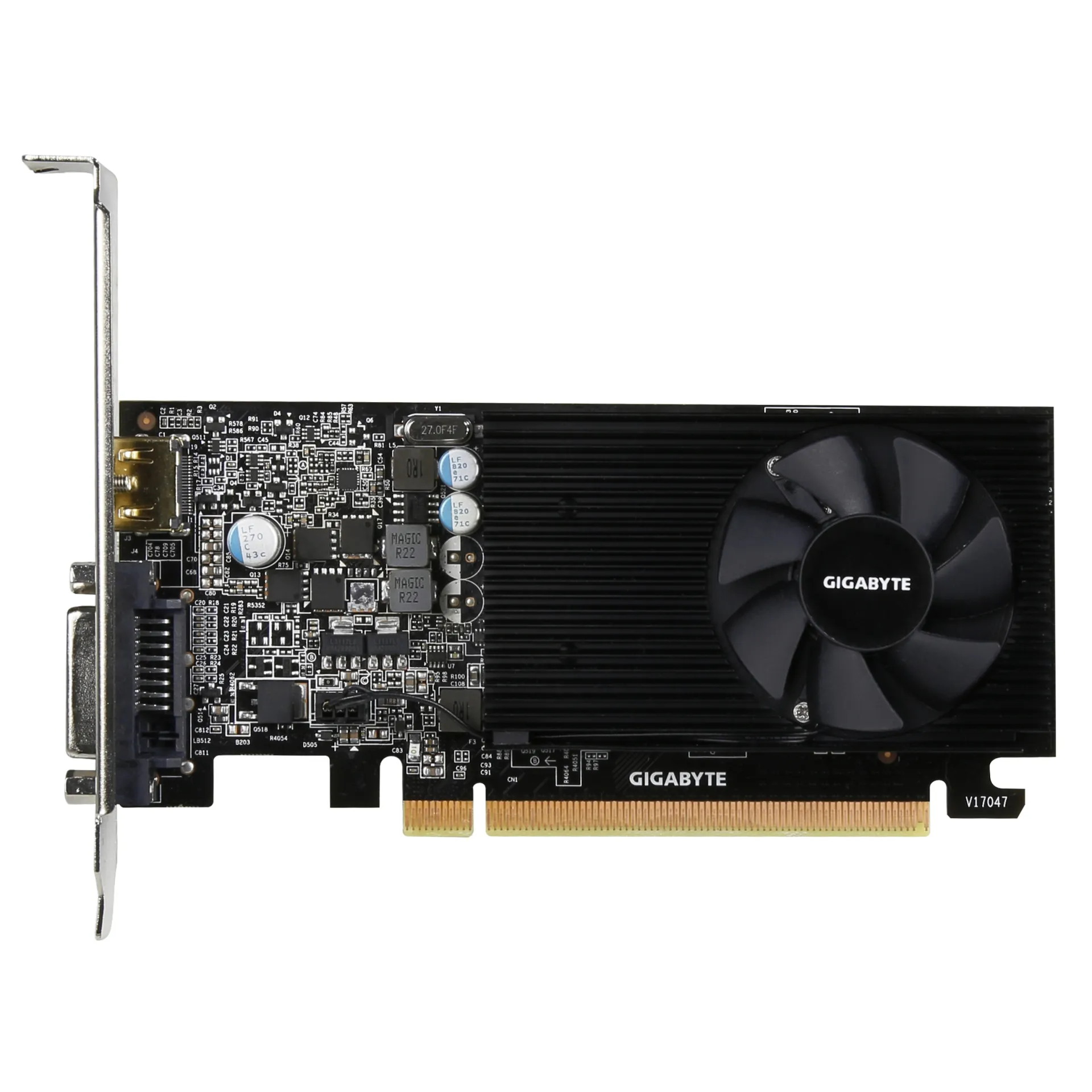

Low-Profile Single-Slot PCIe Graphics Accelerator for SFF and Edge Deployments with the GV-N1030D5-2GL

The GV-N1030D5-2GL is a low-profile, single-slot PCIe add-in GPU designed for compact client endpoints, edge systems, and display/VDI nodes that require deterministic graphics output within tight thermal and power envelopes. Built on NVIDIA GeForce GT 1030 (Pascal, 14nm), it provides 384 CUDA cores for light parallel acceleration where CPU-only execution is inefficient but higher-power GPUs are impractical.

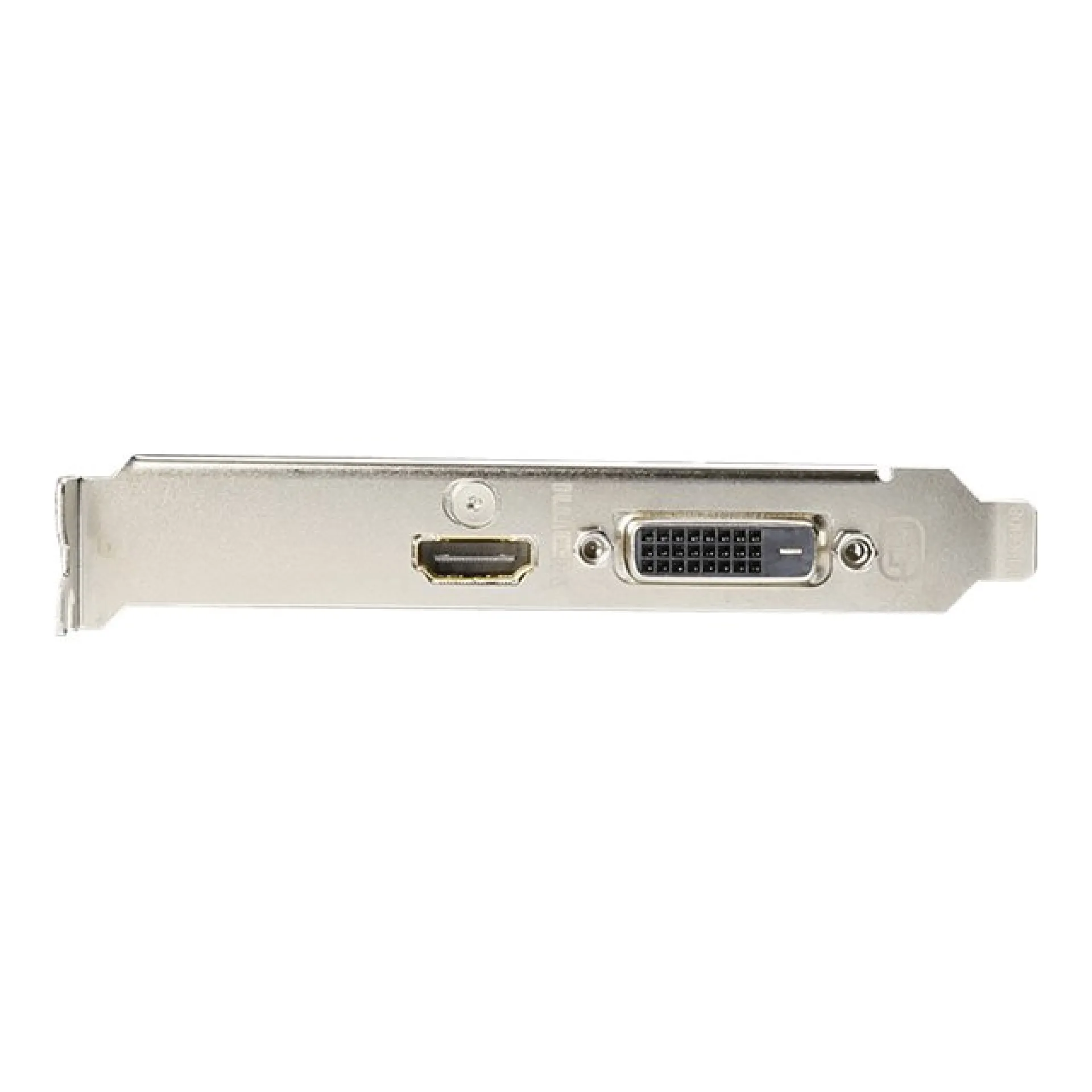

With 2GB GDDR5 on a 64-bit interface, the GV-N1030D5-2GL targets predictable frame buffers and modest CUDA/OpenCL kernels rather than large datasets. The card uses a PCIe 3.0 x16 physical connector operating at x4 electrical, aligning well with platforms that reserve full-bandwidth lanes for storage and networking. This lane-efficient profile supports balanced expansion in dense nodes, while HDMI 2.0 and DVI-D outputs enable dual-display configurations up to DCI 4K, suitable for operator consoles and compact workstations. A 30W TDP and axial fan cooling simplify integration into SFF chassis with constrained airflow.

Why Choose the GV-N1030D5-2GL?

The GV-N1030D5-2GL offers a pragmatic density-to-capability ratio for organizations standardizing low-profile PCIe graphics across heterogeneous fleets. It delivers consistent display connectivity, modern API support (DirectX 12, Vulkan 1.3, OpenGL 4.5), and straightforward scalability for multi-node rollouts without imposing significant PSU or thermal redesign. For deployments that do not require Tensor cores, VR features, or multi-GPU linking, the GV-N1030D5-2GL focuses budget and power on essential acceleration.

Gigabyte applies disciplined board engineering, component validation, and mechanical fitment control to ensure dependable operation in enterprise desktops and edge enclosures, aligning with current platform standards for PCIe compatibility and HDCP-enabled display pipelines.

Key Applications:

VDI and multi-monitor display nodes
Edge and embedded graphics acceleration
Digital signage and 4K playback endpoints
Light CUDA/OpenCL compute tasks

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout and configuration requirements, and you can secure planning-friendly bulk order discount options for standardized deployments of the GV-N1030D5-2GL across sites.

Technical details of GV-N1030D5-2GL

GPU Model: GeForce GT 1030

Series: GeForce 10 series

Memory Size: 2GB

Stream/CUDA Processors: 384

Memory Type: GDDR5

Memory Bandwidth: 48GT/s

Base Clock: 1227MHz

Boost Clock: 1506MHz

FLOPS: 1.16 TFLOPS (FP32)

GPU slot width: Single Slot

Architecture: Pascal

Form Factor: Low-Profile

Resolution: DCI 4K (4096x2160)

Memory Interface: 64-bit

Chipset Manufacturer: NVIDIA

Manufacturing Process: 14nm

How long is the Warranty and how you can get technical support for GV-N1030D5-2GL

Warranty:	36 months (part)
RMA Url:	https://www.gigabyte.com/Support/Consumer/Warranty
Description:	Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard.
