G494-SB1-AAP2 Gigabyte
High-Density 4U GPU Server Barebone for PCIe Gen5 Accelerator Scaling with G494-SB1-AAP2 Gigabyte
The G494-SB1-AAP2 Gigabyte platform is a 4U rack barebone engineered for GPU-dense AI and HPC clusters, combining dual Intel Xeon 6 (Granite Rapids/Sierra Forest) processors with a PCIe Gen5 topology optimized for multi-accelerator bandwidth and deterministic I/O. With up to 350W TDP per CPU, the node targets sustained compute throughput where CPU core density, PCIe lane availability, and memory capacity must scale in balance.

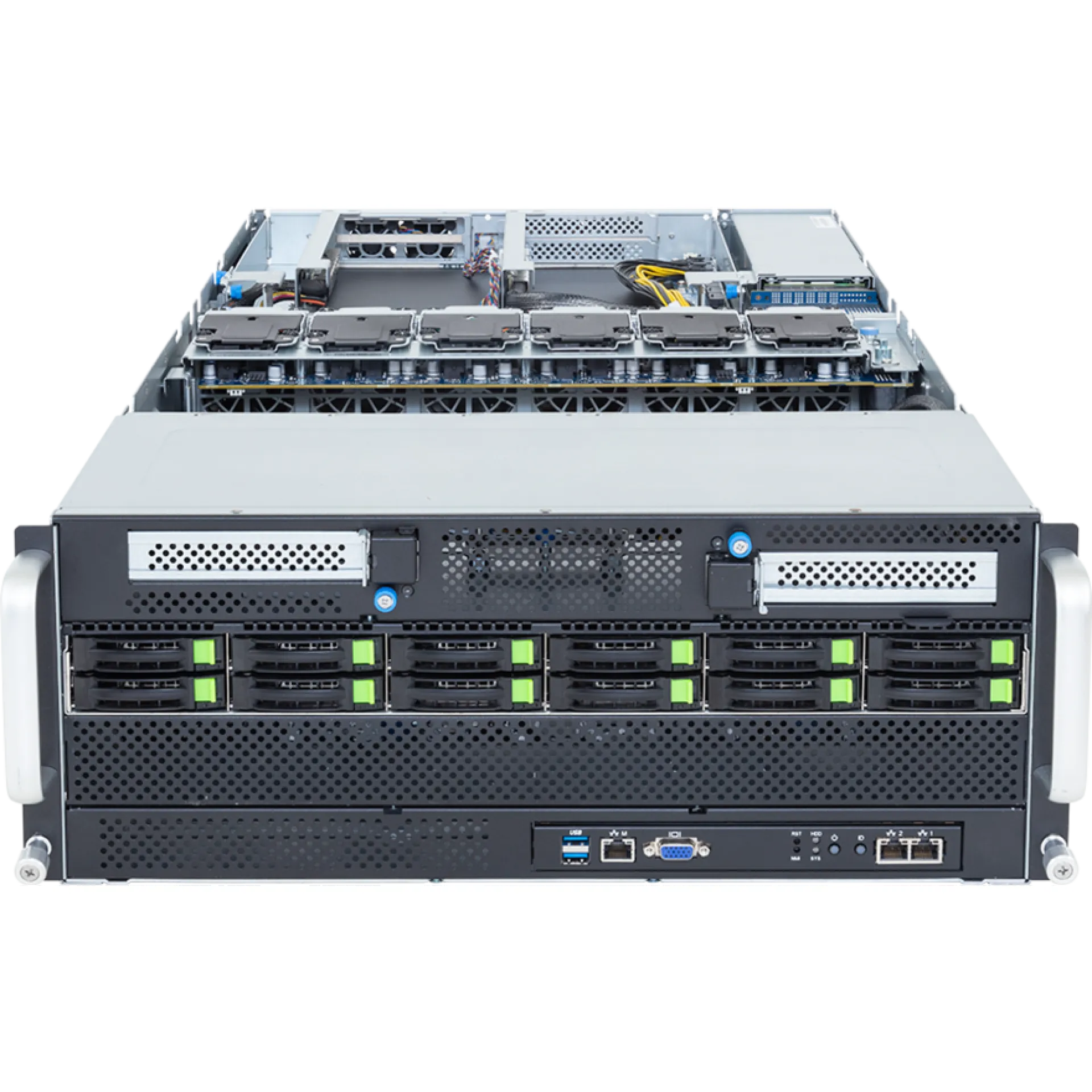

Memory architecture is built around 8-channel DDR5 per CPU across 32 DIMM slots with ECC RDIMM/MRDIMM support, enabling large in-memory datasets and high concurrency with up to 8TB maximum capacity. For expansion, the G494-SB1-AAP2 Gigabyte design provides 10 FHFL x16 Gen5 slots for GPU-class accelerators plus 2 FHHL x16 Gen5 slots for fabric, storage, or additional I/O. Front storage delivers 12 hot-swap 2.5in bays supporting NVMe Gen5 for low-latency training data, checkpoints, and scratch space, with SATA/SAS-4 enabled through a storage add-in card and RAID/VROC options for policy-driven resiliency.
Why Choose the G494-SB1-AAP2 Gigabyte?
The G494-SB1-AAP2 Gigabyte node delivers a strong density-to-performance ratio by aligning dual-socket Xeon 6 compute, DDR5 bandwidth, and a GPU-capable PCIe Gen5 slot layout in a serviceable 4U footprint. Redundant 80 PLUS Titanium power, hot-swap components, and remote manageability support scalable deployment patterns from pilot pods to production racks while maintaining operational consistency.
Gigabyte focuses on server engineering that prioritizes predictable thermals, validated platform integration, and management features aligned to modern data centre standards, including BMC/IPMI remote operations and out-of-band control for efficient lifecycle management.
Key Applications:
- AI training with multi-GPU accelerator nodes
- Large-batch AI inference
- GPU-accelerated HPC simulation
- Visual computing and rendering
- High-speed NVMe data staging
At Happyware - Server Hardware you benefit from non-binding offers tailored to your configuration goals for the G494-SB1-AAP2 Gigabyte and can secure an extended warranty up to 6 years to protect long-term cluster investments.
Technical details of G494-SB1-AAP2 Gigabyte
How long is the Warranty and how you can get technical support for G494-SB1-AAP2 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
