G294-A23-AAP2 Gigabyte

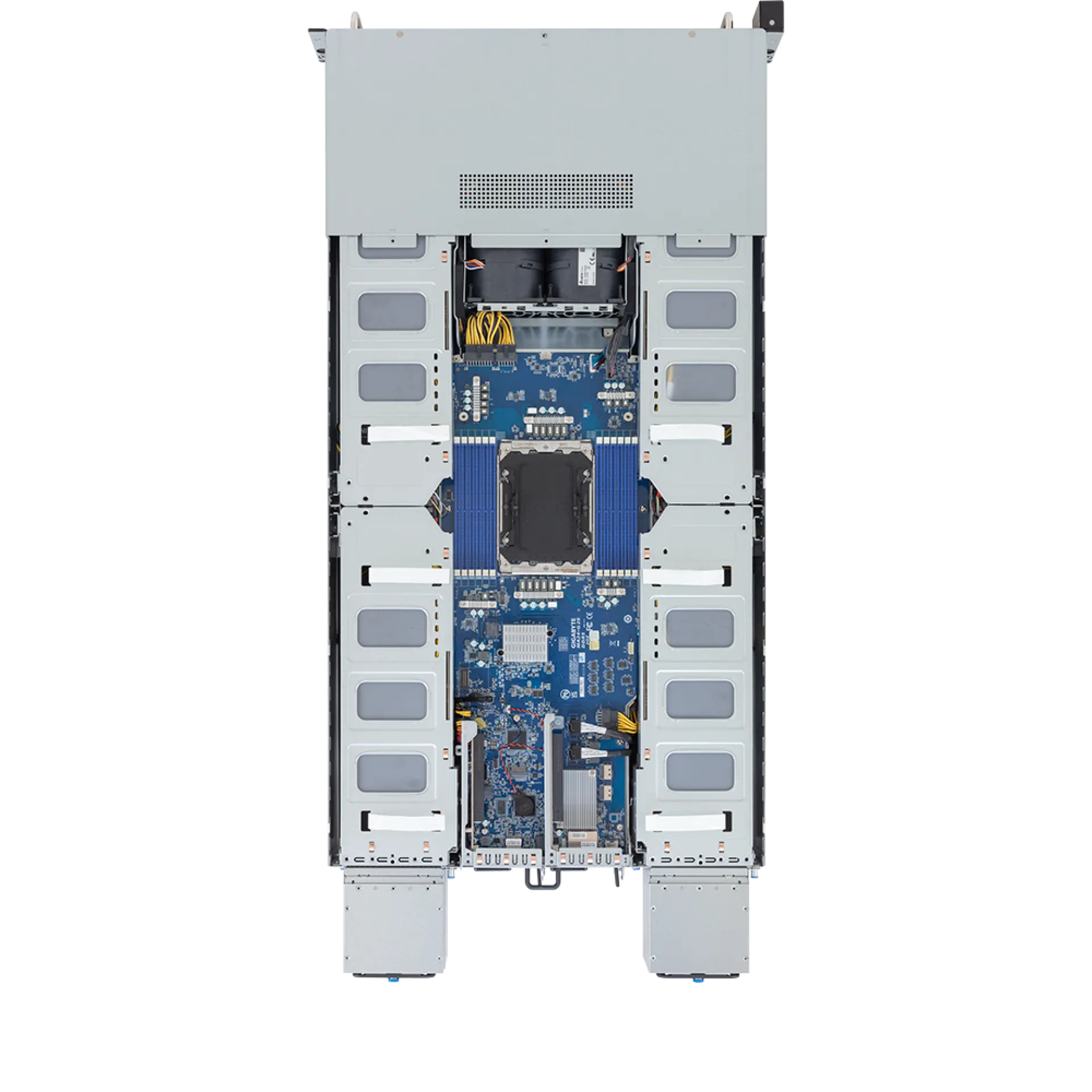

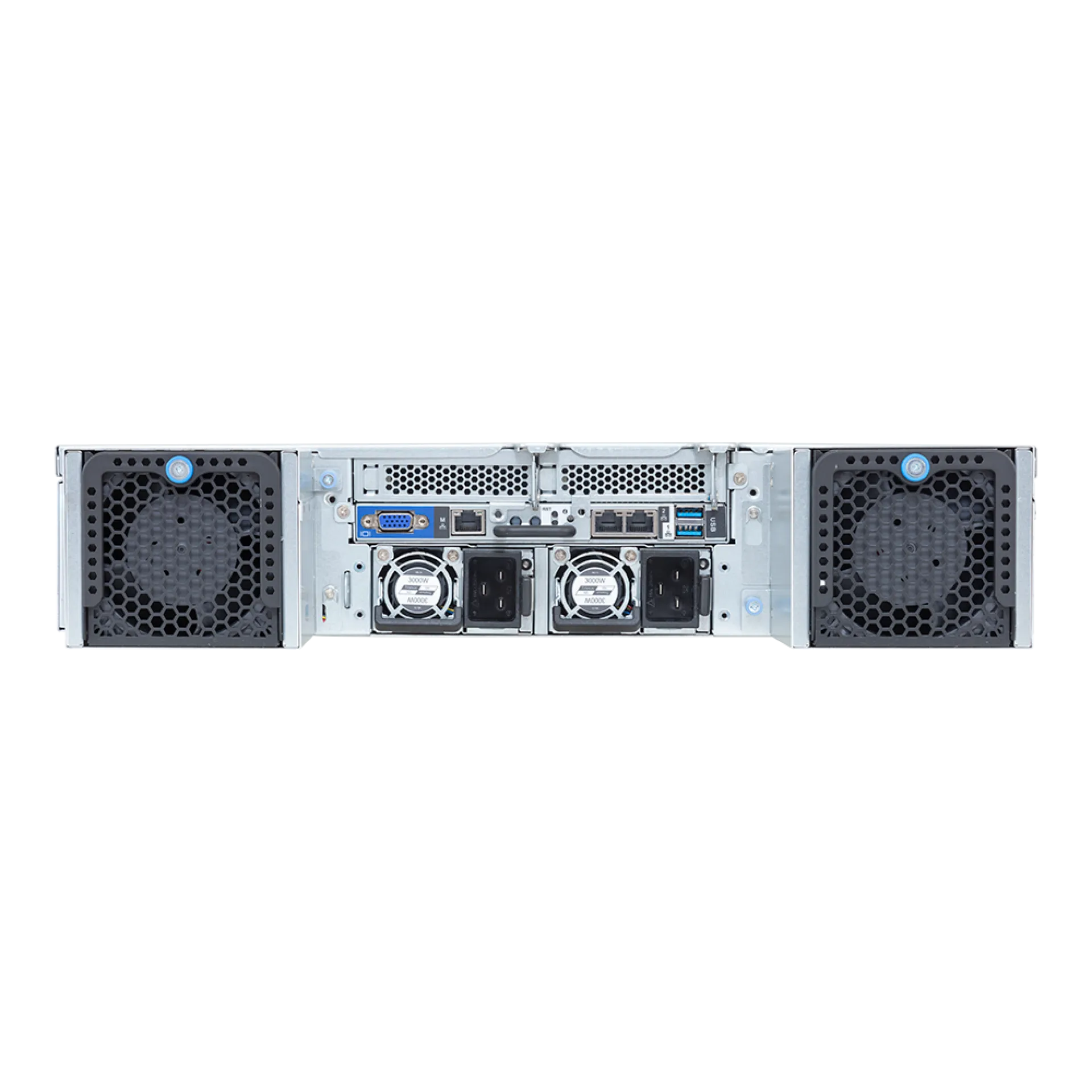

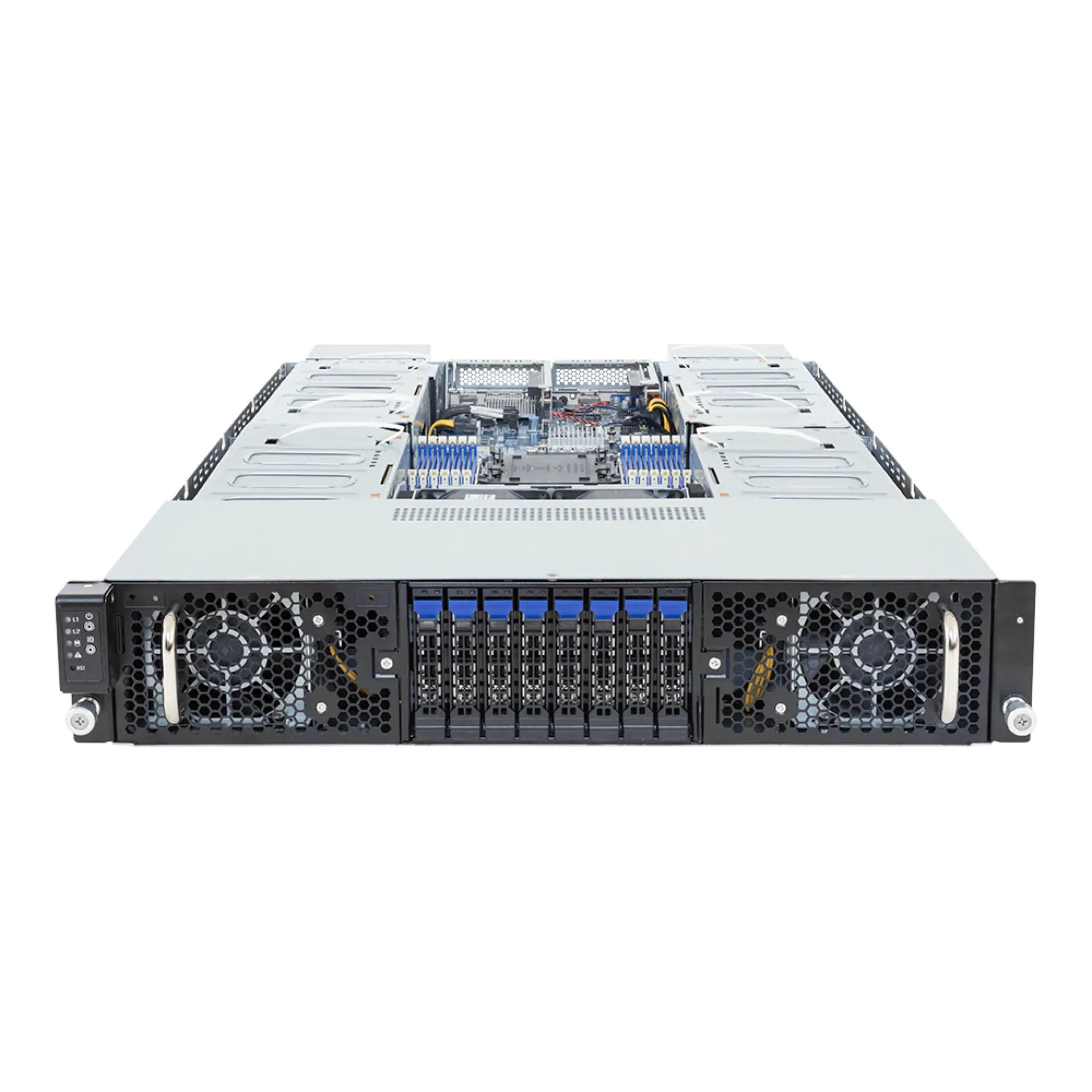

High-Density 2U PCIe Gen5 GPU Server Barebone with Intel Xeon 6 Platform in the G294-A23-AAP2 Gigabyte
The G294-A23-AAP2 Gigabyte is a 2U rack GPU server barebone engineered for PCIe Gen5 scale-up, pairing a single-socket Intel Xeon 6 (LGA7529, Granite Rapids / Sierra Forest) CPU domain with a high lane budget for accelerator-heavy deployments. This architecture targets environments where GPU count, deterministic I/O, and serviceability are prioritized over multi-socket complexity.
With 12-channel DDR5 ECC memory across 12 DIMM slots, the platform supports RDIMM/MRDIMM configurations and up to 3TB capacity, enabling balanced host-to-accelerator feeding and large model staging. The defining attribute of the G294-A23-AAP2 Gigabyte is expansion density: up to 16 PCIe 5.0 x16 FHFL slots via risers plus 2 additional PCIe 5.0 low-profile slots for I/O or fabric adapters. Front-access storage provides 8 hot-swap 2.5" bays for SATA, with SAS-4 (24Gb/s) available through an optional HBA, and optional cabling-dependent support for up to 2 Gen5 NVMe devices; dual M.2 2280 PCIe Gen4 x4 sockets cover OS or cache tiers. Integrated networking includes dual 10GbE RJ45 (Intel X710-AT2 with NCSI) and a dedicated 1GbE management port.
Why Choose the G294-A23-AAP2 Gigabyte?
The G294-A23-AAP2 Gigabyte delivers a practical density-to-performance ratio for multi-GPU AI training, inference consolidation, and HPC nodes requiring predictable PCIe Gen5 connectivity. Redundant 3000W Titanium PSUs, hot-swap drive access, and BMC-based remote operations support scalable fleet deployment with reduced hands-on intervention.
Gigabyte designs this G Series barebone with data centre maintainability in mind, combining validated server thermals, standards-aligned management via ASPEED AST2600 IPMI/remote KVM, and enterprise features such as add-in RAID support, Intel VROC header, and optional TPM 2.0 readiness.
Key Applications:
- AI training with multi-GPU PCIe Gen5 scale-up
- AI inference consolidation with local SSD tiers
- HPC accelerator nodes and high-throughput I/O
- Visual computing, rendering, and simulation
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment plan for the G294-A23-AAP2 Gigabyte and from extended warranty options up to 6 years to secure long lifecycle operation in production clusters.
Technical details of G294-A23-AAP2 Gigabyte
How long is the Warranty and how you can get technical support for G294-A23-AAP2 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
