G293-S40-AAP1 Gigabyte Dual Xeon Scalable 4th Gen 2U 6NG293S40DR000ABP1 Server Barebone
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
Gigabyte G Series
Do you have questions about this product 6NG293S40DR000ABP1?
G293-S40-AAP1 Gigabyte
High-Density 2U GPU Compute Server Architecture with the G293-S40-AAP1 Gigabyte for Intel Xeon and 8x PCIe GPU Scaling

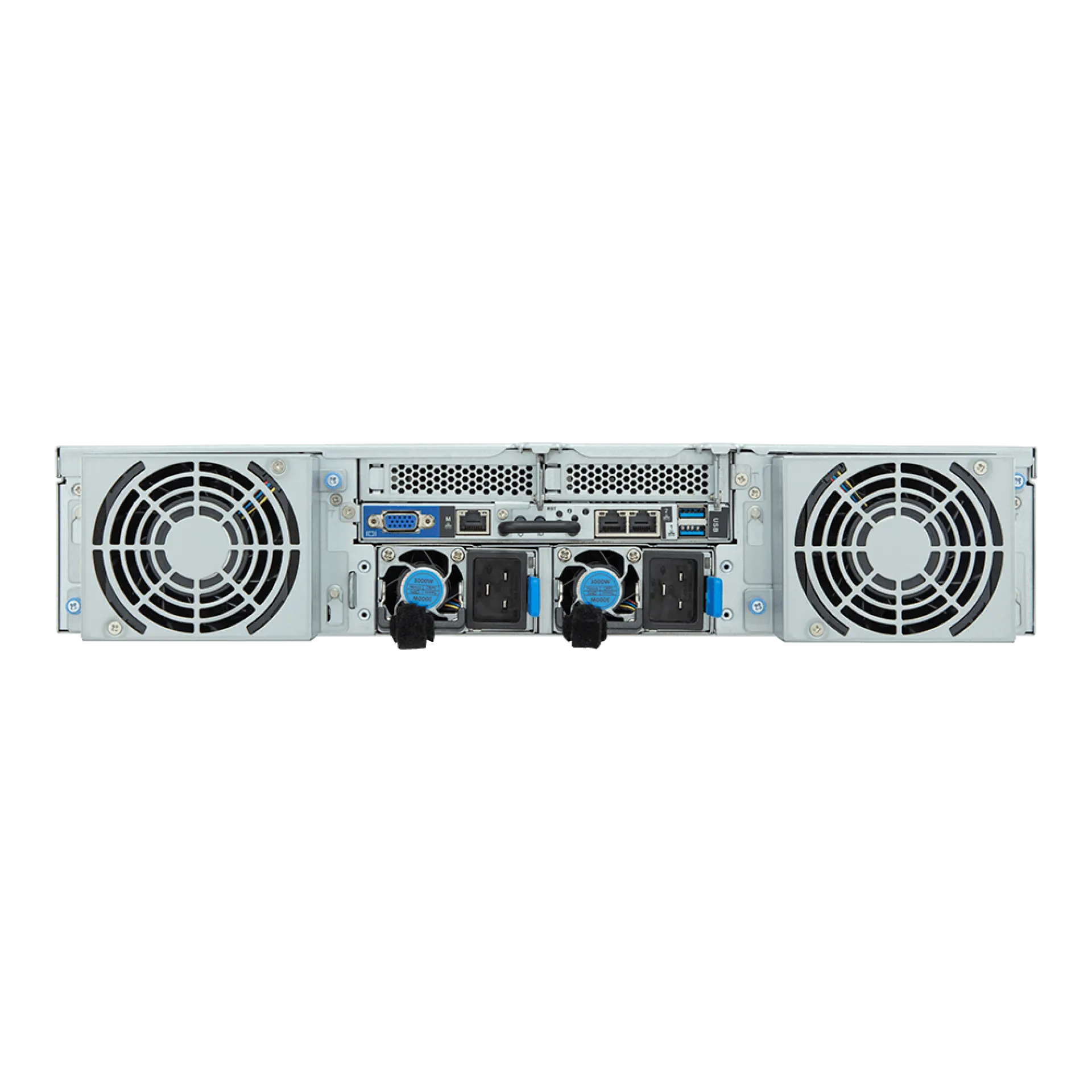

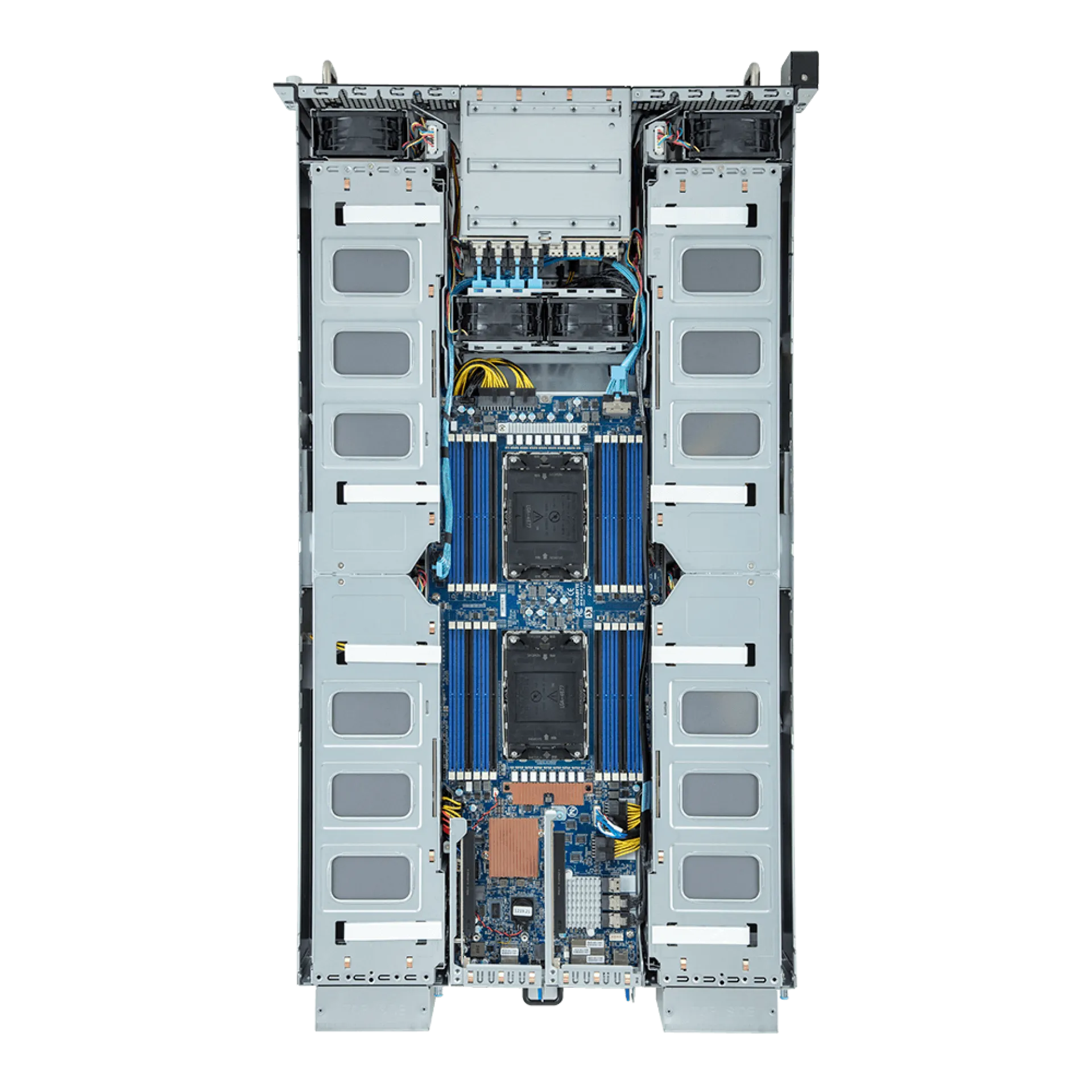

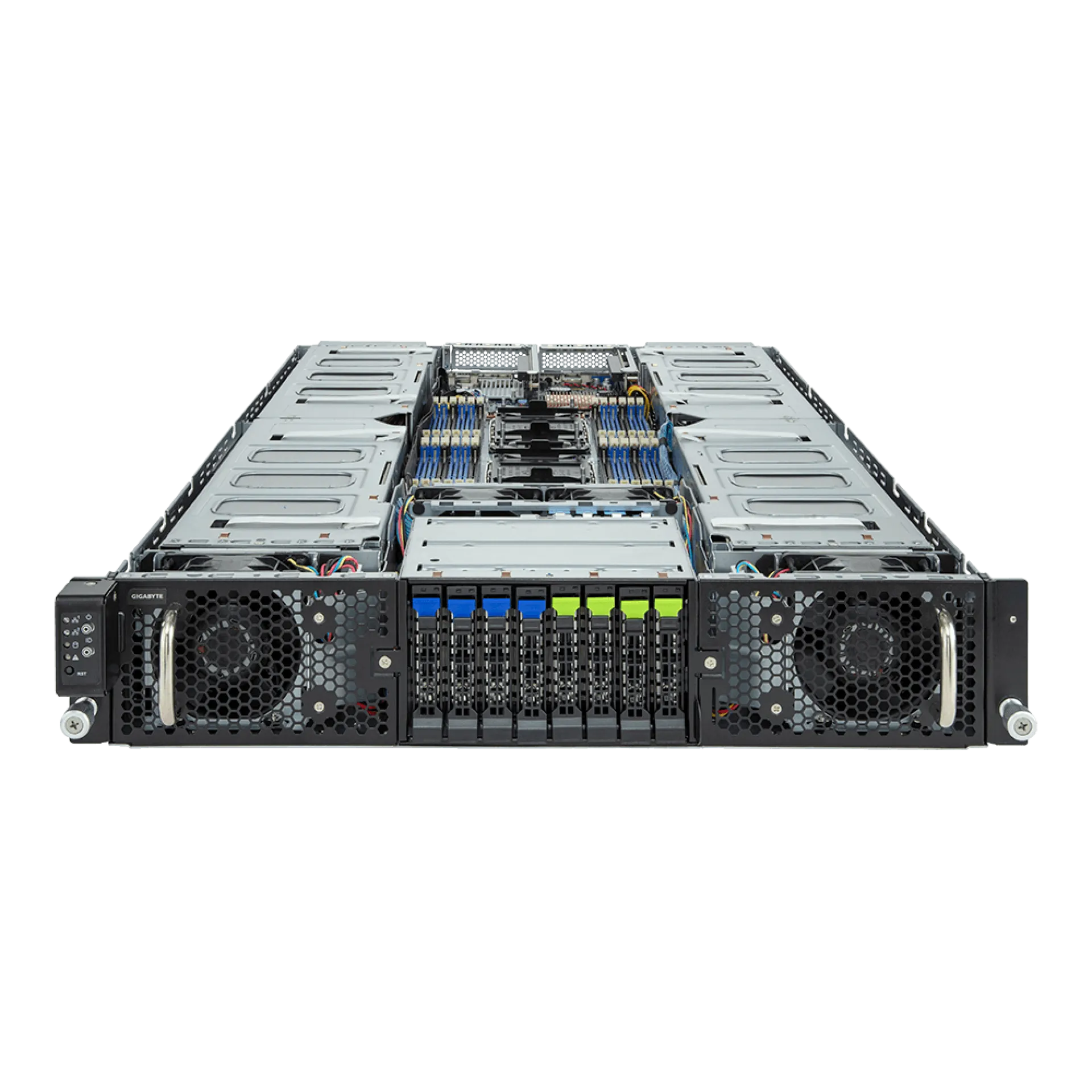

The G293-S40-AAP1 Gigabyte barebone (SKU: 6NG293S40DR000ABP1) is a 2U short-depth 800mm rack GPU server designed for dual-socket LGA4677 Intel C741 platforms, enabling 4th/5th Gen Intel Xeon Scalable processors up to 225W and high core density for accelerator-led workloads. The G293-S40-AAP1 Gigabyte balances CPU throughput and GPU attachment to support AI/ML training and inference, HPC simulation, and visual computing pipelines where predictable GPU topology and serviceability matter.
For memory-bound models and data-intensive compute, the G293-S40-AAP1 Gigabyte implements DDR5 RDIMM across 24 DIMM slots in an 8-channel architecture, scaling to 6TB to keep multi-GPU nodes fed. GPU expansion is delivered via 8 PCIe 4.0 x16 FHFL slots on a PCIe switch fabric, validated for uniform dual-slot GPU populations to maintain consistent thermals and driver behavior. Two additional PCIe 5.0 x16 low-profile slots provide headroom for high-speed networking or storage controllers. Storage is organized around 8 hot-swap 2.5-inch bays, mixing NVMe/SATA/SAS flexibility (SAS via add-in HBA/RAID), with Intel SATA RAID and VROC key header support.
Why Choose the G293-S40-AAP1 Gigabyte?
The G293-S40-AAP1 Gigabyte is engineered for enterprises that need maximum GPU density per rack unit without sacrificing manageability, power resiliency, or expansion discipline. Its topology-centric design simplifies scaling across clusters, while integrated 10GbE and dedicated management LAN streamline deployment in modern data centre fabrics.
Gigabyte applies data centre engineering practices focused on validated component interoperability, remote lifecycle control, and reliability at scale. With an AST2600 BMC supporting IPMI and remote KVM, plus redundant 80 PLUS Titanium power, the platform aligns with operational standards for secure, serviceable GPU fleets.
Key Applications:
- AI/ML training and inference
- GPU-accelerated HPC simulation
- Visual computing and rendering
- Virtualized GPU infrastructure
At Happyware - Server Hardware you benefit from non-binding offers tailored to your G293-S40-AAP1 Gigabyte configuration requirements and an extended warranty of up to 6 years to protect long-term GPU cluster investments.
Technical details of G293-S40-AAP1 Gigabyte
How long is the Warranty and how you can get technical support for G293-S40-AAP1 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
Customer reviews about G293-S40-AAP1 Gigabyte
Login
- Express shopping
- Save your data and settings
- Order overview and shipping information
- Manage your newsletter subscription
Similar/Alternative Products
ARS-221GL-NHIR Supermicro Advanced Reference System (ARS) Dual Grace (Arm) 2U Server
Out of stock
Complete System Only

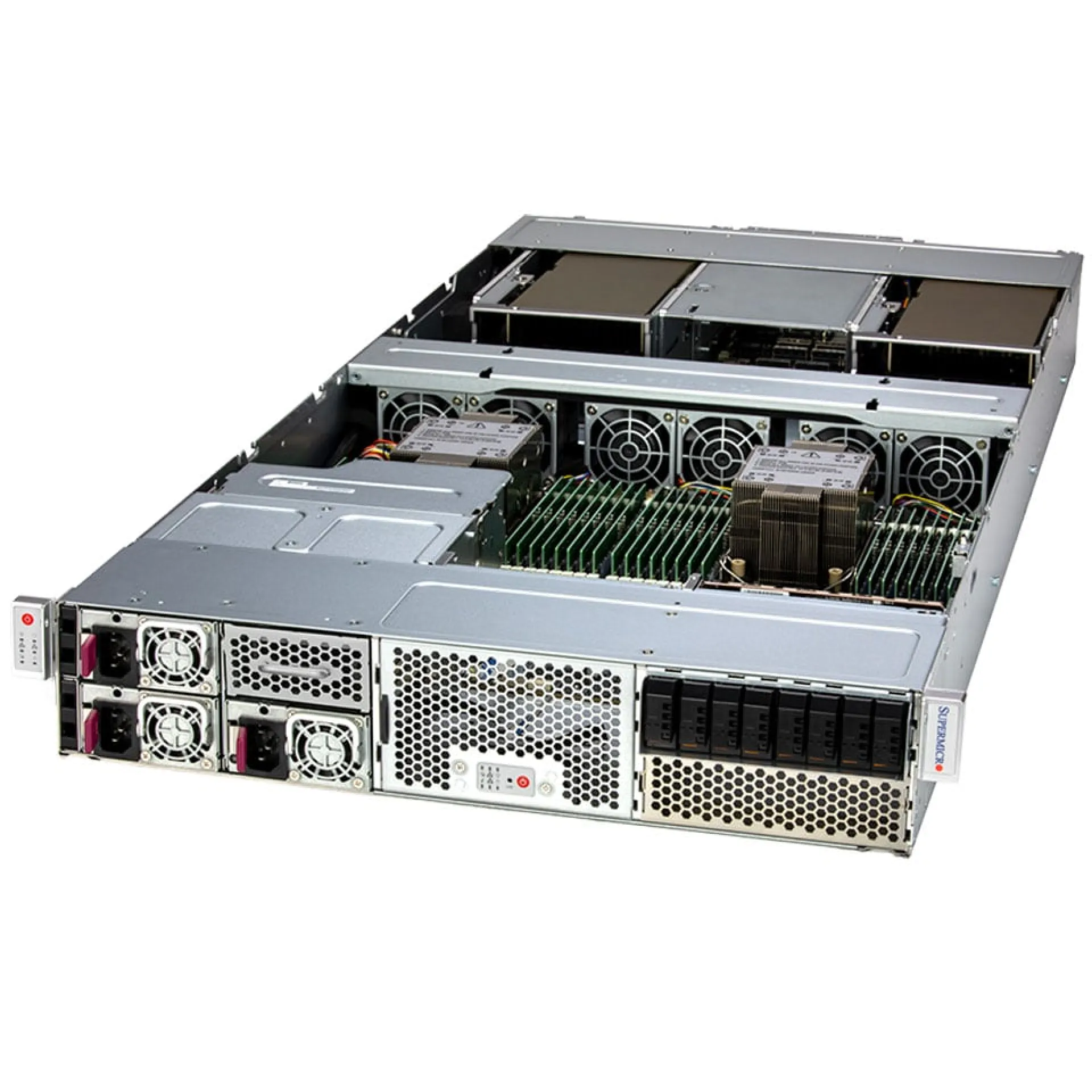

SYS-221GE-NR Supermicro SuperServer Dual Xeon Scalable 4th Gen 2U Server
