E164-S30-AAG1 Gigabyte

High-Density 1U Single-Socket Edge and Network Barebone with the E164-S30-AAG1 Gigabyte

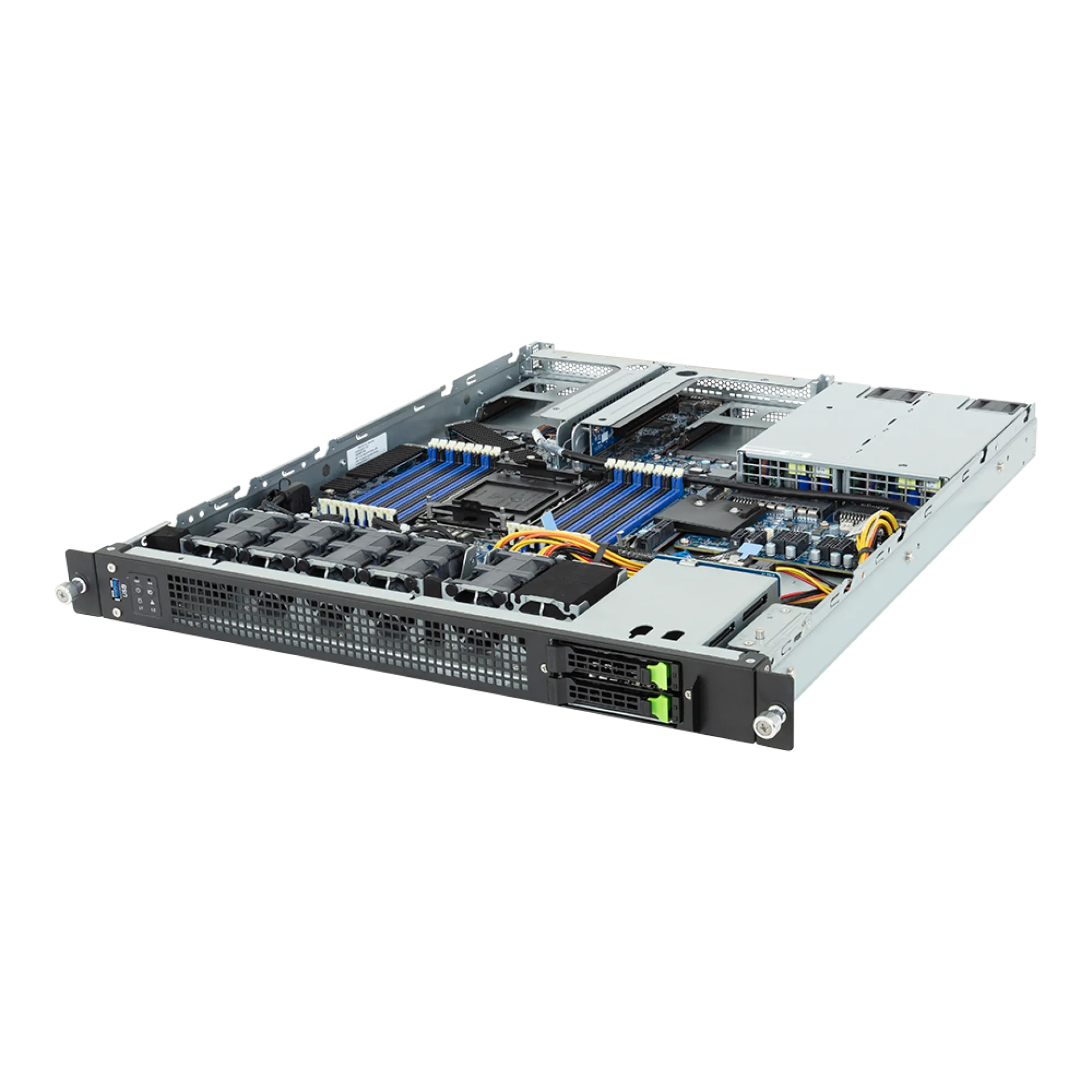

The E164-S30-AAG1 Gigabyte barebone is a compact 1U platform engineered for Intel Xeon 6 deployments where throughput per rack unit and deterministic I/O matter. It supports Xeon 6500/6700 P-core or Xeon 6 SoC options up to 350W, aligning the chassis for micro-edge compute, NFV hosting, and space-efficient private cloud nodes that require modern instruction sets and strong per-core performance.

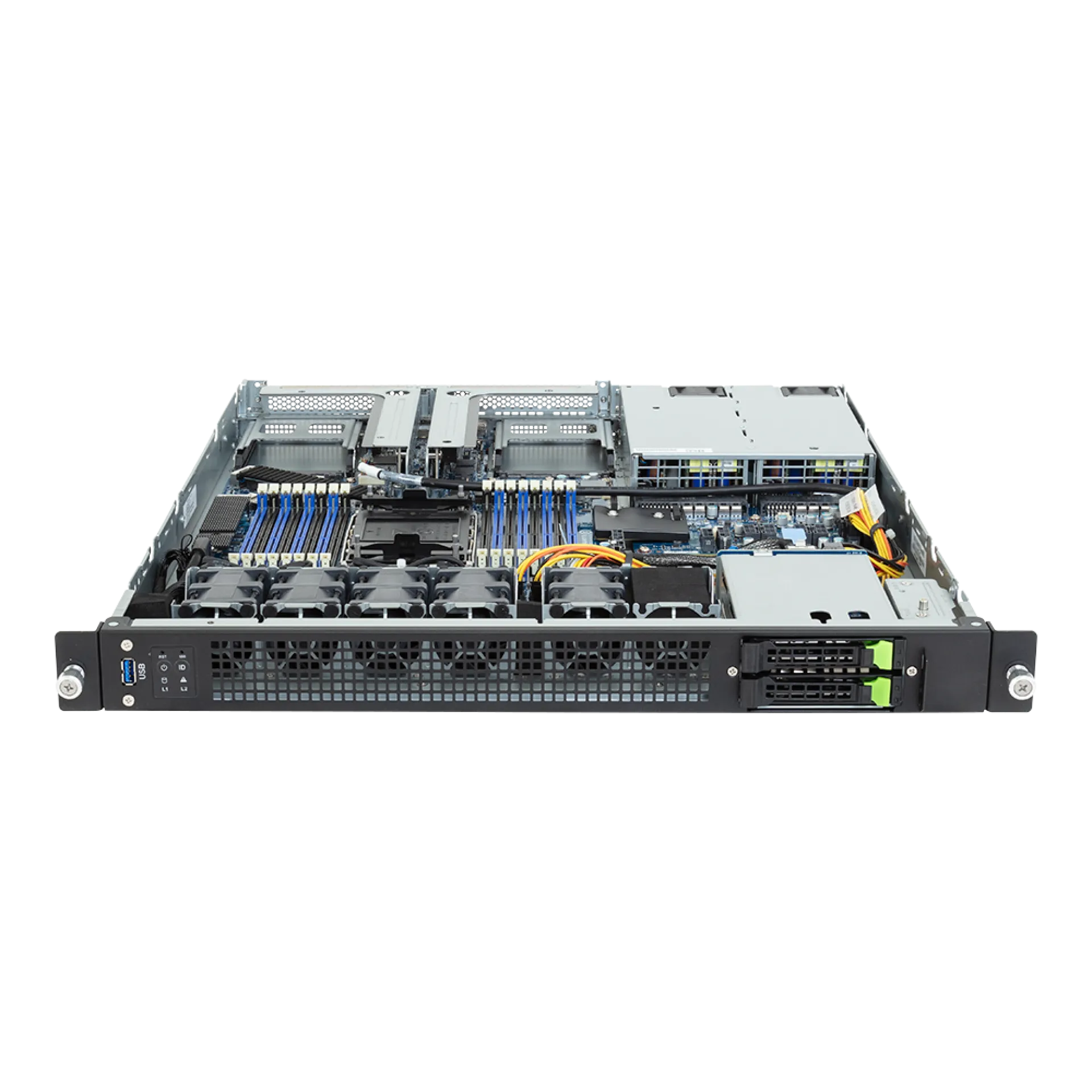

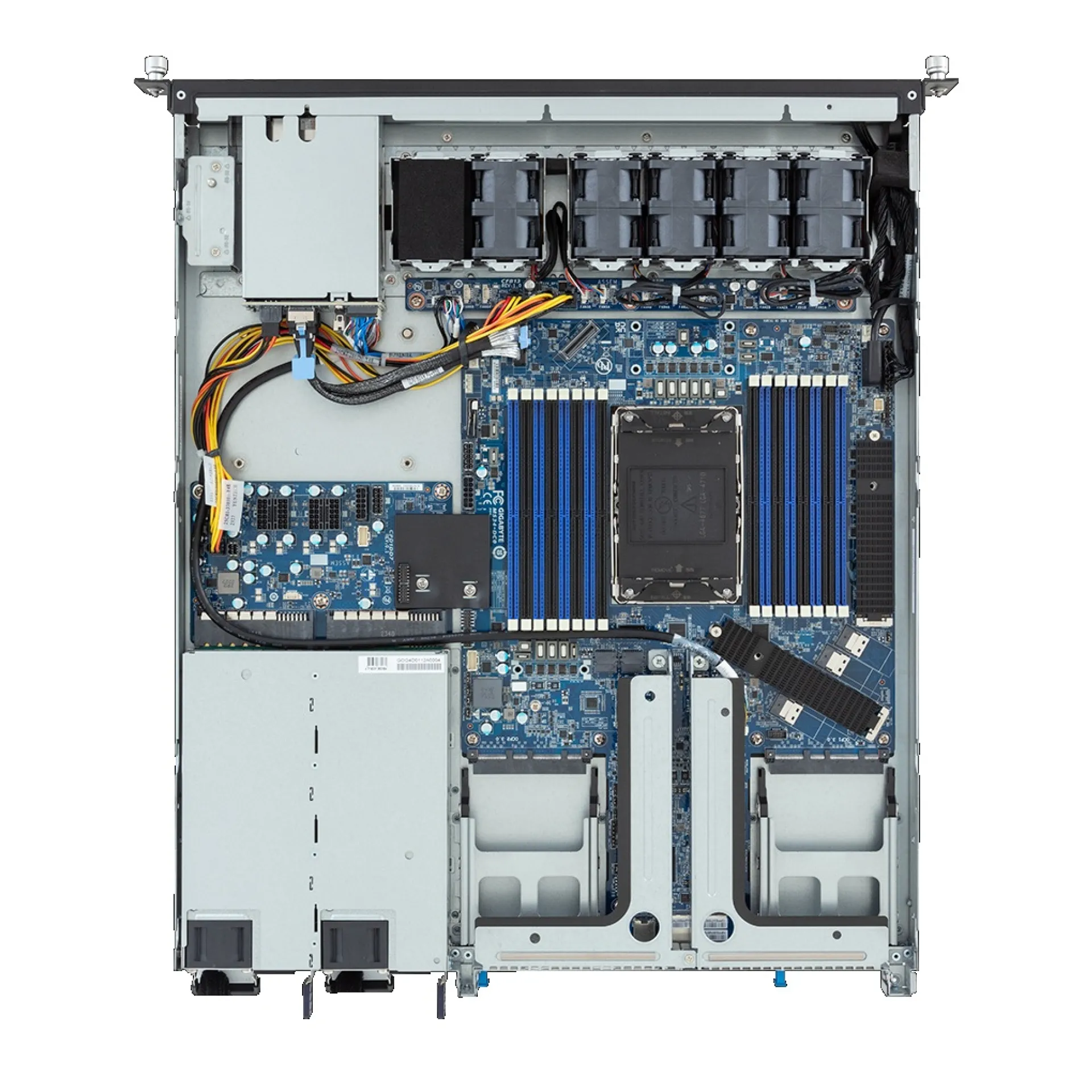

Memory architecture is optimized around 8-channel DDR5 ECC Registered with 16 DIMM slots supporting RDIMM/MRDIMM up to 4TB, enabling high consolidation ratios for virtualization and in-memory services. Expansion is built on PCIe Gen5: 2 FHHL x16 slots for accelerator-class cards and 2 OCP NIC 3.0 SFF bays (Gen5 x16) with NCSI for high-performance network function hosting. Storage is deliberately simple and fast: 2 front 2.5in hot-swap bays supporting NVMe Gen5 x4 or SATA/SAS-4 (with HBA), plus dual M.2 Gen5 for boot and local caching, keeping serviceability and latency predictable.

Why Choose the E164-S30-AAG1 Gigabyte?

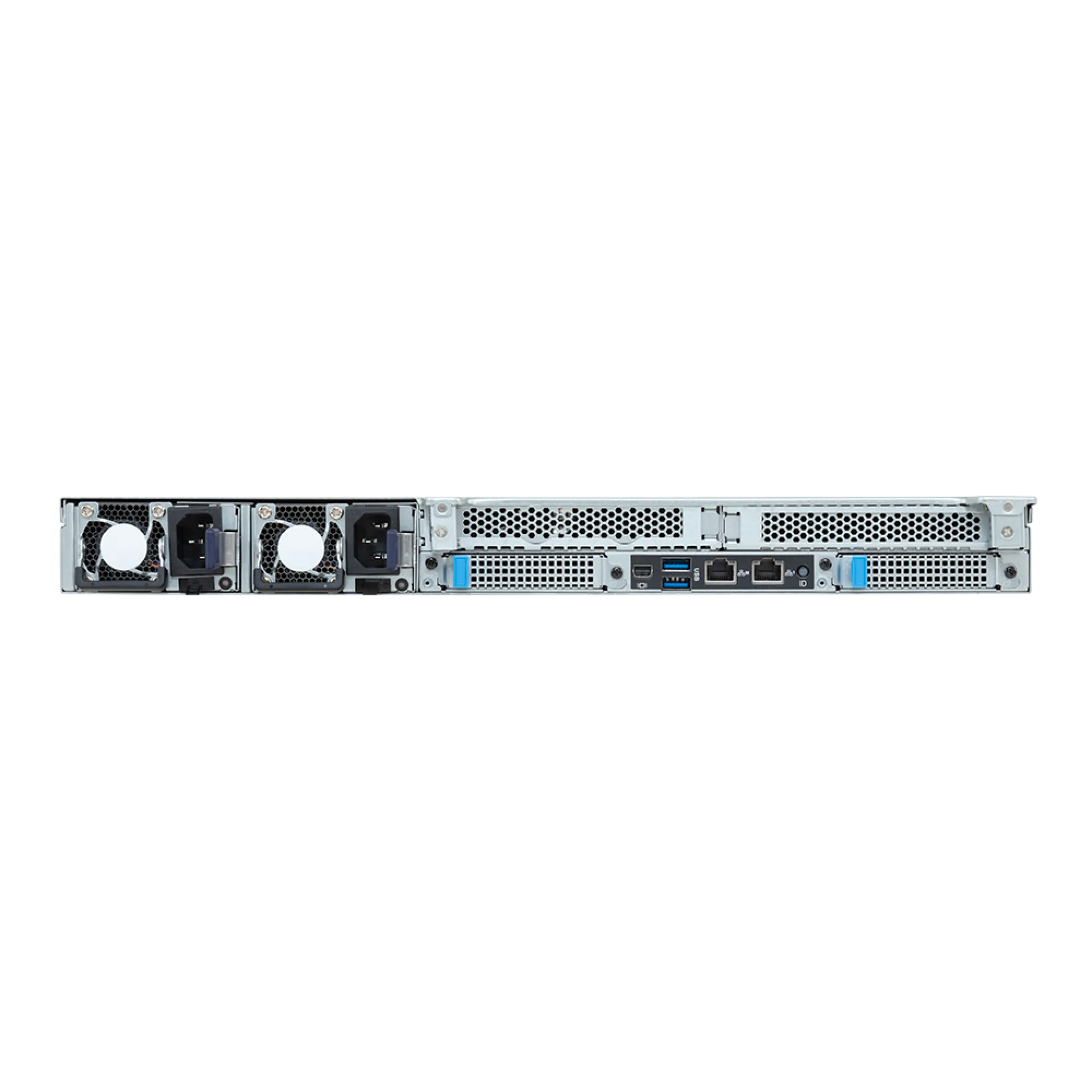

The E164-S30-AAG1 Gigabyte delivers an enterprise-ready density-to-performance profile by combining Xeon 6 compute, DDR5 bandwidth, and PCIe Gen5 I/O in a 1U footprint. With redundant 800W Titanium PSUs, hot-swap storage access, and OCP NIC modularity, it scales cleanly from single-node edge deployments to clustered racks with consistent management and network design.

Gigabyte applies data-centre-centric engineering with a focus on validated platform interoperability, serviceable mechanical design, and standards-aligned integration. The ASPEED AST2600 BMC with IPMI and remote KVM supports operational continuity, while options such as VROC header, add-in RAID, and TPM2.0 readiness help align the E164-S30-AAG1 Gigabyte to enterprise control requirements.

Key Applications:

Multi-access edge computing (MEC) nodes
NFV and network appliance hosting via OCP NIC 3.0
Compact private cloud virtualization
Branch and industrial micro-edge services

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your E164-S30-AAG1 Gigabyte rollout, helping you standardize configurations across edge and rack deployments. For long lifecycle planning, an extended warranty up to 6 years adds predictable coverage for mission-critical installations.

Technical details of E164-S30-AAG1 Gigabyte

Type:

Rack

Suitability:

Server

CPU Socket:

E2 (LGA 4710)

CPU Family:

Xeon 6

Supported CPU Manufacturer:

Intel

Supported CPU Type:

Xeon 6700 w/ P-cores Xeon 6500 w/ P-cores Xeon 6 SoC

Supported CPU Generation:

6th

Supported CPU Codename:

Sierra Forest Granite Rapids

Nodes:

RAM Type:

RDIMM MRDIMM

RAM Max. Total:

4TB

RAM Slots Total:

Memory Slots:

ECC:

ECC

Bays:

2x 2.5" HotSwap NVMe, SATA, SAS

Hot-Swap:

Yes

RAID Support:

Yes

PCIe:

2x PCIe 5.0 x16 (x16 mode)

Expansion Slots:

2x PCIe 5.0 x16 Full-Height Half-Length

Onboard Network LAN:

1x RJ45 1 Gbps I210-AT

Onboard Network LAN Speed:

1 Gbps

Front I/O Ports:

USB Type-A Mini DP Port

IPMI / BMC integrated:

Yes

Chipset:

System-on-Chip (SoC)

Power Supply Wattage:

800W

Redundant Power Supply:

Yes

Number of Power Supplies:

80 Plus Certificate:

80 Plus Titanium

Power Supply Cooler:

Quantity of Cooler:

Performance Class:

Enterprise-Class

TDP (Thermal Design Power):

350W

Applications:

Edge Computing Enterprise Applications Enterprise Server Networking Multi-Access Edge Computing (MEC) Hybrid/Private Cloud Server

Onboard CPU:

Onboard Graphic:

Yes

Graphics Manufacturer:

ASpeed

Pre-installed Components:

None

Pre-installed Software:

ASPEED AST2600 Baseboard Management Controller (BMC) GIGABYTE Management Console web interface

Certificates:

80 Plus Titanium

Chassis Intrusion:

How long is the Warranty and how you can get technical support for E164-S30-AAG1 Gigabyte

Warranty:	36 months (part)
RMA Url:	https://www.gigabyte.com/Support/Consumer/Warranty
Description:	Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard.
