E163-P30-AAG1 Gigabyte

High-Density 1U Arm Rack Server Barebone built for scale-out networking and edge compute with E163-P30-AAG1 Gigabyte

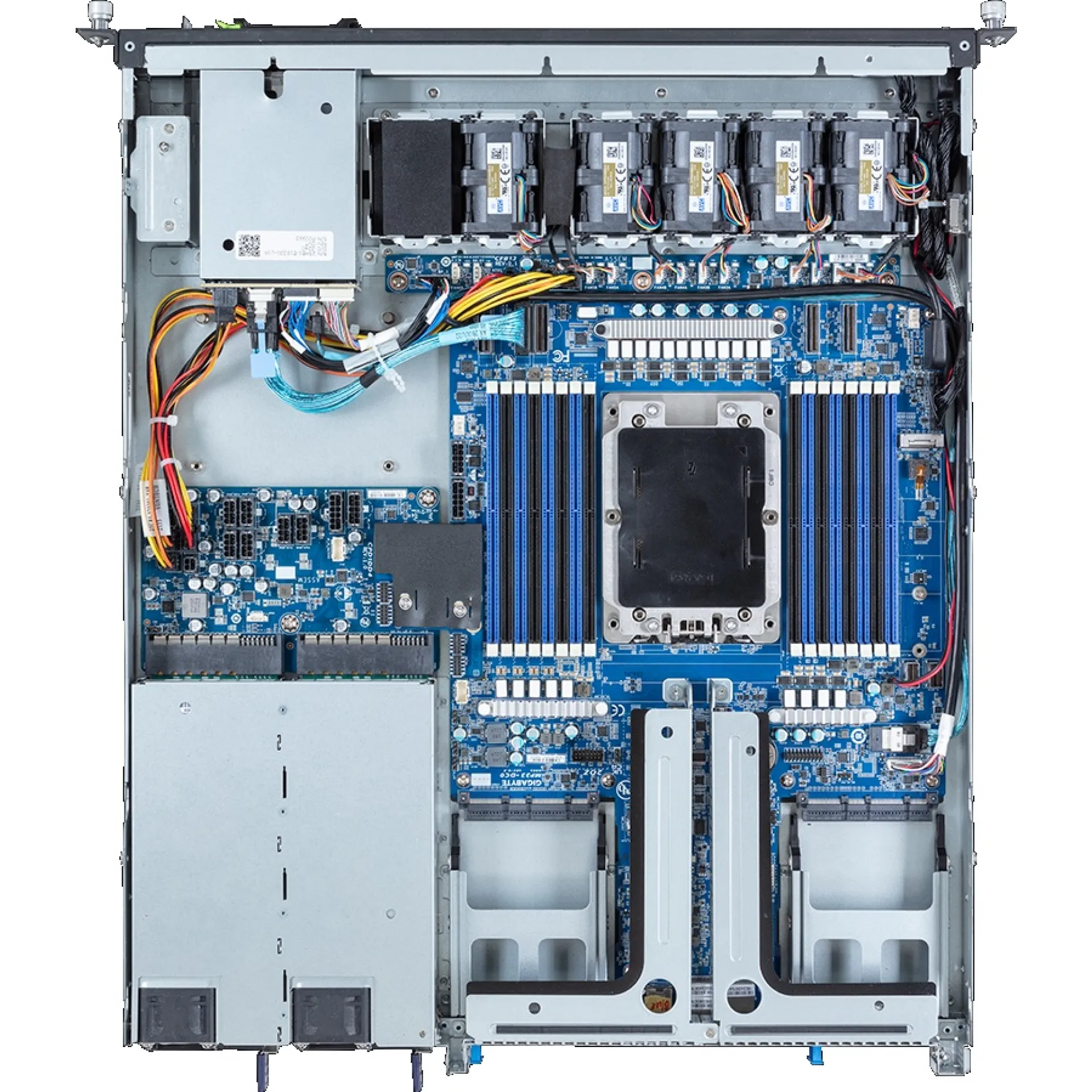

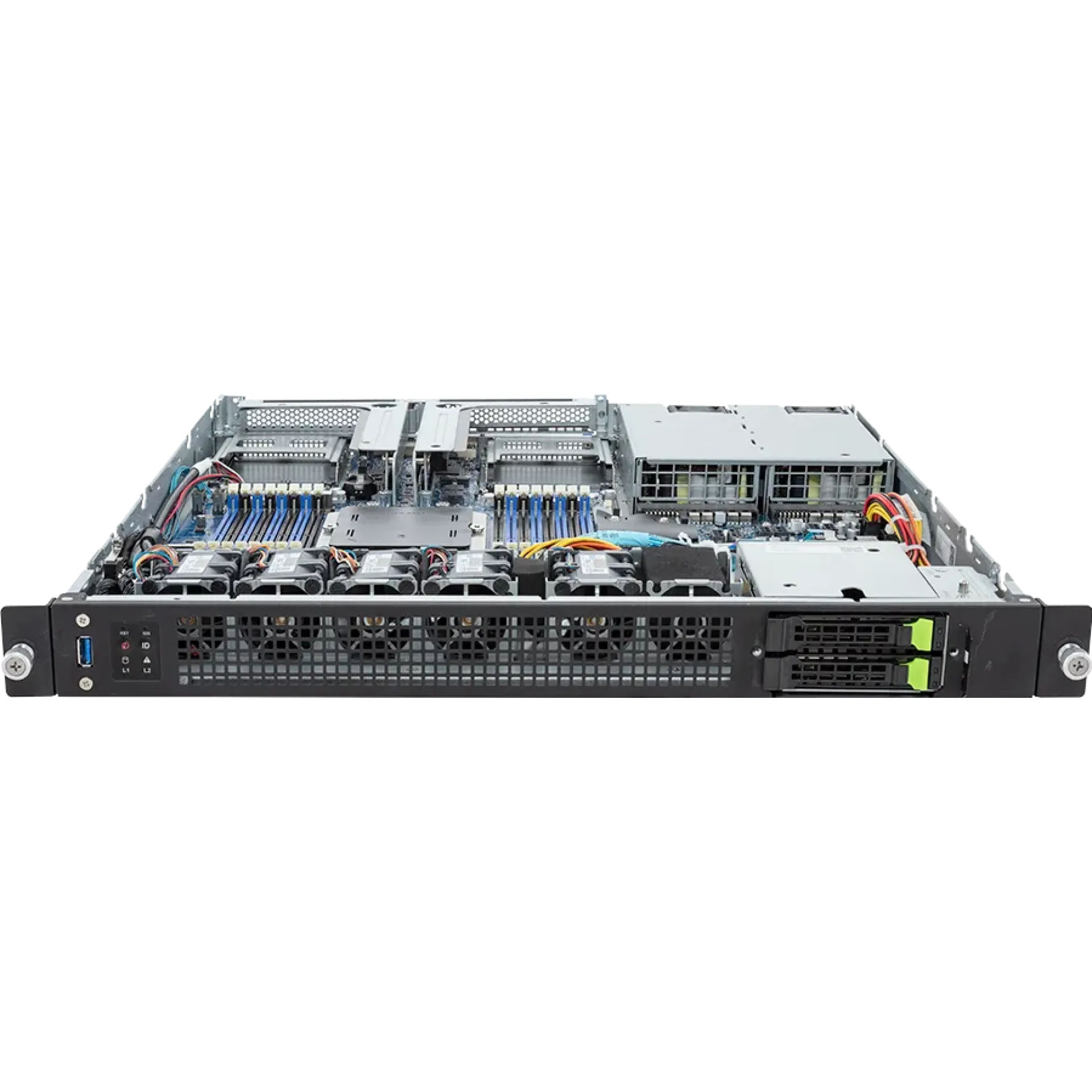

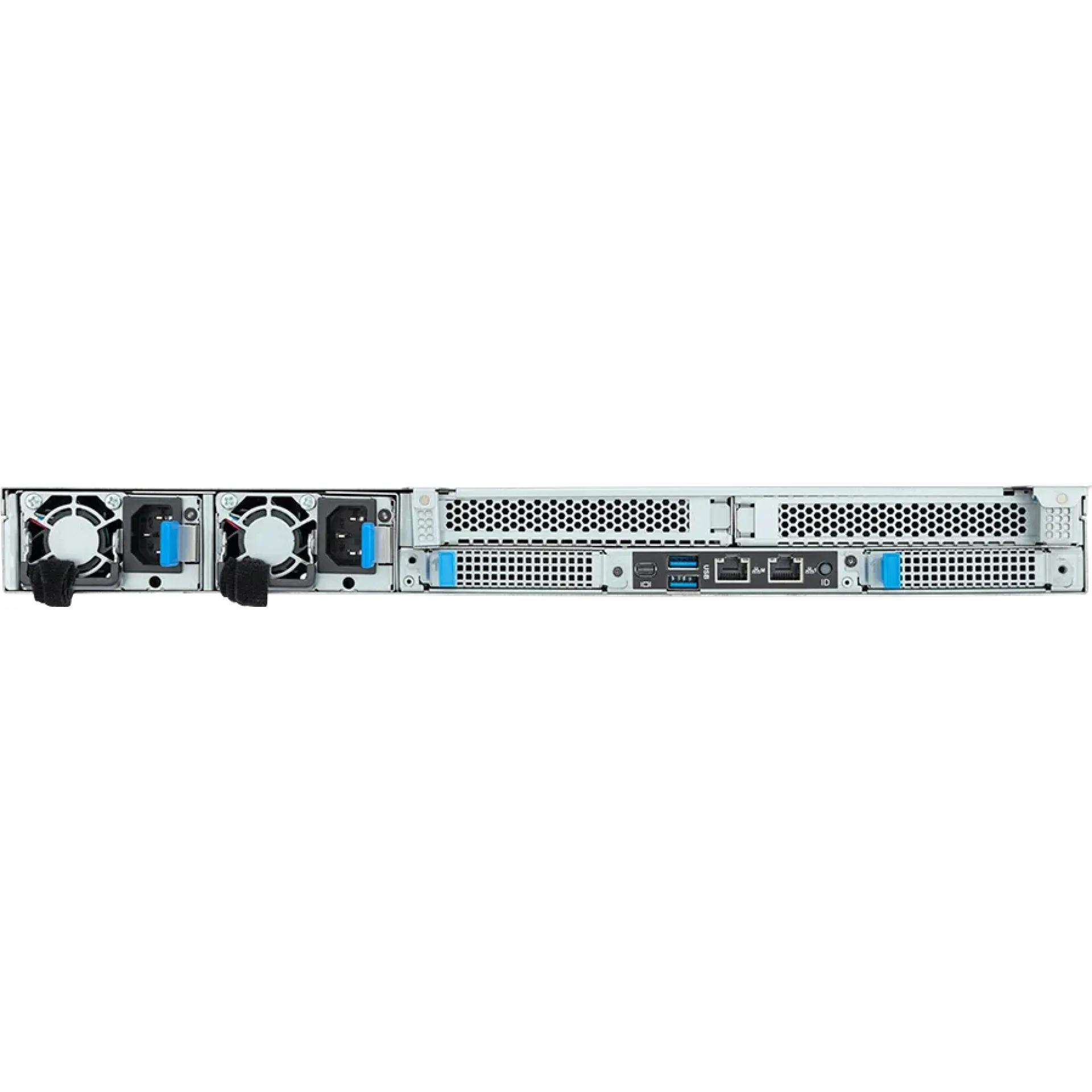

E163-P30-AAG1 Gigabyte is a 1U rack server barebone engineered around the single-socket AmpereOne Arm SoC platform to deliver predictable performance per watt for high-core-count, scale-out infrastructure. With up to 192 cores/192 threads on LGA5964, it targets control-plane and packet-processing stacks that benefit from massive parallelism and consistent latency under sustained load.

The platform’s 8-channel DDR5 RDIMM ECC architecture (16 DIMM slots) supports large in-memory working sets while maintaining enterprise data integrity. PCIe 5.0 I/O is central to the design: two full-height half-length x16 slots enable high-throughput add-ins, while dual OCP 3.0 SFF bays provide a clean path to modern NIC density and standardised serviceability. Storage is optimised for fast local caching and OS separation via 2 hot-swap 2.5-inch bays supporting NVMe (PCIe Gen5 x4) or SATA, plus an M.2 PCIe 5.0 x4 boot device; SAS-4 can be introduced through an add-in HBA/RAID when required.

Why Choose the E163-P30-AAG1 Gigabyte?

E163-P30-AAG1 Gigabyte balances core density, PCIe 5.0 expansion, and front-serviceable storage in a compact 1U footprint to simplify scale-out designs. Redundant 80 PLUS Titanium power, out-of-band management, and modular networking options make it suitable for repeatable deployments across edge sites and private cloud racks where operational consistency is critical.

Gigabyte applies a data-centre engineering approach focused on serviceability, validated platform integration, and management-standard alignment, including an AST2600 BMC with IPMI and HTML5 KVM for secure remote operations and faster incident response.

Key Applications:

Telco edge nodes
vRouter and firewall services
Load balancing and gateway tiers
Containerised microservices
Private and hybrid cloud scale-out Arm clusters

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout plan for E163-P30-AAG1 Gigabyte and the option to extend warranty coverage up to 6 years to protect long-lived edge and networking deployments.

Technical details of E163-P30-AAG1 Gigabyte

Type:

Rack

Suitability:

Server

CPU Socket:

LGA 5964

CPU Family:

Ampere

Supported CPU Manufacturer:

ARM

Supported CPU Type:

AmpereOne

Nodes:

RAM Type:

RDIMM

RAM Max. Total:

4TB

RAM Slots Total:

ECC Support:

ECC

Bays:

2x 2.5" HotSwap NVMe, SATA, SAS

Hot-Swap:

Yes

RAID Support:

Yes

PCIe:

1x PCIe 5.0 x16 (x16 mode)

Expansion Slots:

1x PCIe 5.0 x16 Full-Height Half-Length

Onboard Network LAN:

1x RJ45 1 Gbps Intel I210-AT

Onboard Network LAN Speed:

1 Gbps

Front I/O Ports:

NMI button System status LED Storage Activity LED LAN Activity LED Power button with LED System Reset button USB UID button with LED

IPMI / BMC integrated:

Yes

Chipset:

System-on-Chip (SoC)

Power Supply Wattage:

800W

Redundant Power Supply:

Yes

Number of Power Supplies:

80 Plus Certificate:

80 Plus Titanium

Quantity of Cooler:

Performance Class:

Enterprise-Class

TDP (Thermal Design Power):

400W

Applications:

Edge Computing Networking Hybrid/Private Cloud Server Enterprise

Onboard CPU:

Onboard Graphic:

Aspeed AST2600

Graphics Manufacturer:

ASpeed

Pre-installed Software:

ASPEED AST2600 Baseboard Management Controller (BMC) GIGABYTE Management Console web interface

Certificates:

80 Plus Titanium

Chassis Intrusion:

Operating Temperature:

10°C to 35°C

Non Operating Temperature:

-40°C to 60°C

Operating Relative Humidity:

8°C to 80°C

Non-operating Relative Humidity:

20°C to 95°C

How long is the Warranty and how you can get technical support for E163-P30-AAG1 Gigabyte

Warranty:	36 months (part)
RMA Url:	https://www.gigabyte.com/Support/Consumer/Warranty
Description:	Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard.
