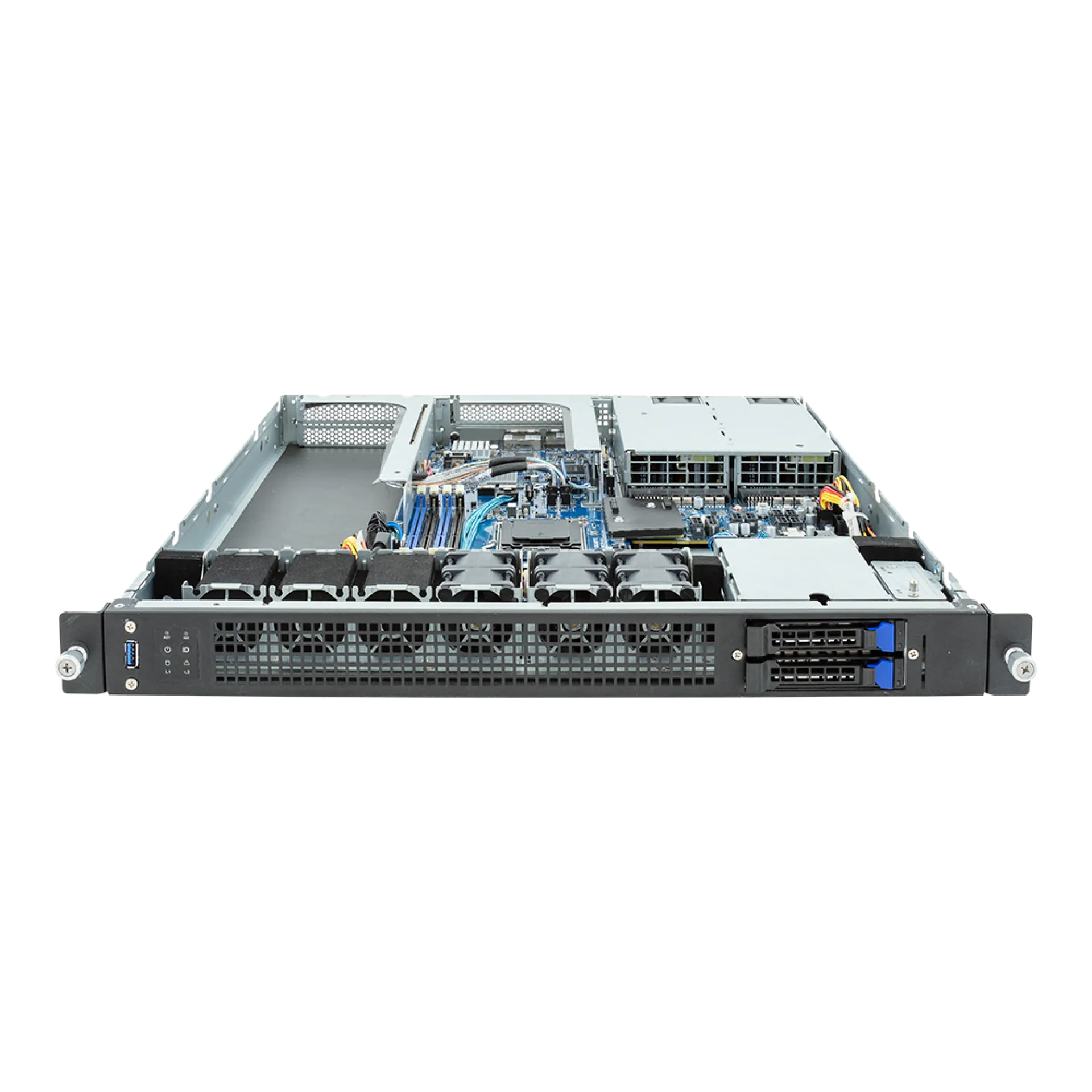

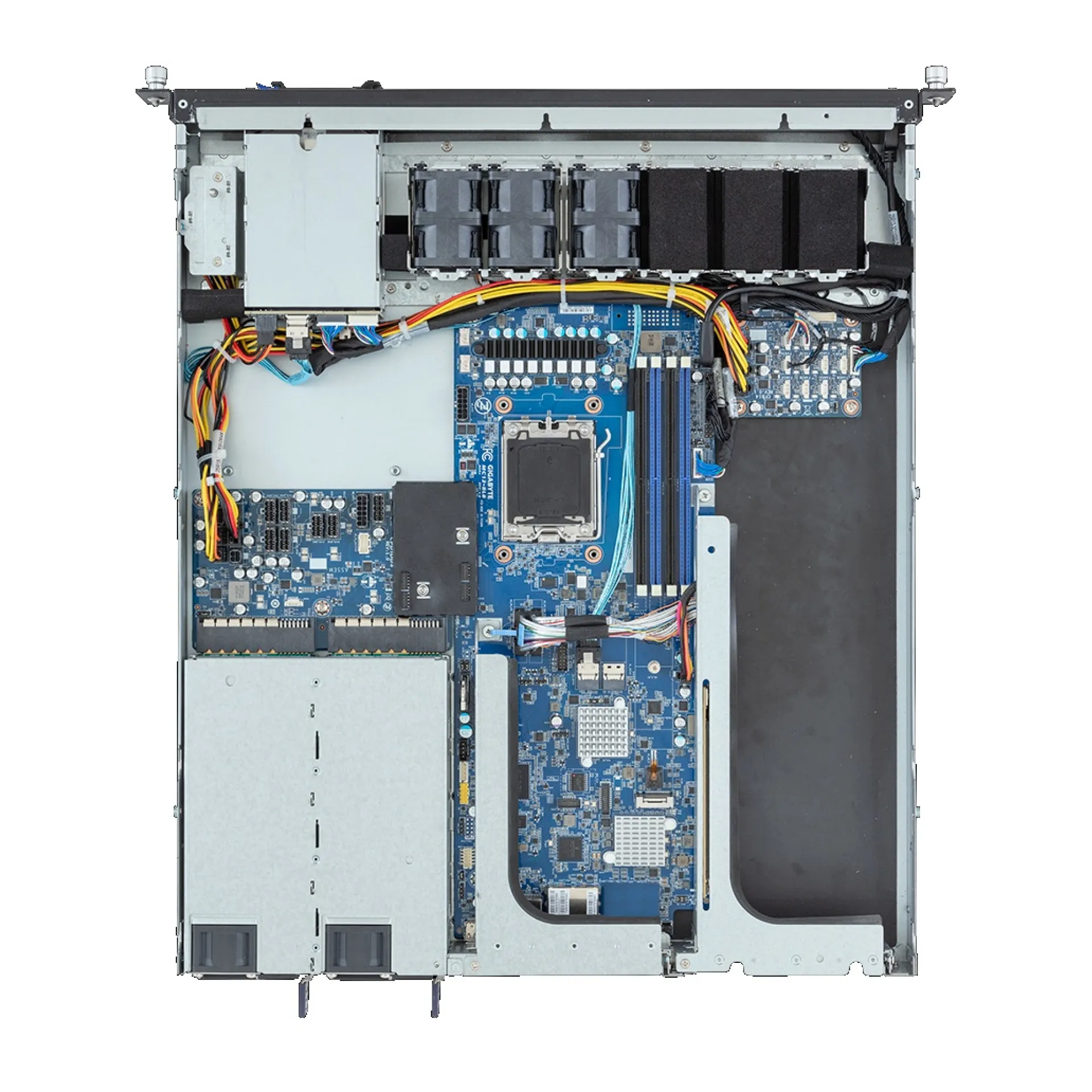

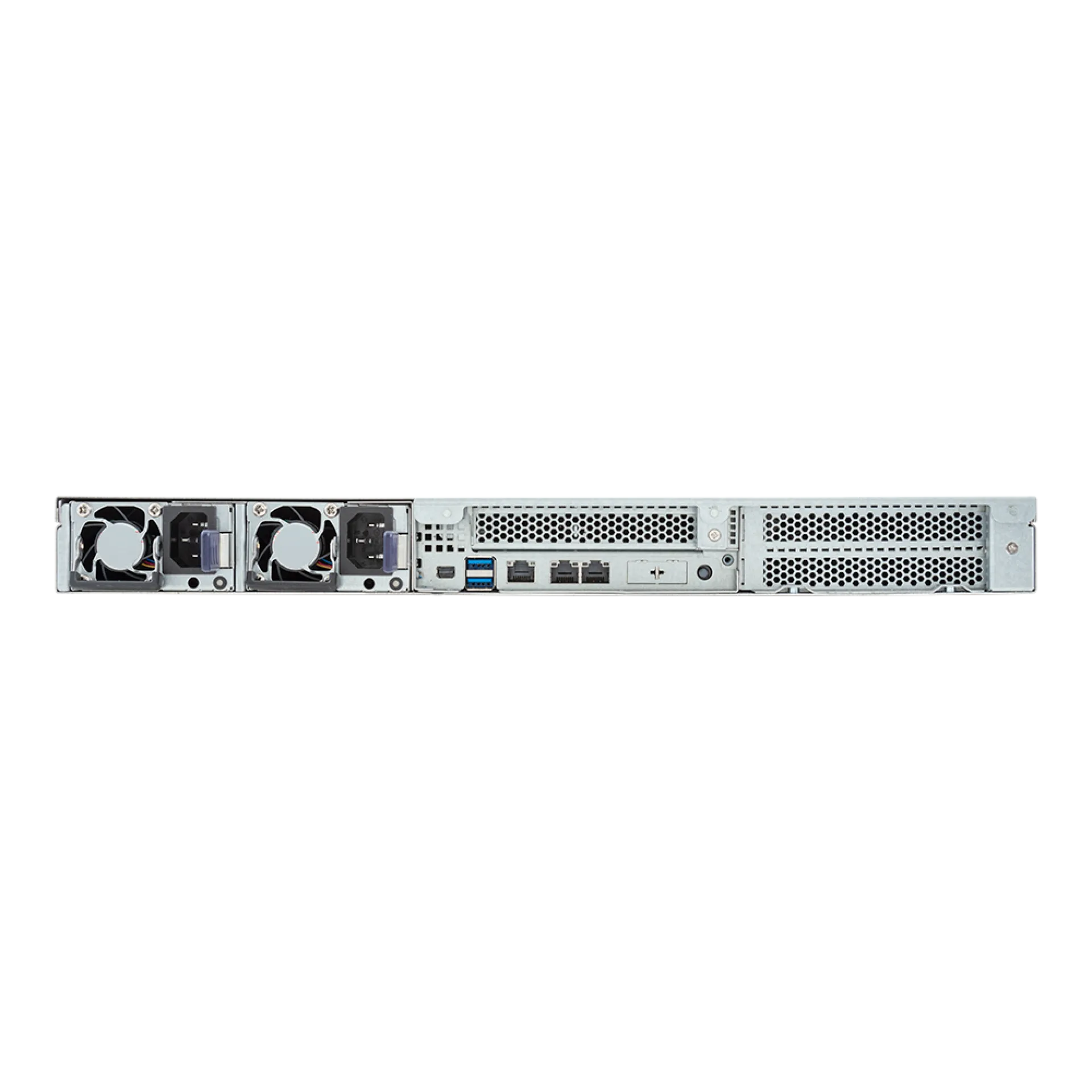

E133-C10-AAG1 Gigabyte

High-Density 1U Edge/Branch Server Barebone with AM5 Compute and PCIe 5.0 Expansion in the E133-C10-AAG1 Gigabyte Platform

The E133-C10-AAG1 Gigabyte 1U barebone is designed for edge and branch deployments where predictable performance, remote manageability, and minimal rack footprint are mandatory. Built on the AMD AM5 socket, it supports AMD EPYC 4005/4004 and Ryzen 9000/7000 processors up to 16 cores/32 threads and 105W, enabling lightweight virtualisation and local service consolidation without over-provisioning power or cooling.

Memory architecture is optimised for practical capacity and uptime, with 4x DDR5 UDIMM slots supporting ECC or non-ECC in a dual-channel design up to 1TB. For I/O scaling, the E133-C10-AAG1 Gigabyte exposes PCIe Gen5 bandwidth through 2x x16 mechanical slots, allowing high-speed adapters such as NICs, accelerators, or storage controllers while keeping a compact 1U profile. Storage is balanced for mixed workloads with 2x 2.5" SATA hot-swap bays plus an M.2 NVMe PCIe Gen4 slot for fast boot, cache, or local telemetry. Integrated networking includes dual 1GbE plus a dedicated BMC port with NCSI for resilient out-of-band access.

Why Choose the E133-C10-AAG1 Gigabyte?

The E133-C10-AAG1 Gigabyte delivers a strong density-to-performance ratio for distributed infrastructure: CPU flexibility on AM5, enterprise-grade remote operations via ASPEED AST2600 with IPMI/HTML5 KVM, and redundant 80 PLUS Titanium power in a 1U chassis. This architecture scales cleanly from single-site gateways to standardized multi-branch rollouts with consistent serviceability.

Gigabyte engineers its E Series platforms with an emphasis on validated server thermals, fault-tolerant power design, and management tooling aligned with modern data centre operational standards, supporting repeatable deployment and lifecycle control.

Key Applications:

Edge virtualisation nodes
Branch office infrastructure services
Routing and firewall appliances
On-prem network functions
Out-of-band managed remote systems

At Happyware - Server Hardware you benefit from 24/7 Customer Service to support rapid rollout planning and lifecycle questions for the E133-C10-AAG1 Gigabyte, and you can request Non-Binding Offers tailored to standardized multi-site configurations.

Technical details of E133-C10-AAG1 Gigabyte

Type:

Rack

Suitability:

Server

CPU Socket:

AM5 (LGA 1718)

CPU Family:

Ryzen 9 Ryzen 7 EPYC

Supported CPU Manufacturer:

AMD

Supported CPU Type:

EPYC 4004 Ryzen 7000 Ryzen 9000 EPYC 4005

Supported CPU Generation:

4th 5th

Supported CPU Codename:

Genoa Naples Raphael Grado

Nodes:

RAM Type:

UDIMM

RAM Max. Total:

1TB

RAM Slots Total:

Memory Slots:

ECC:

ECC Non-ECC

Bays:

2x 2.5" HotSwap SATA

Hot-Swap:

Yes

RAID Support:

Yes

PCIe:

1x PCIe 5.0 x16 (x16 mode)

Expansion Slots:

1x PCIe 5.0 x16 Full-Height Half-Length 1x PCIe 5.0 x16 Full-Height Full-Length (Standard)

Onboard Network LAN:

2x RJ45 1 Gbps BCM5720

Onboard Network LAN Speed:

1 Gbps

IPMI / BMC integrated:

Yes

Chipset:

B650E

Power Supply Wattage:

800W

Redundant Power Supply:

Yes

Number of Power Supplies:

80 Plus Certificate:

80 Plus Titanium

Power Supply Cooler:

Quantity of Cooler:

Performance Class:

Enterprise-Class

TDP (Thermal Design Power):

105W

Applications:

Edge Computing Networking Hybrid/Private Cloud Server

Onboard CPU:

Onboard Graphic:

Yes

Graphics Manufacturer:

ASpeed

Pre-installed Components:

None

Pre-installed Software:

ASPEED AST2600 Baseboard Management Controller (BMC) GIGABYTE Management Console web interface

Certificates:

80 Plus Titanium

Chassis Intrusion:

How long is the Warranty and how you can get technical support for E133-C10-AAG1 Gigabyte

Warranty:	36 months (part)
RMA Url:	https://www.gigabyte.com/Support/Consumer/Warranty
Description:	Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard.
