B683-Z80-LAS1 Gigabyte

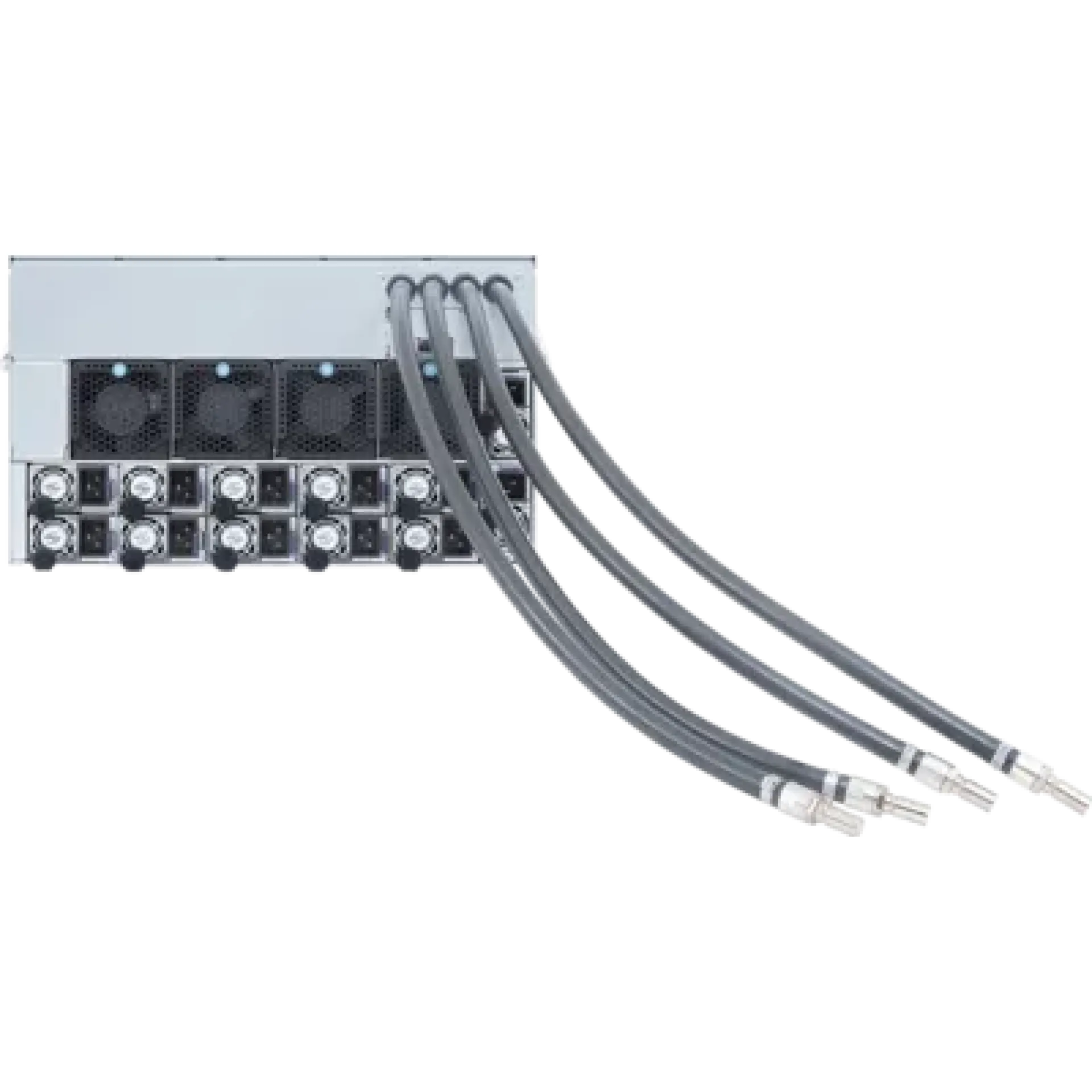

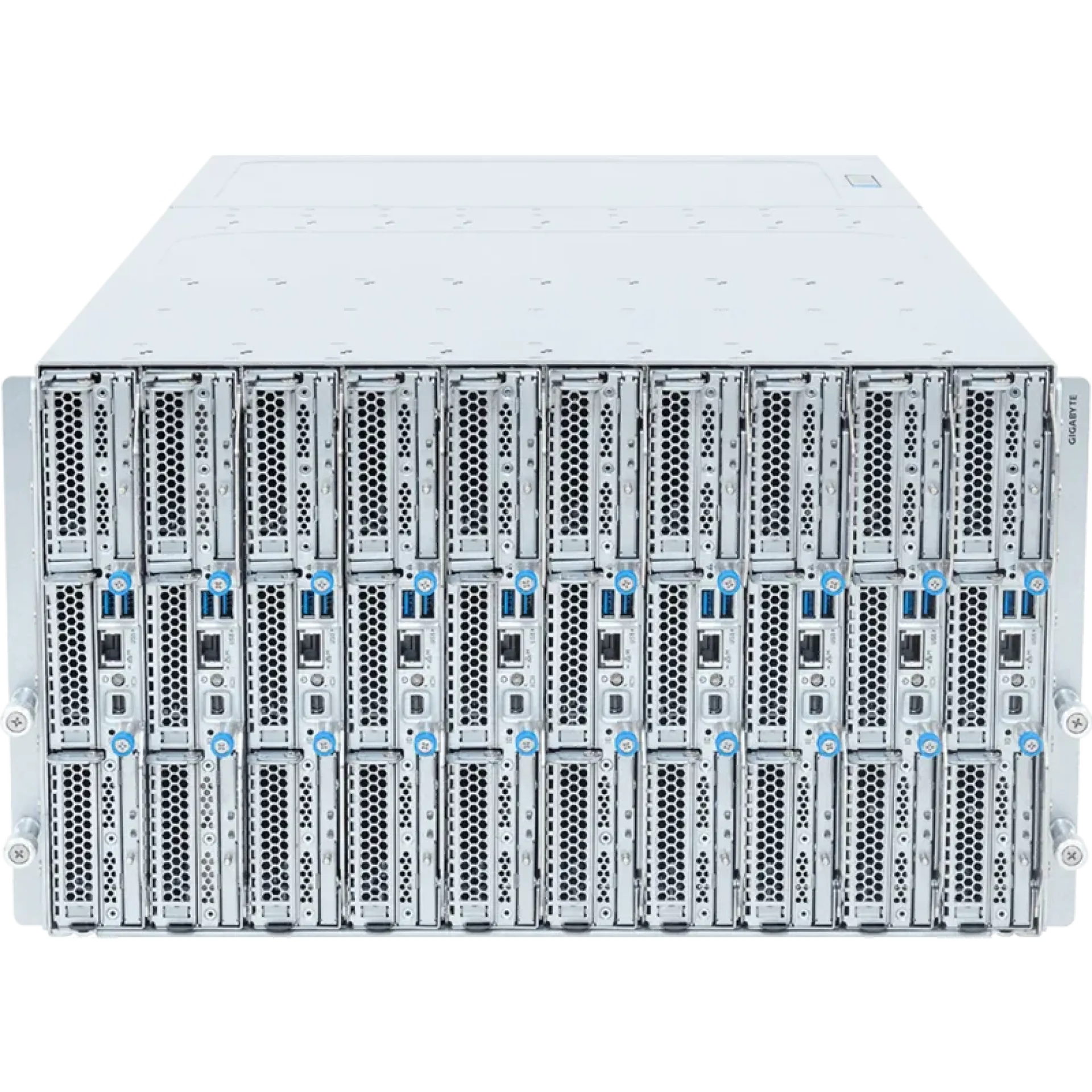

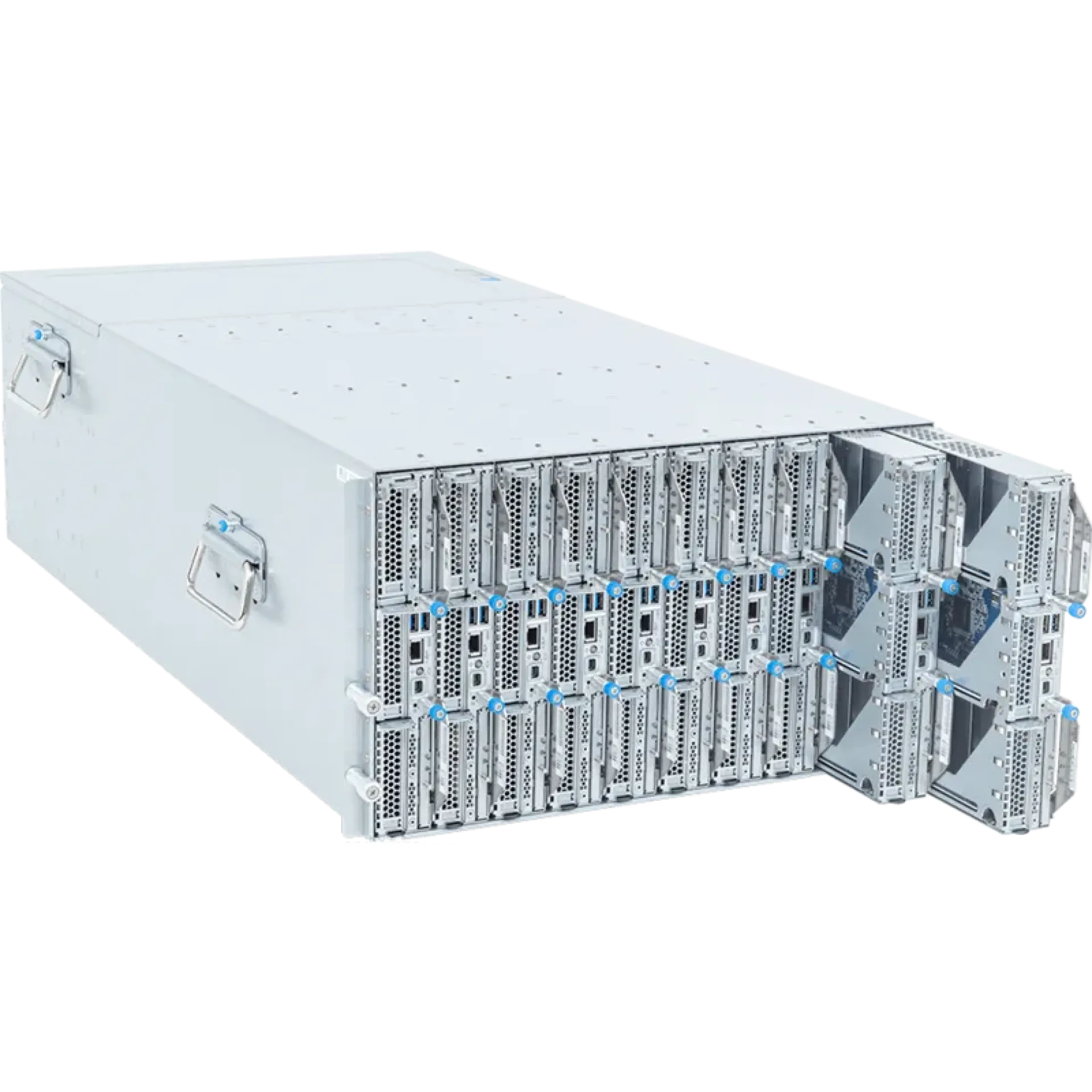

High-Density 6U 10-Node Liquid-Cooled Blade Server Platform with the B683-Z80-LAS1 Gigabyte
The B683-Z80-LAS1 Gigabyte is a 6U, 10-node barebone platform engineered for dense CPU compute where thermal headroom and predictable performance per rack unit are mandatory. Each independent node supports dual-socket AMD EPYC 9005/9004 (SP5), enabling very high core density per chassis while maintaining service separation for cluster schedulers, cloud stacks, or multi-tenant infrastructure.

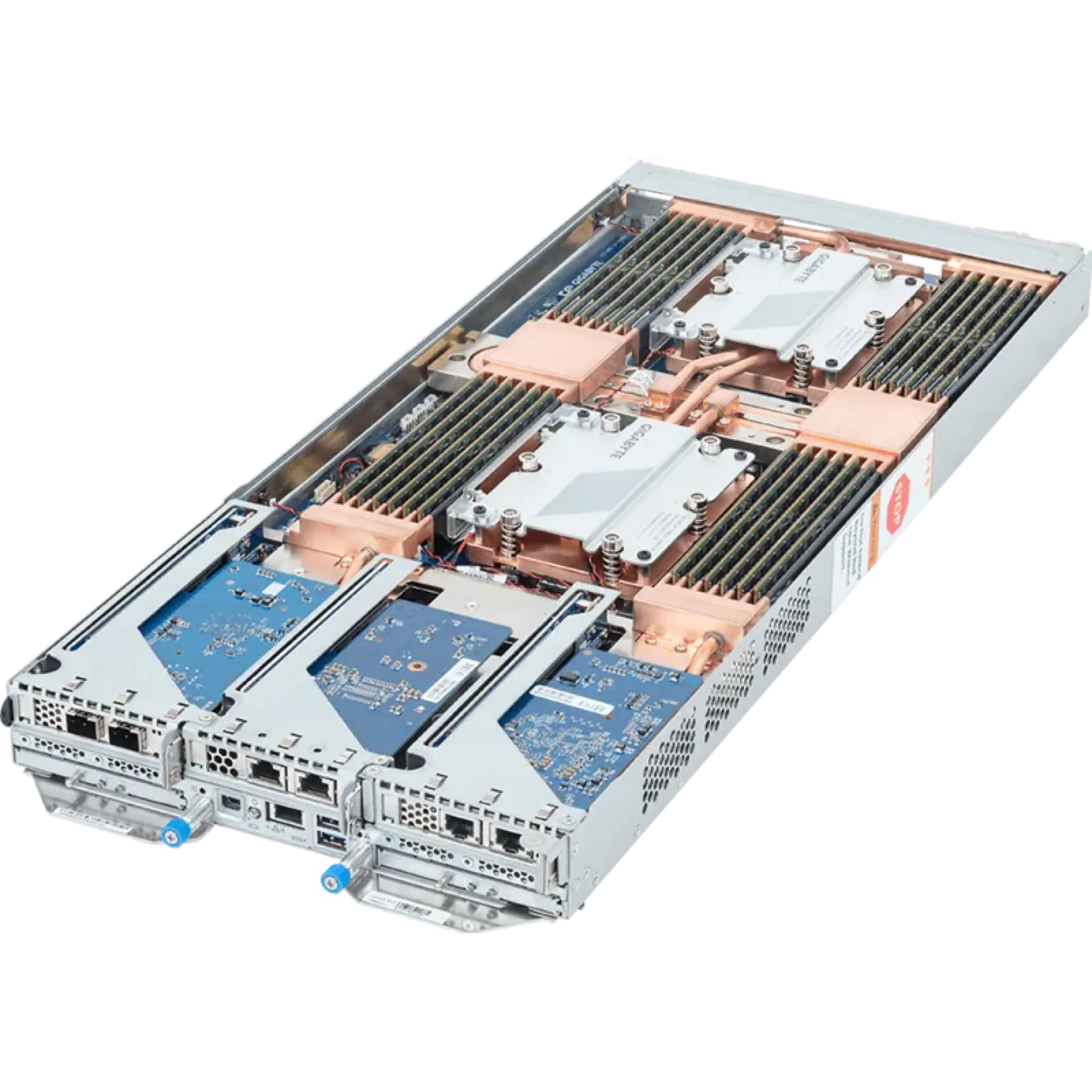

Per node, the memory architecture is designed for bandwidth and capacity with 24 DDR5 ECC RDIMM slots aligned to EPYC’s 12-channel topology per CPU, supporting scale-up footprints up to 6TB and appropriate MT/s targets by CPU generation. The B683-Z80-LAS1 Gigabyte also focuses on modern I/O with PCIe Gen5 end-to-end: two hot-swap E3.S NVMe bays per node for low-latency local scratch or OS plus cache, and PCIe Gen5 x16 low-profile expansion for high-speed NICs and DPUs. This architecture explicitly targets CPU-centric HPC, virtualization, and network functions rather than GPU acceleration.
Why Choose the B683-Z80-LAS1 Gigabyte?
The B683-Z80-LAS1 Gigabyte delivers a density-to-performance profile optimized for scale-out deployments: 10 liquid-cooled nodes in a single chassis with per-node manageability, consistent thermals, and clear upgrade paths across EPYC generations. It is a pragmatic choice for enterprises standardizing on PCIe Gen5 fabrics and NVMe boot/scratch while keeping operational domains isolated per node.
Gigabyte designs platforms around serviceability and data center integration, combining server-grade PCB/layout discipline with management features such as IPMI/BMC, ASPEED onboard graphics, and dedicated management networking to align with modern remote operations and lifecycle control.
Key Applications:
- HPC CPU clusters
- Hybrid and private cloud virtualization
- High-throughput NVMe scratch nodes
- PCIe Gen5 network infrastructure services
At Happyware - Server Hardware you benefit from non-binding offers tailored to your rack-level design and rollout quantities for the B683-Z80-LAS1 Gigabyte, plus an extended warranty option up to 6 years to protect long-lived cluster investments.
Technical details of B683-Z80-LAS1 Gigabyte
How long is the Warranty and how you can get technical support for B683-Z80-LAS1 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
