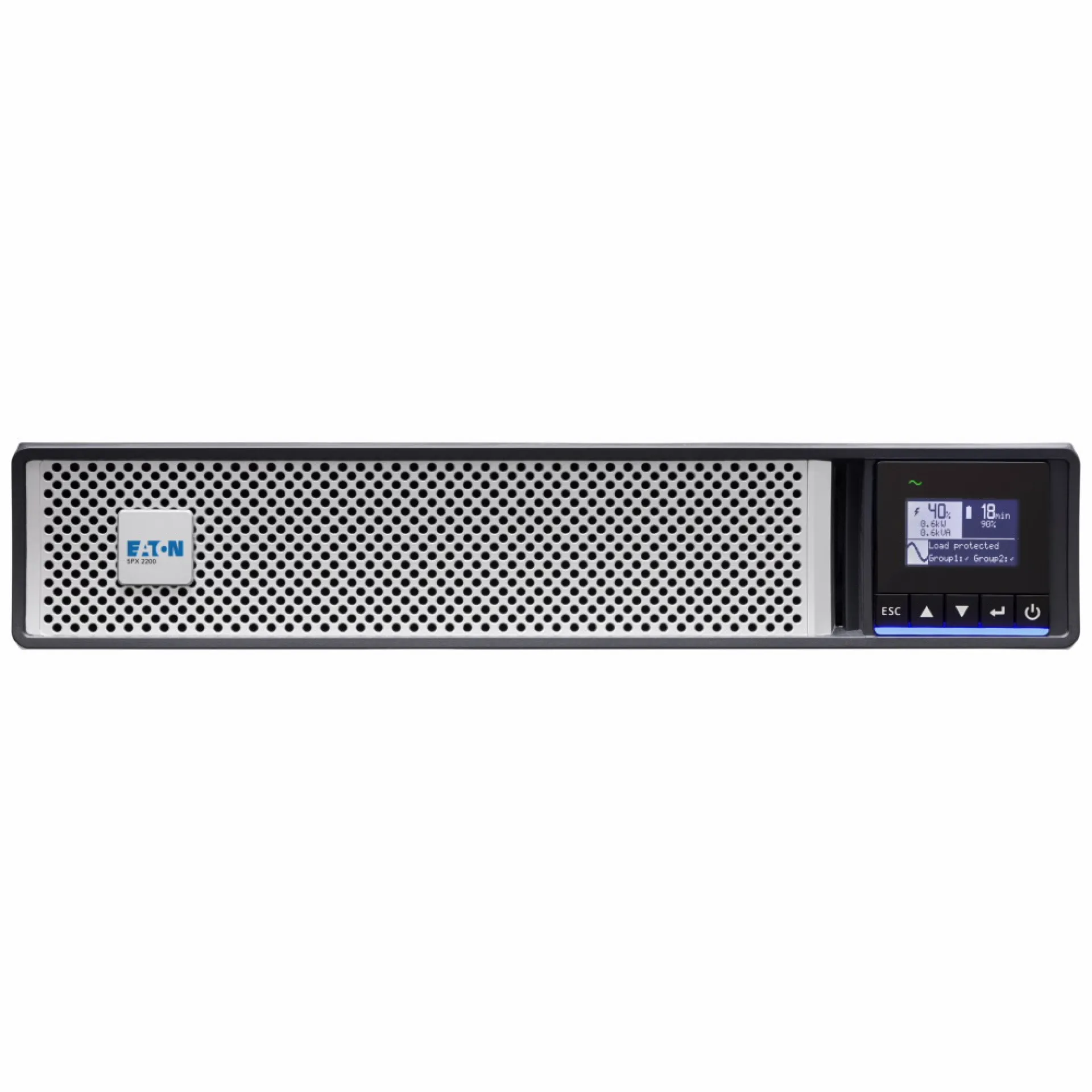

5PX2200IRTNG2 Eaton 2200VA Line-Interactive UPS/USV

High-Density Rack/Tower Line-Interactive UPS delivering sine-wave continuity with the 5PX2200IRTNG2

The 5PX2200IRTNG2 is a 1-phase, line-interactive UPS engineered to stabilize power for single-rack servers and network closets while providing a controlled shutdown window for virtualized hosts, storage nodes, and switching infrastructure. Its sine-wave output is designed for compatibility with modern server PSUs and active PFC loads, minimizing transfer-related stress during voltage events and supporting predictable behavior across mixed IT racks.

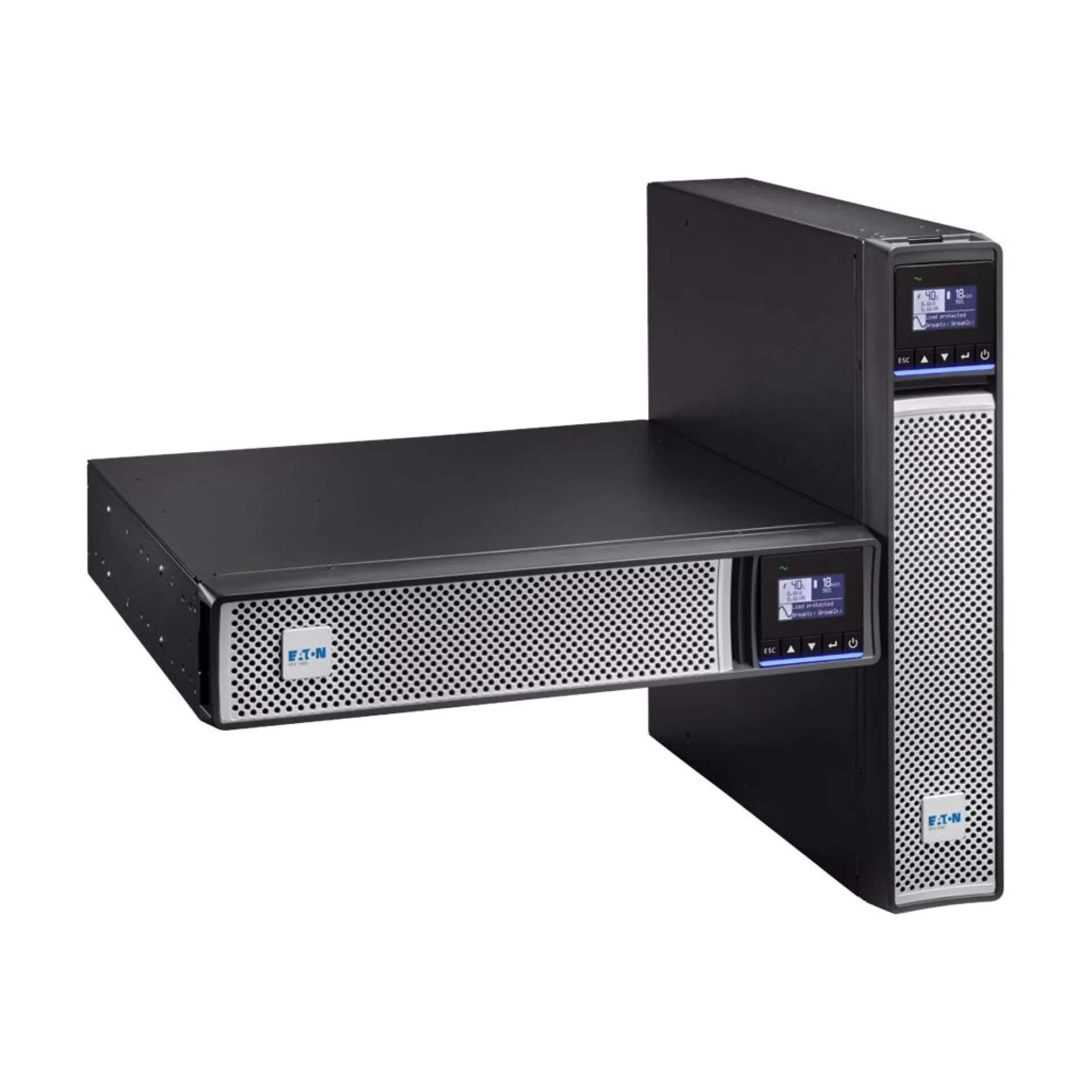

With 2200VA/2200W capacity in performance class VI, the 5PX2200IRTNG2 targets edge and branch deployments where rack density, runtime bridging, and serviceability matter as much as raw capacity. The rack/tower convertible chassis supports flexible placement, and the I/O layout aligns to common rack power architectures with an IEC C20 input feeding 8 x IEC C13 and 2 x IEC C19 outputs, enabling segmented connection of servers, storage, and higher-draw network components without reworking the power chain.

Why Choose the 5PX2200IRTNG2?

The 5PX2200IRTNG2 provides an efficient density-to-protection profile for enterprise closets that must ride through short disturbances and execute graceful shutdown policies without deploying oversized battery systems. For IT teams standardizing on rackable UPS platforms, the 5PX2200IRTNG2 supports scalable rollout, consistent outlet types, and predictable runtime behavior at typical partial loads.

Eaton designs the 5PX series with a focus on operational reliability, electrical safety, and data centre interoperability, aligning with established compliance frameworks and modern deployment requirements. The 5PX2200IRTNG2 supports enterprise governance with certifications including IEC/EN 62040-1/-2, UL 1778, IEC 62443-4-2, and CE/UKCA/FCC Class B.

Key Applications:

• Edge and branch server racks
• Virtualization hosts
• Storage nodes and NAS
• Network switches and security appliances
• Runtime bridging for graceful shutdown

At Happyware - Server Hardware you benefit from non-binding offers tailored to your UPS rollout plan and an extended warranty of up to 6 years to secure long-lived protection for critical rack power paths.
