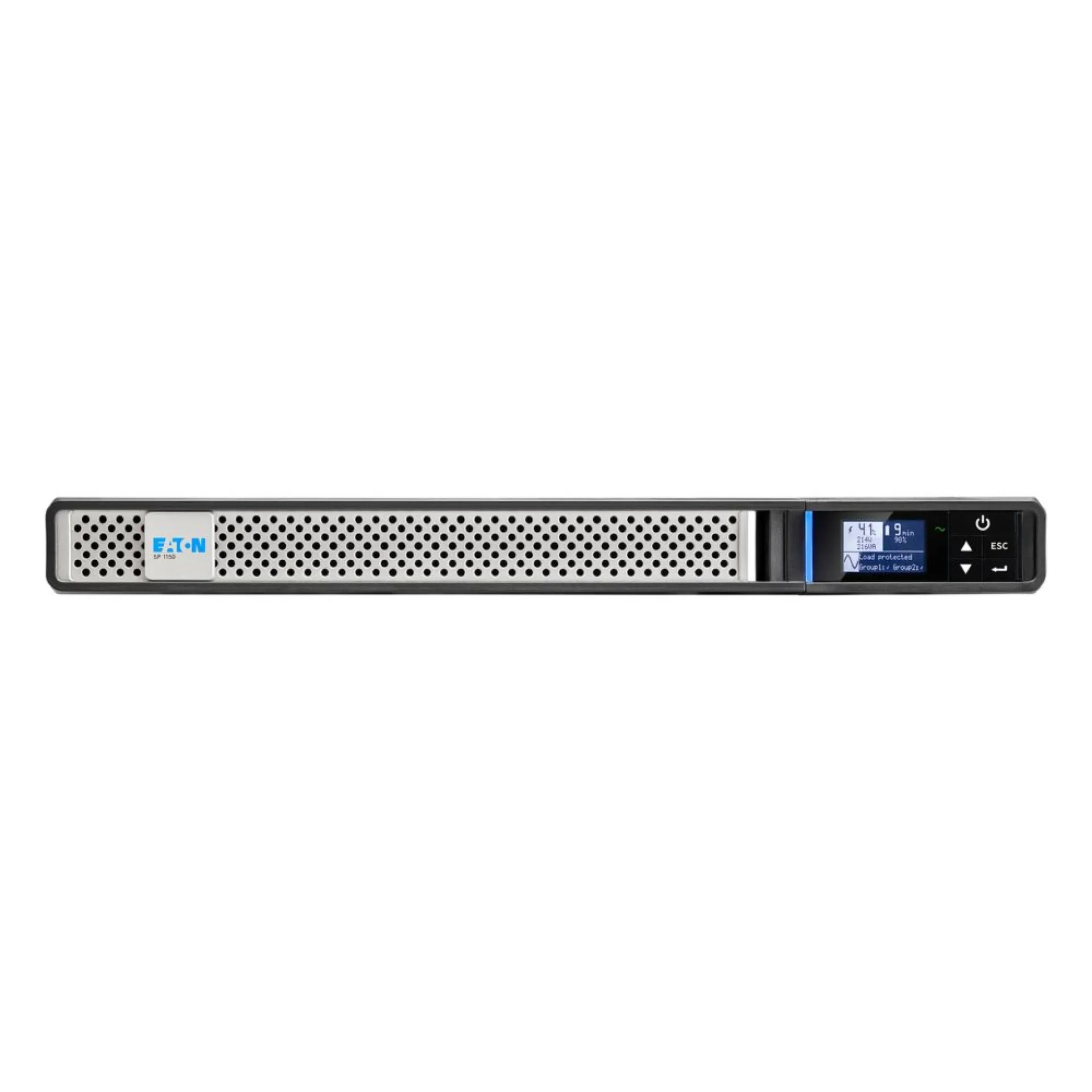

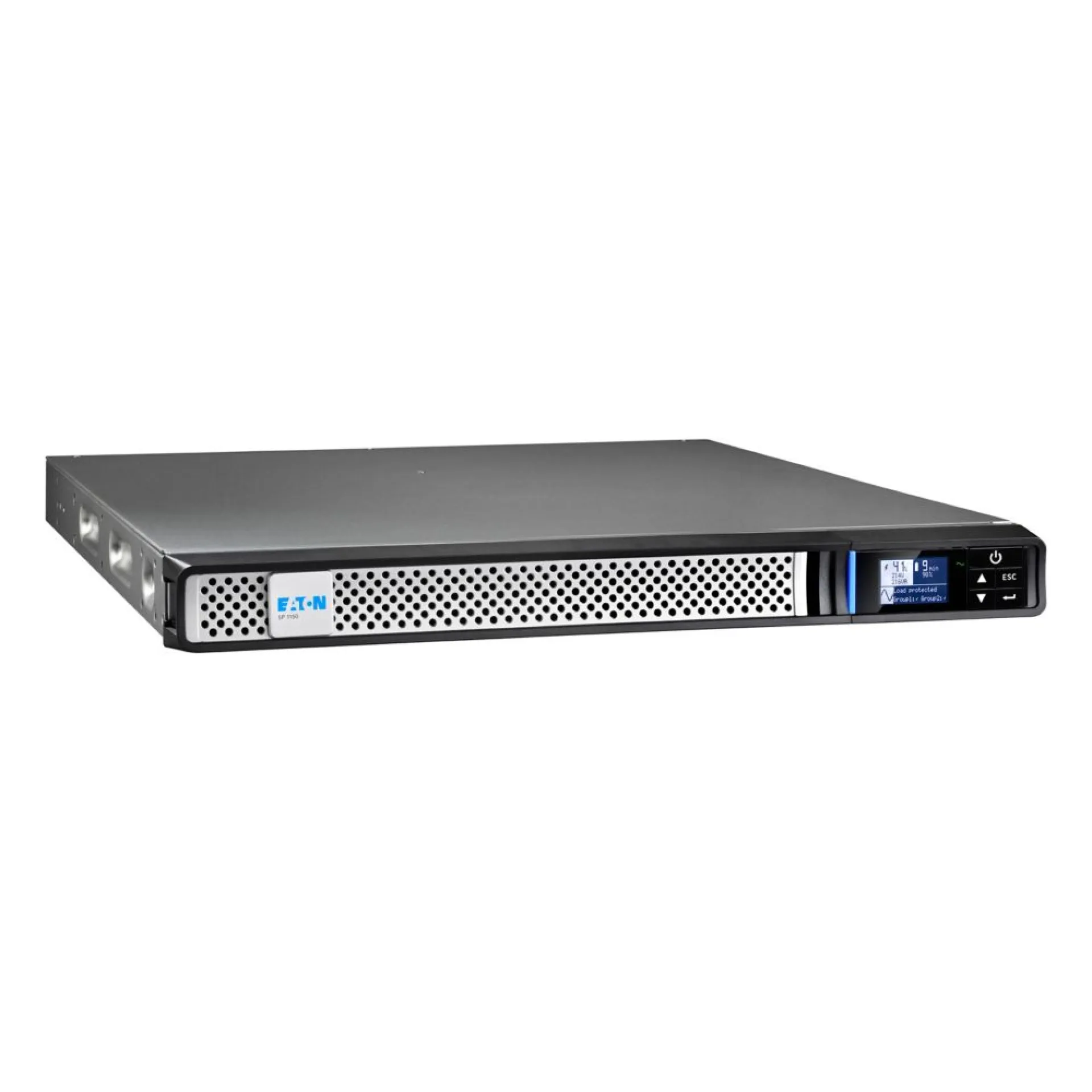

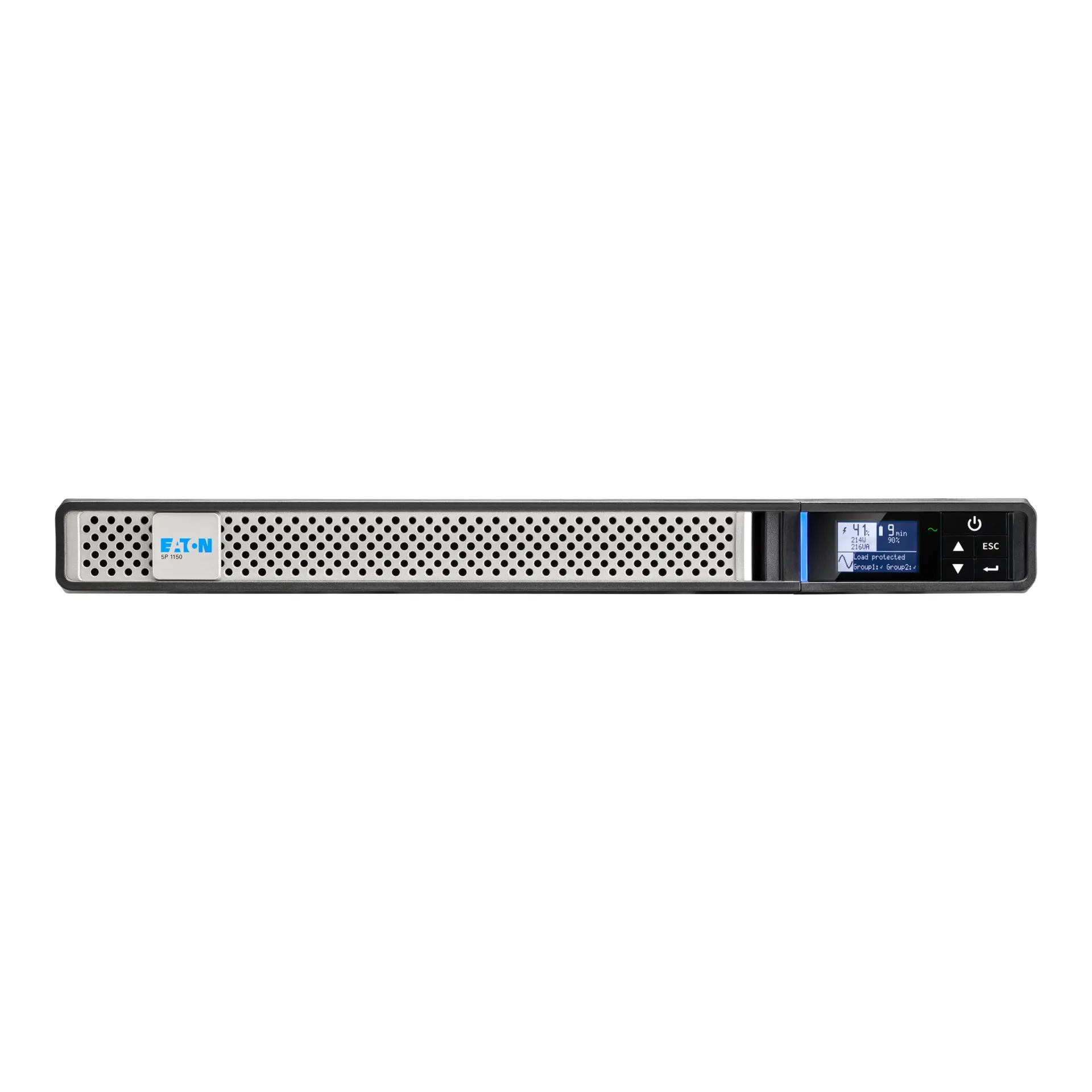

5P1150IRNG2 Eaton 1150 1150VA Line-Interactive UPS/USV

Rackmount Line-Interactive UPS featuring pure sine wave power conditioning with the 5P1150IRNG2

The 5P1150IRNG2 is a rackmount line-interactive UPS designed to stabilise single-phase power for edge racks, network closets, and small server stacks where controlled shutdown time and voltage regulation are operational requirements. With pure sine wave output and automatic voltage regulation for brownout and overvoltage conditions, it protects modern IT power supplies from repeated transfer events and keeps sensitive loads within acceptable input ranges.

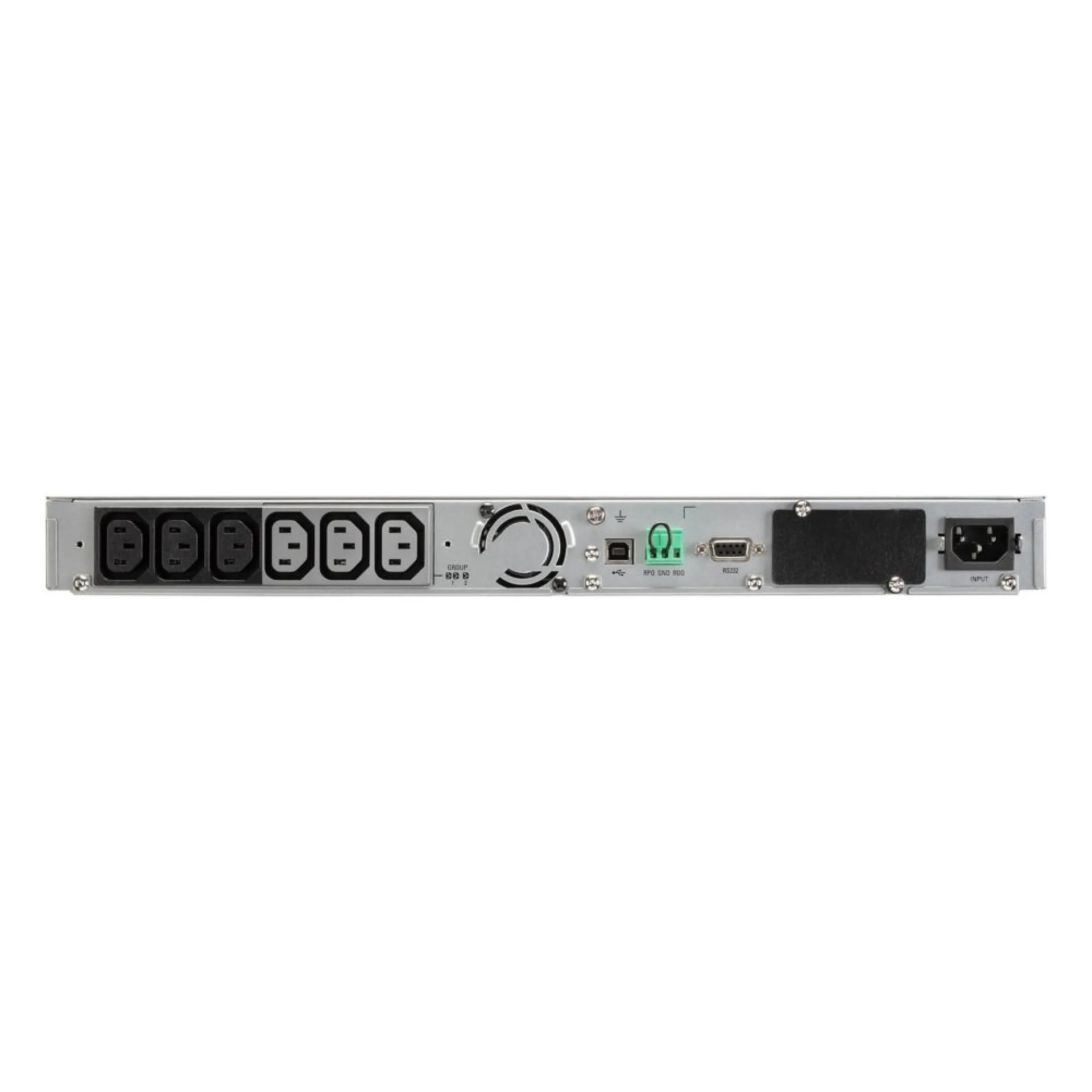

Architecturally, the 5P1150IRNG2 supports typical rack power distribution through an IEC 60320 C14 input and 6x IEC 60320 C13 outputs, aligning with common PDU and server PSU interfaces. Its 1150VA/920W capacity targets mixed loads such as 1U/2U servers, storage appliances, and network gear, while providing a defined shutdown window; at 50% load it delivers up to 12.5 minutes of runtime to complete cache flush, service stop, and host power-off sequences before battery depletion.

Why Choose the 5P1150IRNG2?

The 5P1150IRNG2 delivers a practical density-to-protection profile for constrained racks: line-interactive topology reduces battery cycling during routine voltage variations, while sine wave output maintains compatibility with active PFC power supplies. The result is predictable power conditioning, scalable deployment across multiple edge locations, and a consistent platform for standardised shutdown policies.

Eaton designs UPS platforms with an engineering focus on electrical robustness, maintainability, and standards-based compliance for data centre and edge environments. The 5P1150IRNG2 aligns with RoHS/WEEE and UKCA/CE requirements and is built to meet relevant UL 1778 and IEC/EN 62040 series expectations for enterprise power protection.

Key Applications:

• Edge rack UPS protection
• Network closet power conditioning
• Small virtualisation hosts and hyperconverged nodes
• NAS and entry storage appliances
• Security, VoIP, and core switching stacks

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your rollout plan for the 5P1150IRNG2, helping you standardise UPS protection across sites. You can also extend the warranty up to 6 years to secure long-term service coverage for distributed deployments.
