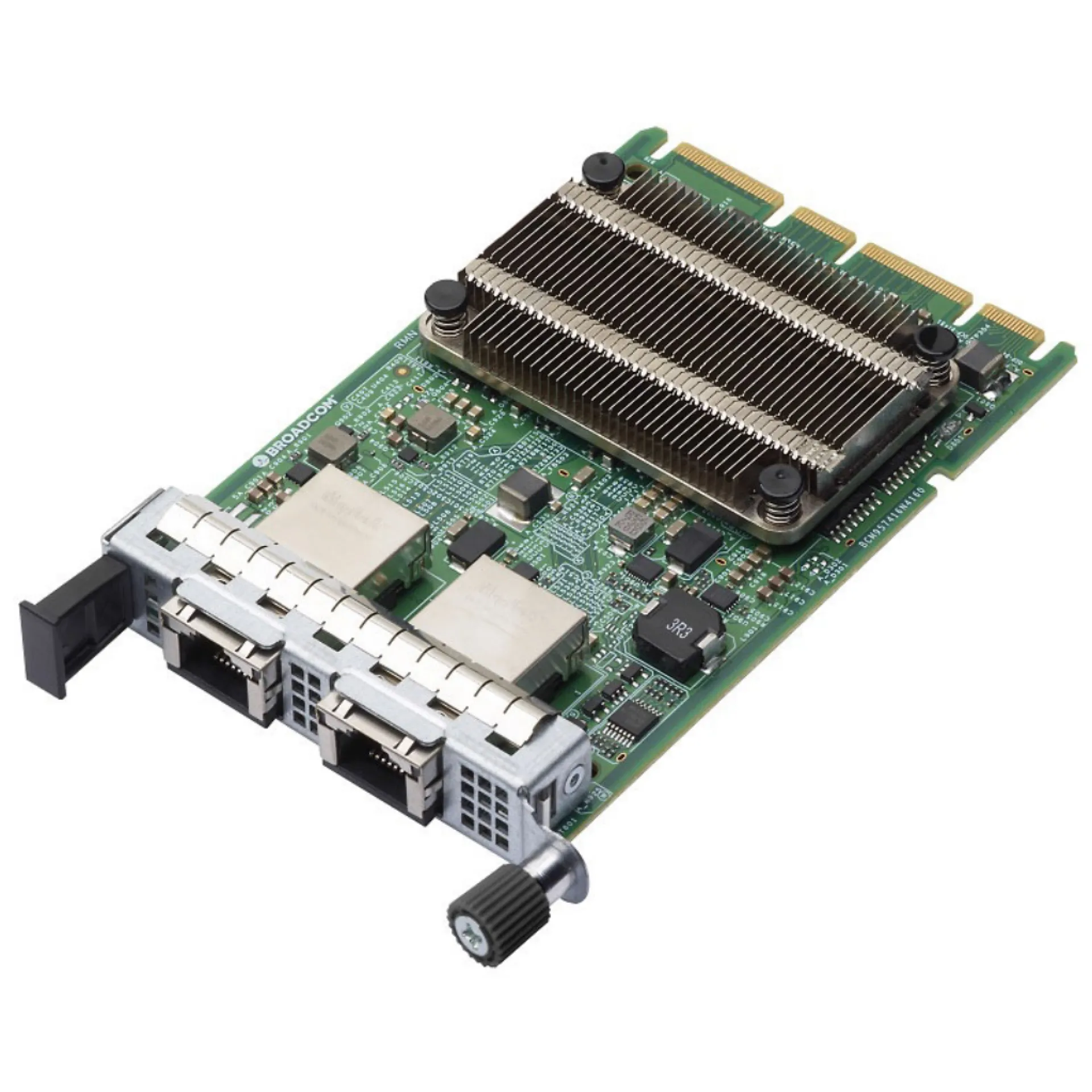

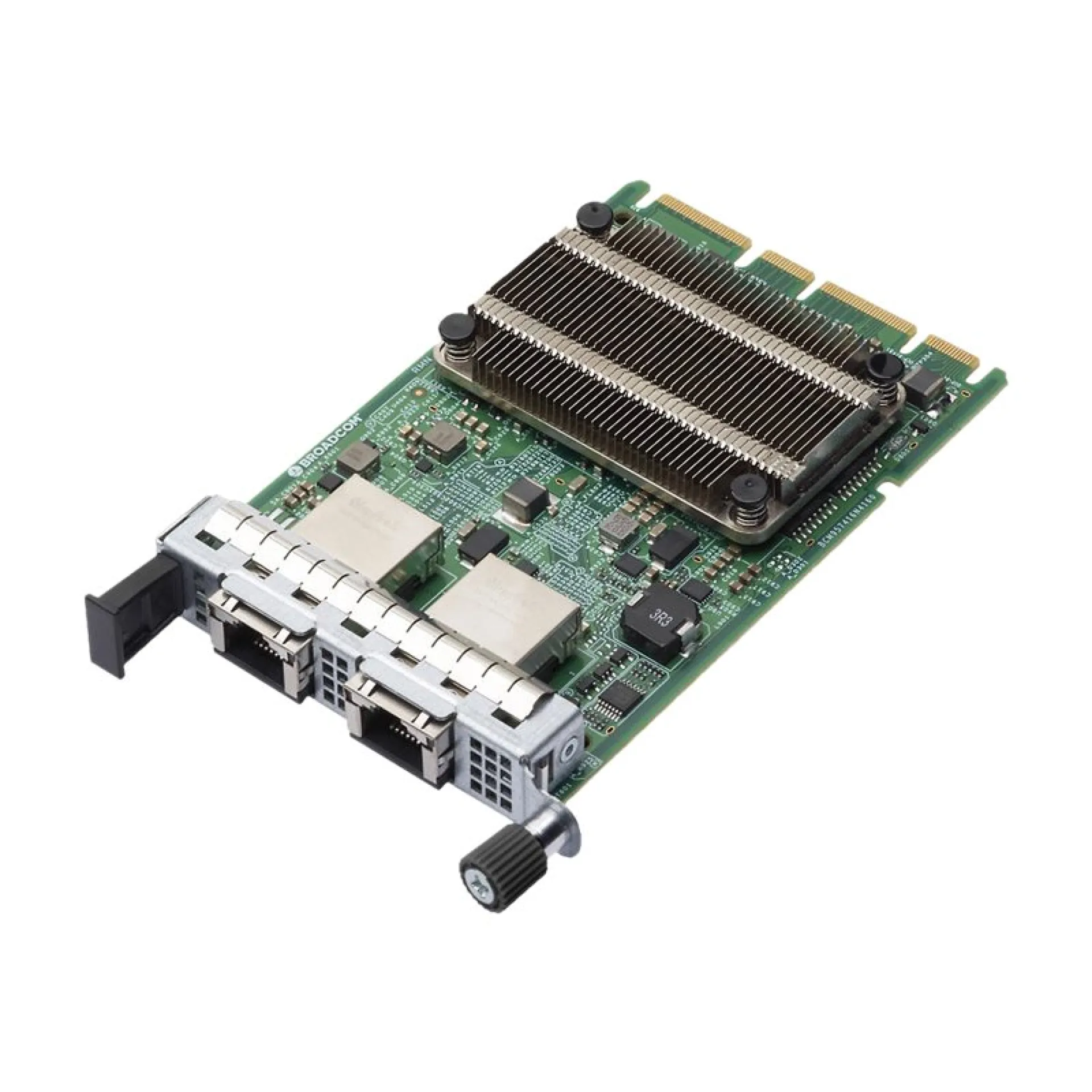

BCM957416N4160C BROADCOM NetXtreme E-Series N210TP RJ45 PCIe 3.0 x8 Network Card

*Picture may not be exactly the same as the product

Get extra volume discount for BCM957416N4160C and save cash:

Quantity	Unit price
To 9	€450.00
To 19	€428.00 €450.00 (4.89% saved)
To 49	€419.00 €450.00 (6.89% saved)
From 50	€405.00 €450.00 (10% saved)

See all Ethernet

See other BROADCOM products

€450.00

Out of stock

Not available

Happyware Article Number:

SE4N9770-641143

Manufacturer Number:

BCM957416N4160C

Brand:

BROADCOM

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

BCM957416N4160C

High-Performance OCP 3.0 10GbE Base-T NIC for virtualized servers with the BCM957416N4160C

The BCM957416N4160C integrates a Broadcom BCM57416 controller in an OCP 3.0 form factor to deliver dual-port 1/10GbE RJ45 connectivity over PCIe Gen3 x8, aligning with dense virtualization hosts and scalable leaf-spine designs. With RoCE RDMA capability and hardware offloads for SR-IOV plus VXLAN/NVGRE, the BCM957416N4160C reduces CPU overhead while supporting east-west traffic, storage transport, and boot workflows such as PXE/UEFI PXE and iSCSI.

Why Choose the BCM957416N4160C?

The BCM957416N4160C provides predictable low-latency networking, strong tenant isolation, and efficient overlay processing to scale VM density without sacrificing throughput or operational stability.

Broadcom engineering prioritizes standards-based interoperability, validated firmware maturity, and enterprise reliability for modern data centre compliance, including EMC certification and management integration via NC-SI.

Key Applications:

Virtualization and SR-IOV enabled hosts
RoCE Ethernet storage networks
VXLAN/NVGRE overlay fabrics
OCP 3.0 rack server networking

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout requirements for the BCM957416N4160C and the option to extend warranty coverage up to 6 years for long-term infrastructure security.

Technical details of BCM957416N4160C

Fabric Type: Ethernet, Gigabit Ethernet

Form Factor: OCP 3.0

Offload Protocols: Checksum Offload, iSCSI boot, Jumbo Frames support, LRO, MSI, MSI-X, NC-SI, NetQueue, PXE support, RoCE, RSS, SR-IOV, TCP/IP offloading, TSO, TSS, UDP/IP offloading, UEFI PXE Boot, Wake On LAN

PCIe Connector: PCIe 3.0 x8

Ports: 2x RJ45 10 Gbps

Power Consumption: 14.6W

RDMA: RoCE

Storage Offload: iSCSI boot

Virtualization: SR-IOV, NVGRE, VXLAN Offload, VMware NetQueue, VMQ, NetQueue, Jumbo Frames support, PXE support, NC-SI

How long is the Warranty and how you can get technical support for BCM957416N4160C

Warranty:	36 months (part)
RMA Url:	https://www.broadcom.com/support/storage/warranty/internal-raid-hba
Description:	Expedited delivery options are available at an additional cost.
