W680D4U ASRock Micro-ATX Single V (LGA 1700) 4 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

See all ASRock

See other ASRock products

This product is currently not priced. Request a personalized quote now.

Out of stock

Not available

Happyware Article Number:

SE8M2672-159657

Manufacturer Number:

W680D4U

Brand:

ASRock

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

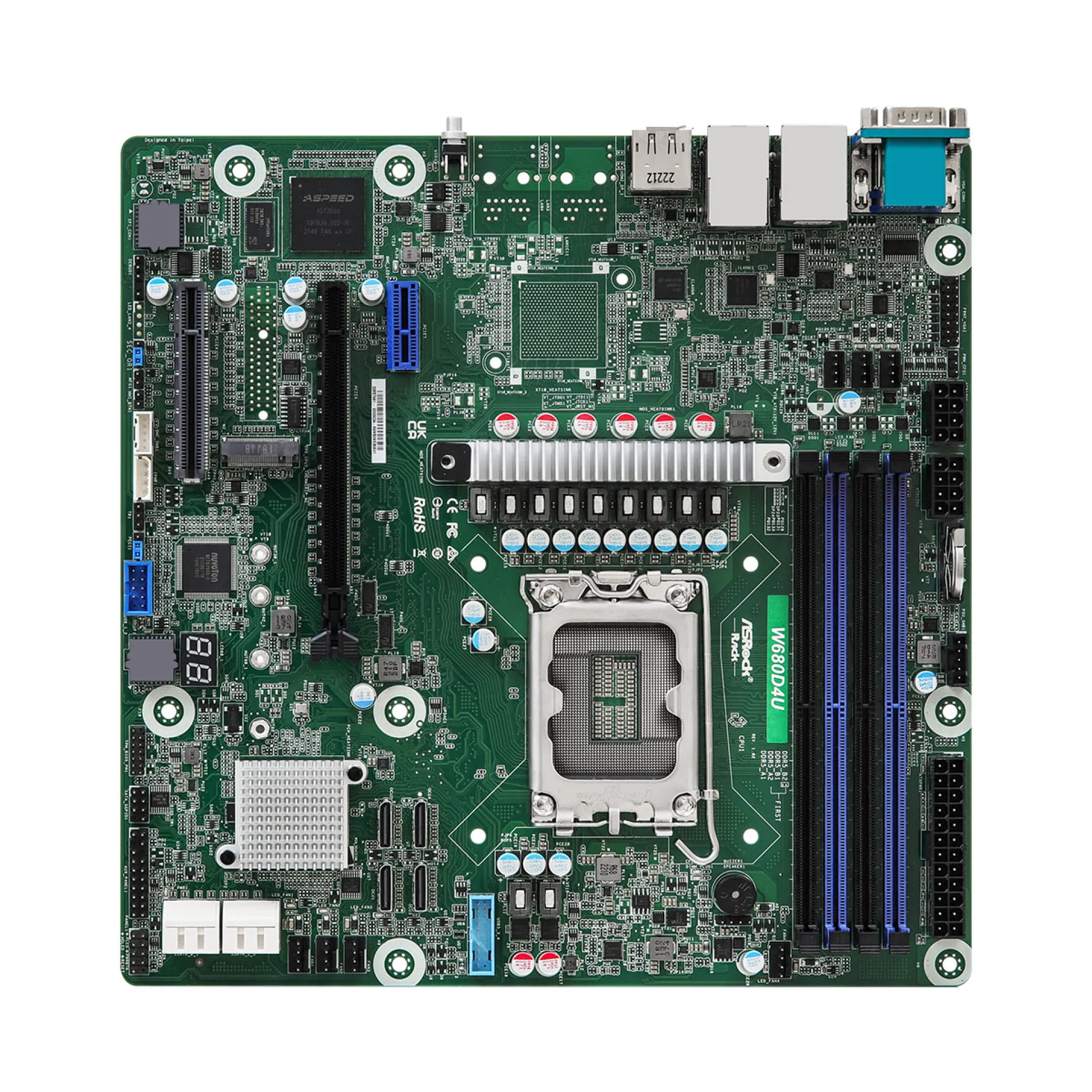

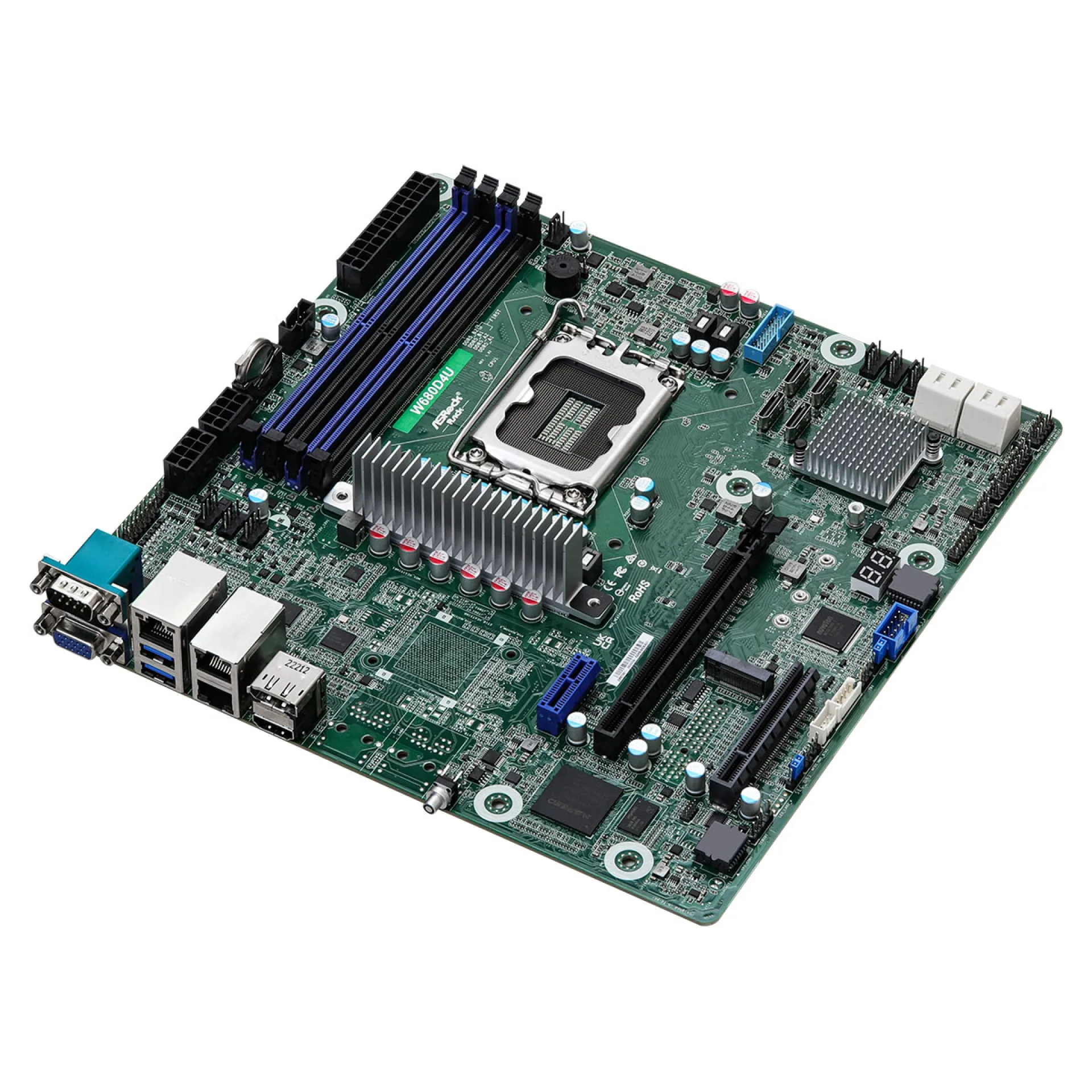

W680D4U

High-Performance Micro-ATX Server Motherboard featuring Intel W680 manageability with the W680D4U

The W680D4U is a compact, enterprise-oriented Micro-ATX platform built on the Intel W680 chipset for single-socket LGA1700 Intel Core-family processors, balancing edge density with data centre operational control. With integrated IPMI/BMC management, the W680D4U supports remote provisioning, monitoring, and out-of-band recovery, aligning well with unattended branch deployments and lights-out server rooms.

For memory architecture, the W680D4U provides 4 DDR5 DIMM slots supporting ECC or non-ECC operation up to 192GB, enabling reliable virtualization and infrastructure services where memory integrity and capacity planning matter. Expansion is engineered around PCIe 4.0 connectivity, including x16 and x8 slots for high-throughput NICs, HBAs, or accelerators, plus a PCIe 3.0 x1 slot for ancillary I/O. Storage design prioritizes internal SATA density with 8 ports for cost-efficient arrays, complemented by an M.2 PCIe 3.0 x4 slot for OS or cache tiering, while chipset RAID support enables straightforward redundancy strategies.

Why Choose the W680D4U?

The W680D4U delivers a practical performance-to-footprint profile for distributed infrastructure, combining DDR5 flexibility, PCIe 4.0 expansion headroom, and integrated BMC control to standardize deployments across sites. The architecture emphasizes uptime and predictable scaling: add storage capacity via SATA, extend I/O via PCIe, and maintain serviceability through remote management without increasing chassis complexity.

ASRock Rack designs platforms with an operational focus on enterprise reliability, validated component selection, and firmware features expected in modern data centre and edge standards. The W680D4U reflects this philosophy by integrating management, security options such as TPM support, and stable networking interfaces for consistent lifecycle operation.

Key Applications:

Edge and branch servers with IPMI remote management
Web and infrastructure services
Light virtualization hosts
SATA-based storage nodes and backup repositories
Network appliance builds with dual 1GbE

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout plan for the W680D4U and an extended warranty of up to 6 years to protect long-lived edge and infrastructure deployments.

Technical details of W680D4U

CPU Socket:

V (LGA 1700)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Core

Form Factor:

Micro-ATX

Chipset:

Intel W680

RAM Maximum Capacity:

192GB

Max RAM Frequency :

4400MHz

RAM Slots:

4 DIMM DDR5

PCIe Slots:

1 PCIe 3.0 x1 1 PCIe 4.0 x8 1 PCIe 4.0 x16

M.2 Slots:

1 PCIe 3.0 x4 M.2 2280, M.2 2260, M.2 2242, M.2 2230 M-Key

Network Ports:

2 RJ45 1 Gbps

ECC Support:

ECC Non-ECC

Onboard Network:

Ethernet

Suitability:

Server

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x DisplayPort 1x HDMI 1x VGA

USB Ports:

2x USB 3.2 Gen 1 Type-A

Other Ports:

1x COM Port

Trusted Platform Module (TPM):

Yes

BIOS:

AMI 256Mb SPI Flash ROM

Embedded:

GPIO Pins:

How long is the Warranty and how you can get technical support for W680D4U

Warranty:	12 months (part)
RMA Url:	https://www.asrock.com/support/?cat=RMA
Description:	Items must be returned first for RMA processing. No advanced replacements.
