W680D4U-2L2T/G5 ASRock Micro-ATX Single V (LGA 1700) 4 DIMM Slots Mainboard

Get extra volume discount for W680D4U-2L2T/G5 and save cash:

Quantity	Unit price
To 4	€864.00
To 9	€839.00 €864.00 (2.89% saved)
To 19	€821.00 €864.00 (4.98% saved)
From 20	€804.00 €864.00 (6.94% saved)

Product line:

Rack

See all ECC RAM Supported Motherboard

See other ASRock products

€864.00

In stock

Happyware Article Number:

SH9M2264-196867

Manufacturer Number:

W680D4U-2L2T/G5

Brand:

ASRock

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

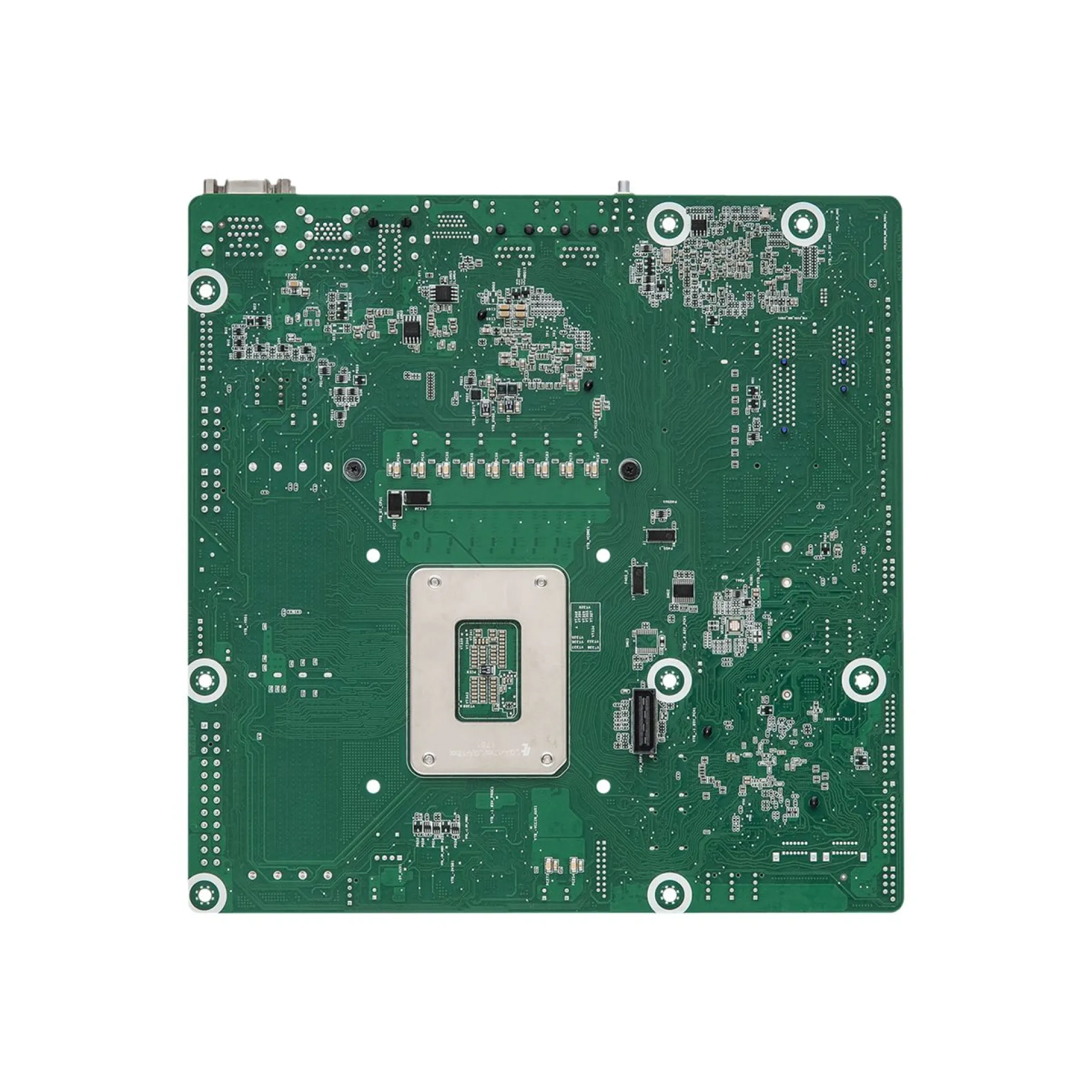

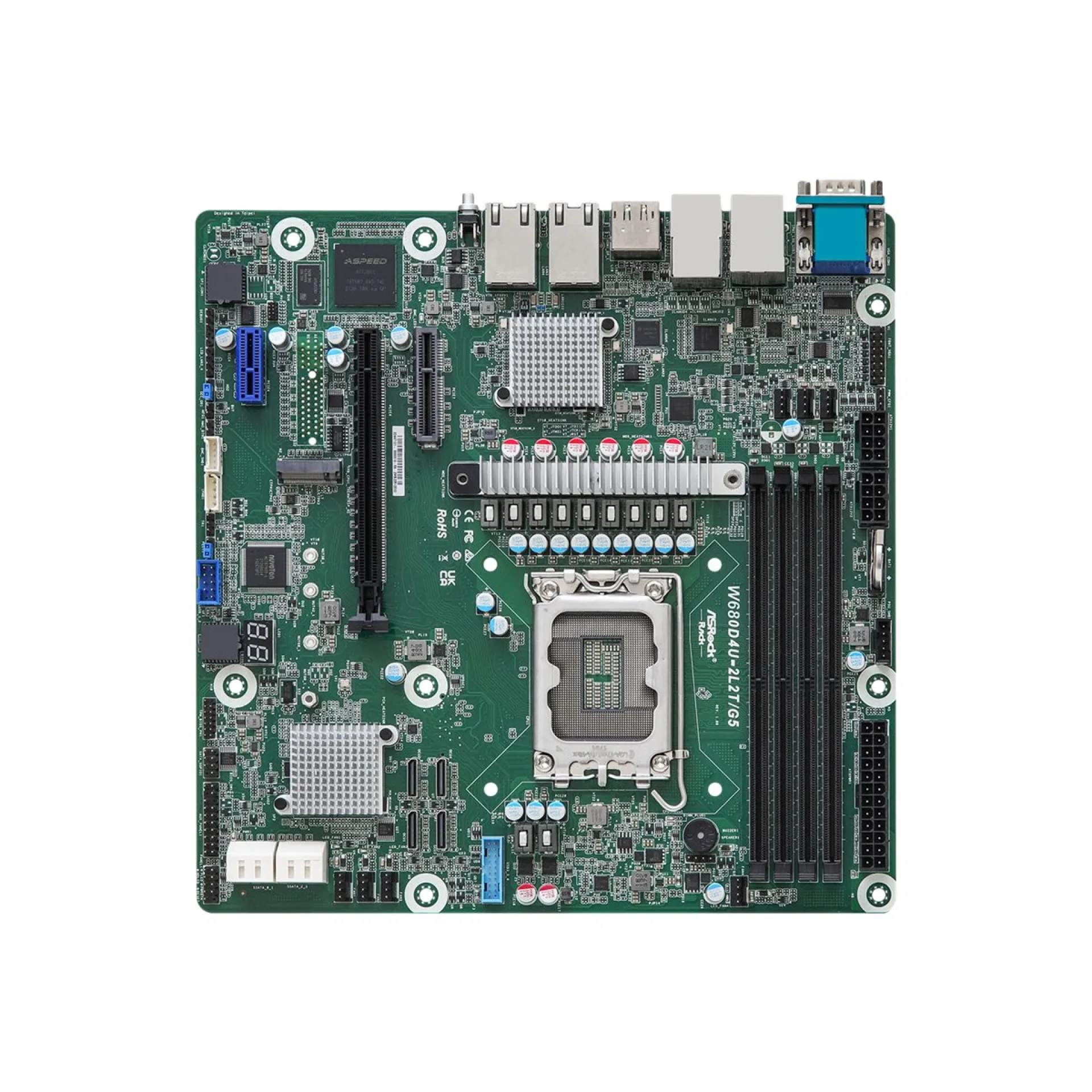

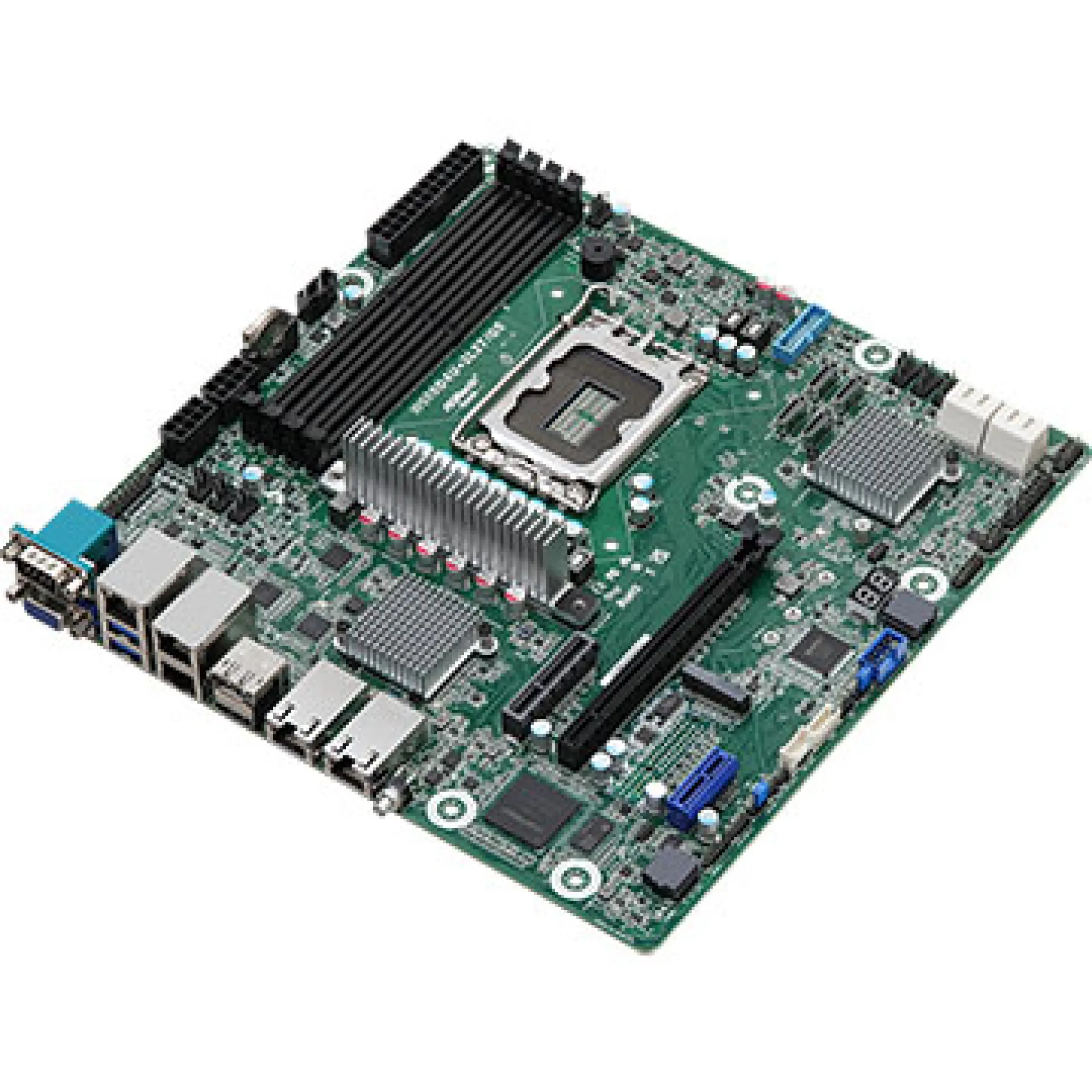

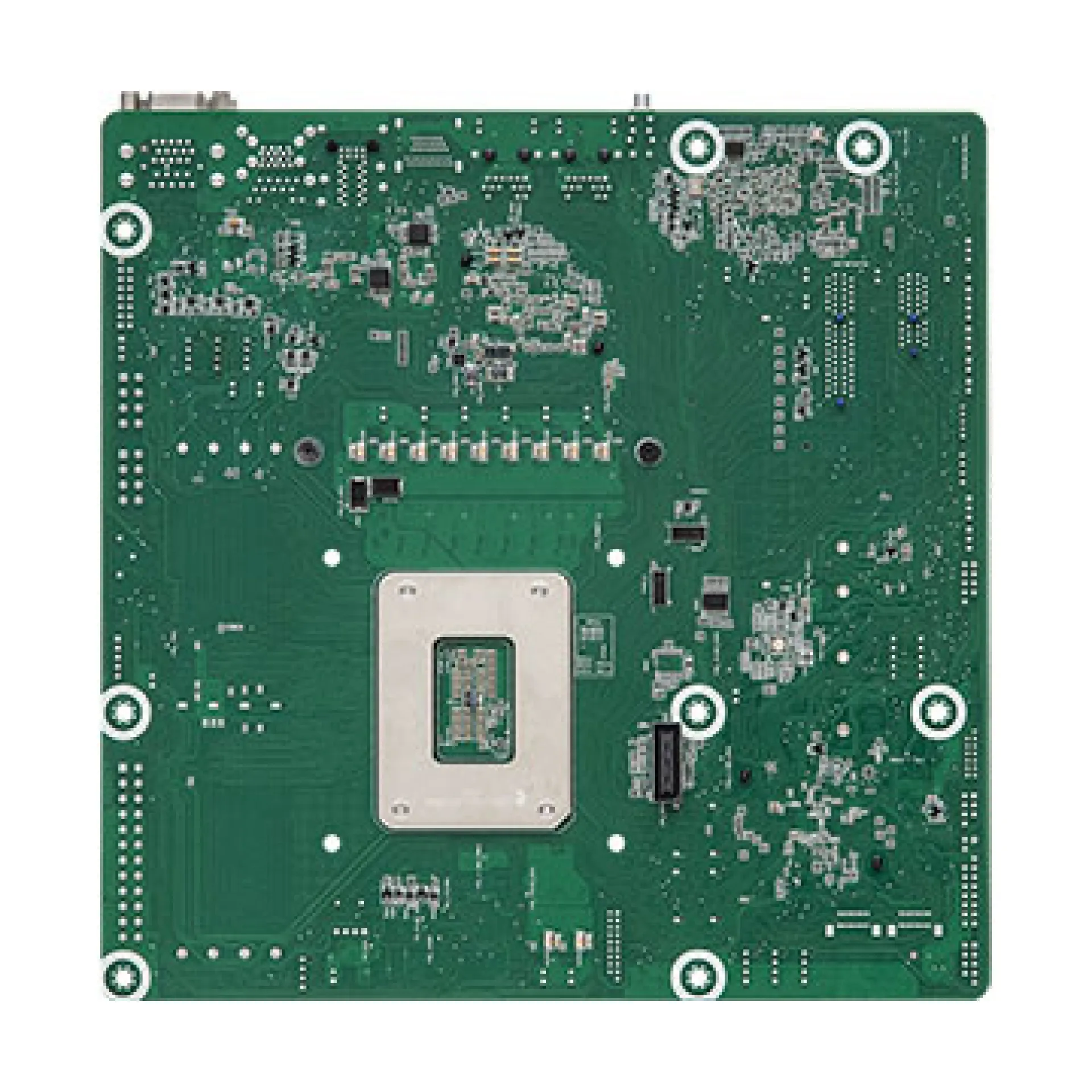

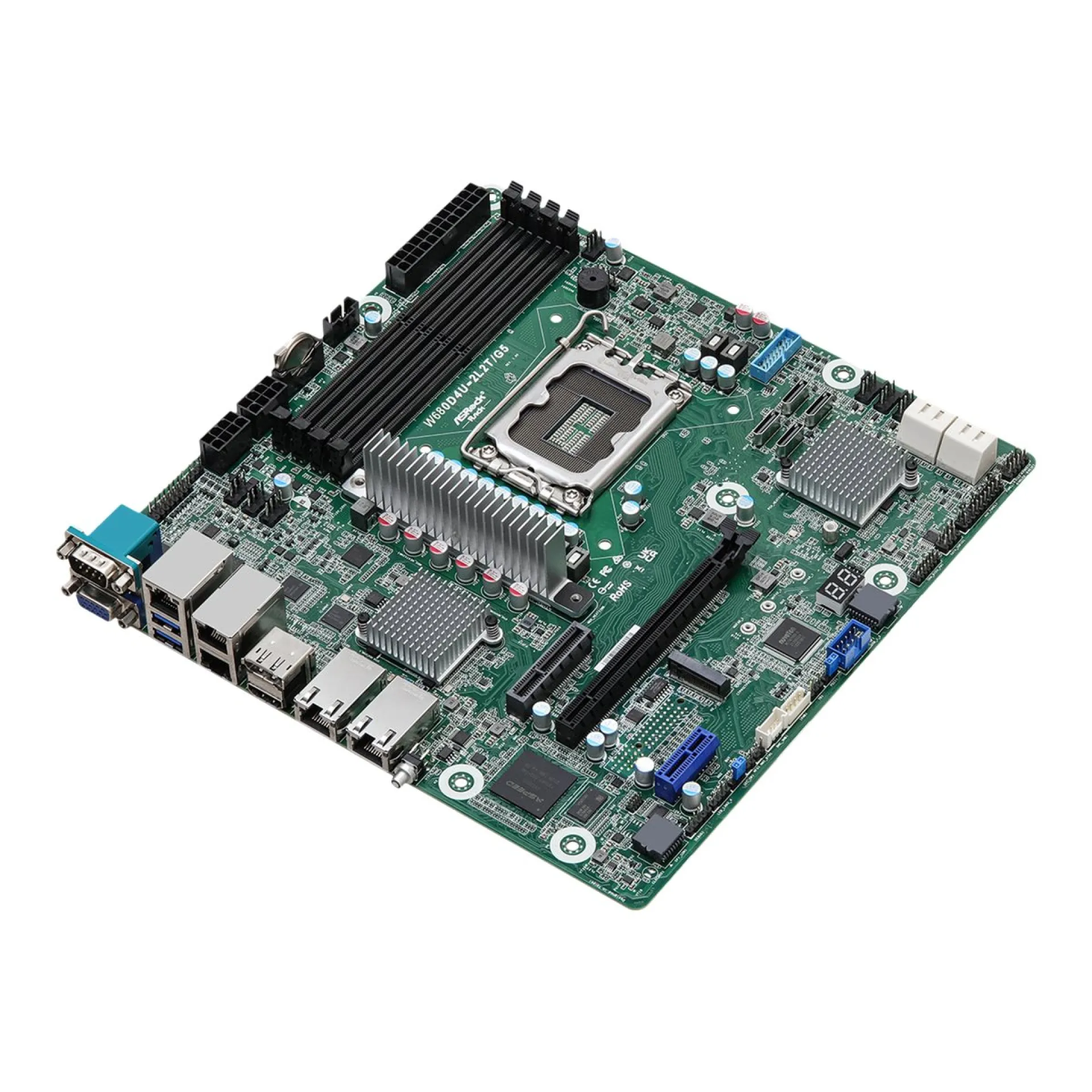

W680D4U-2L2T/G5

Micro-ATX Server Motherboard platform with Intel W680 management and high-speed I/O in the W680D4U-2L2T/G5

The W680D4U-2L2T/G5 is an ASRock Micro-ATX server motherboard built on the Intel W680 workstation/server chipset for LGA1700, aligning with 12th and 13th Gen Intel Core-class CPUs where single-socket efficiency and deterministic I/O matter. It is engineered for entry server deployments that need modern platform features without the overhead of dual-socket infrastructure.

With dual-channel DDR5 across 4 UDIMM slots, the W680D4U-2L2T/G5 supports up to 128GB and accepts ECC and non-ECC memory to match data-integrity requirements in SMB services and virtualization labs. PCIe Gen4 expansion provides multiple high-bandwidth paths for NICs, storage controllers, or accelerators, while storage is balanced between 4 SATA III ports for capacity tiers and an M.2 NVMe slot (PCIe 3.0 x4) for low-latency OS or cache. Integrated BMC/IPMI enables out-of-band control for remote sites, and multi-display outputs plus serial simplify staging and troubleshooting.

Why Choose the W680D4U-2L2T/G5?

The W680D4U-2L2T/G5 delivers a strong density-to-performance profile by combining LGA1700 compute, DDR5 memory, and enterprise management in a compact Micro-ATX footprint. Its 2 x 10GbE plus 2 x 1GbE topology supports segmented traffic and uplink flexibility, while PCIe Gen4 scalability makes it practical for phased upgrades in branch and SMB racks.

ASRock designs platforms such as the W680D4U-2L2T/G5 with a focus on electrical stability, serviceability, and sustained operation under mixed workloads, aligning board-level engineering with modern data centre expectations for remote manageability and predictable integration.

Key Applications:

Virtualization lab hosts
SMB file and print servers
Edge firewall and security appliances
Remote office compute nodes
Light database and application services

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment plan for the W680D4U-2L2T/G5, and an extended warranty of up to 6 years to protect long-lived infrastructure builds.

Technical details of W680D4U-2L2T/G5

CPU Socket:

V (LGA 1700)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Core i9 Core i7 Pentium Gold Celeron Core

Form Factor:

Micro-ATX

Chipset:

Intel W680

RAM Maximum Capacity:

128GB

Max RAM Frequency :

4400MHz

RAM Slots:

4 DIMM DDR5

RAM Channels:

Dual-Channel

M.2 Slots:

1 PCIe 3.0 x4 M.2 2230 M-Key

Network Ports:

2 RJ45 1 Gbps 2 RJ45 10 Gbps

ECC Support:

ECC Non-ECC

Onboard Network:

Ethernet

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x DisplayPort 1x HDMI 1x VGA

USB Ports:

2x USB 3.2 Gen 1 Header 2x USB 2.0 header 2x USB 3.2 Gen 1 Type-A

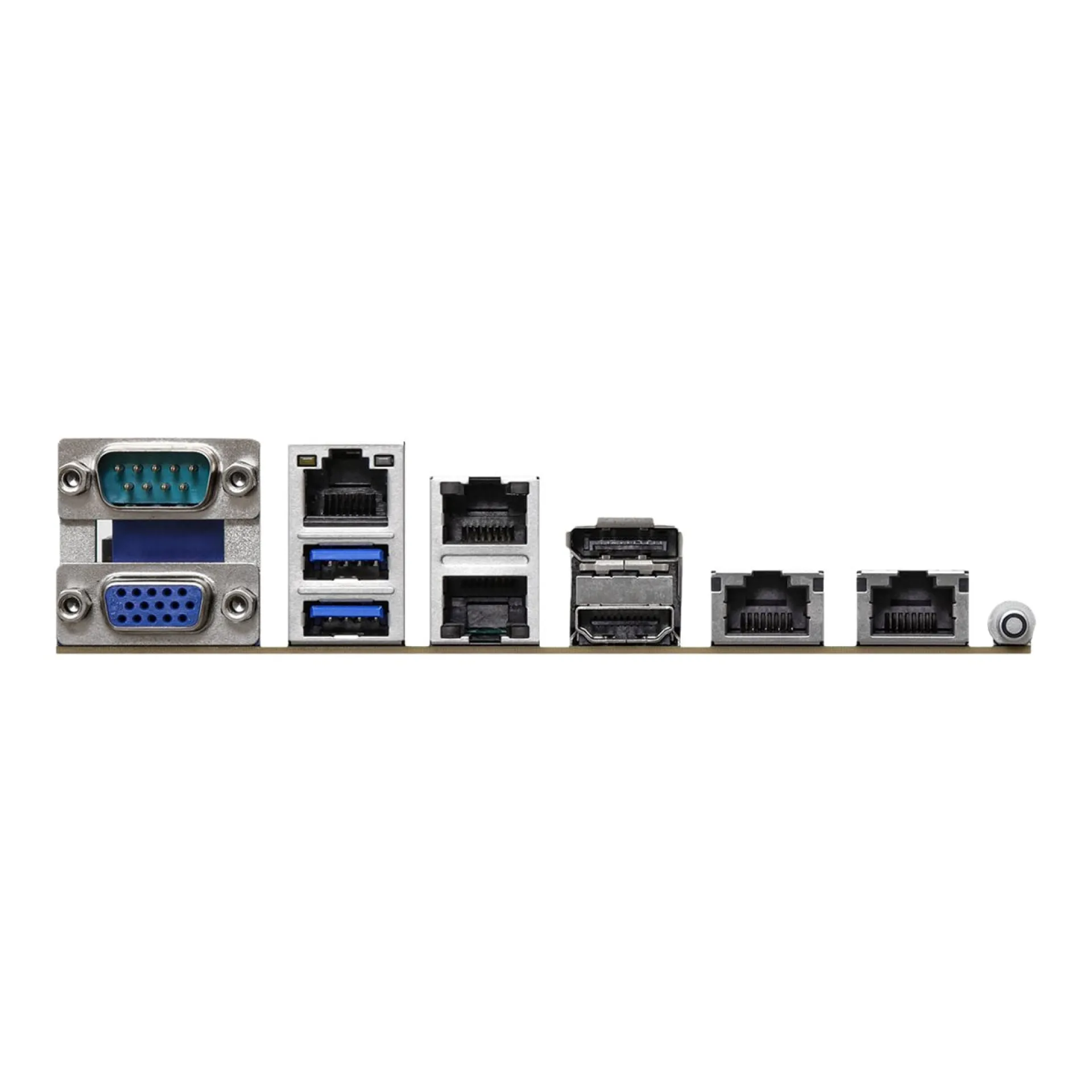

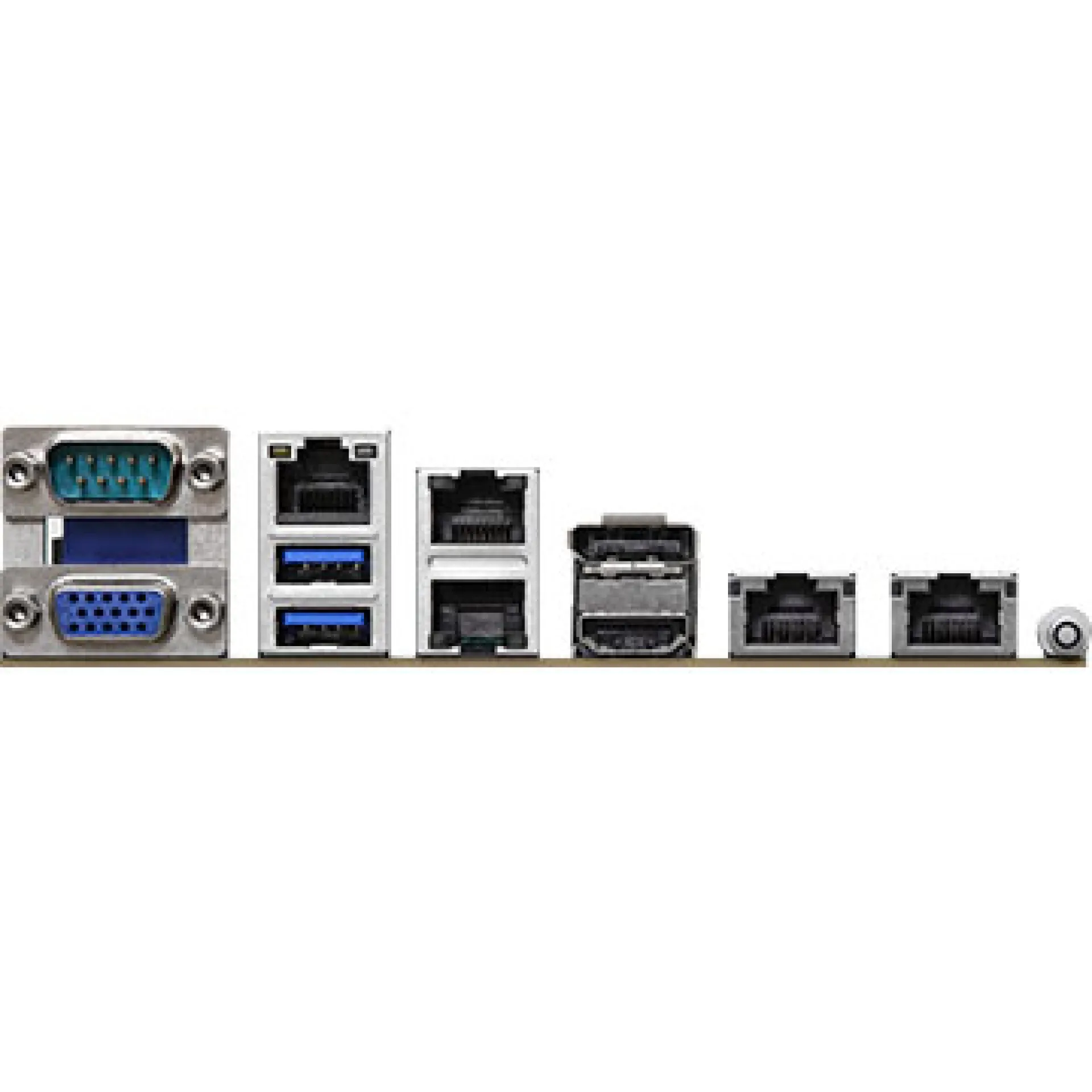

Other Ports:

2x LAN (10Gigabit Ethernet) 1x DisplayPort 1x serial 1x IPMI 2x USB 3.2 Gen 1 ports 2x LAN (Gigabit Ethernet) 1x HDMI port 1x VGA

BIOS:

AMI UEFI

Wi-Fi Support:

None

How long is the Warranty and how you can get technical support for W680D4U-2L2T/G5

Warranty:	12 months (part)
RMA Url:	https://www.asrock.com/support/?cat=RMA
Description:	Items must be returned first for RMA processing. No advanced replacements.
