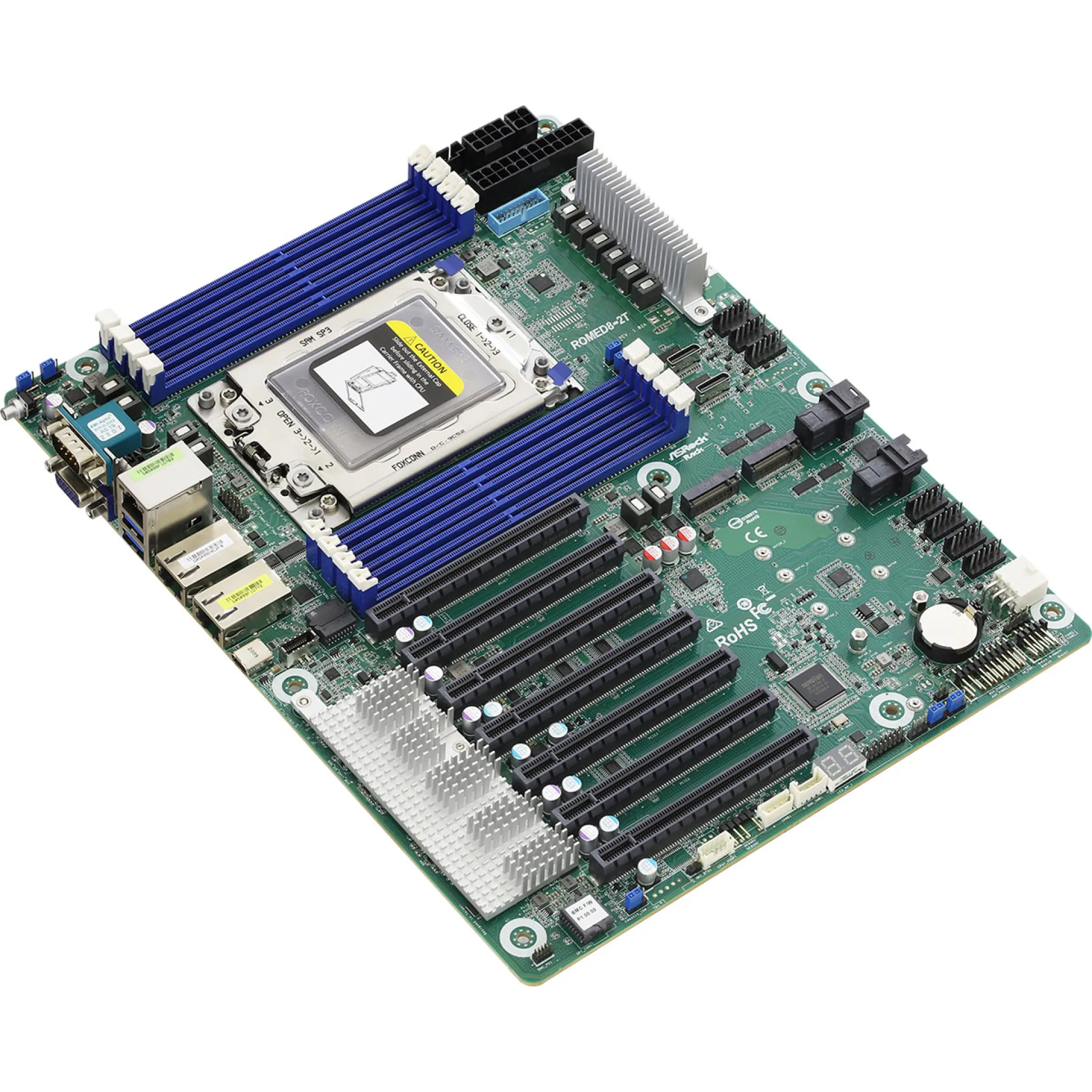

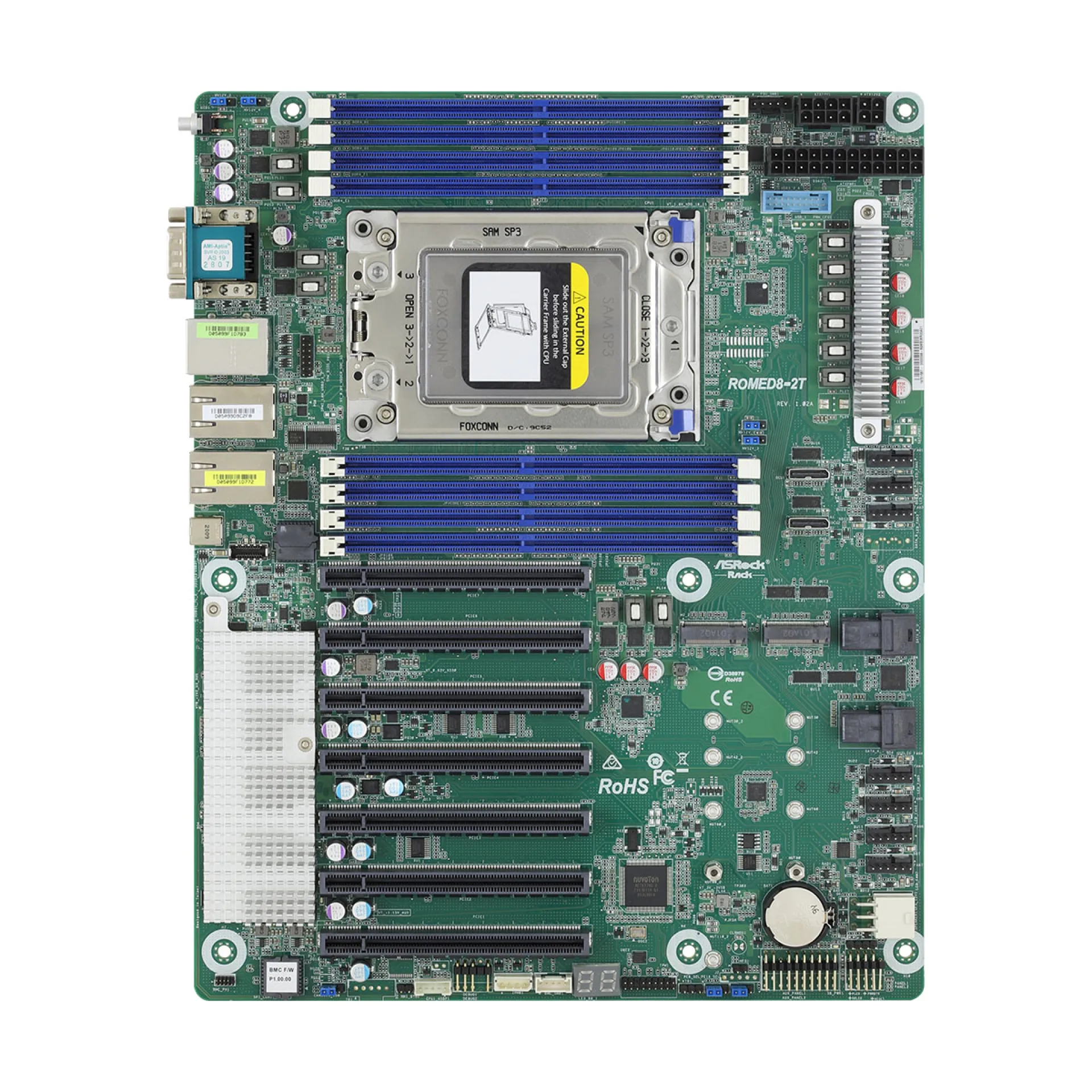

ROMED8-2T ASRock ATX Single SP3 (LGA 4094) 8 DIMM Slots Server Mainboard

High-Performance ATX Server Motherboard for Single-Socket AMD EPYC Platforms with the ROMED8-2T

The ROMED8-2T is an ATX SP3 motherboard engineered for 2nd and 3rd Gen AMD EPYC (Rome/Milan) processors, delivering a balanced single-socket design that prioritizes I/O density and predictable virtualization performance. With the EPYC SoC integrating high-bandwidth PCIe and memory controllers, the ROMED8-2T supports consolidation of compute, storage, and network functions without adding chipset latency or complexity.

For memory-intensive services, the ROMED8-2T provides 8x DDR4 DIMM slots supporting up to 2TB at up to 3200 MT/s, enabling high-VM density, in-memory databases, and infrastructure services with consistent bandwidth. Expansion is optimized around PCIe 4.0, exposing up to 7x x16 mechanical slots (lane allocation depends on CPU configuration) for NVMe adapters, accelerators, or high-port-count NICs. Storage connectivity combines 10x SATA with 2x M.2 (M-Key) PCIe 4.0 x4 for mirrored boot or low-latency cache tiers, while dual 10GbE RJ45 plus a dedicated 1GbE management interface align the platform to top-of-rack deployment models.

Why Choose the ROMED8-2T?

The ROMED8-2T is designed for organizations that need enterprise scalability from a single-socket footprint, maximizing PCIe Gen4 lanes for dense expansion while keeping platform management and serviceability straightforward. Its architecture fits private cloud nodes and I/O-heavy hosts where predictable throughput, remote lifecycle control, and efficient rack density are primary design constraints.

ASRock engineers platforms with data-center operational discipline, pairing robust power delivery and validated server components with standards-aligned management. Integrated AST2500 IPMI/BMC, AMI UEFI firmware, and TPM support help align the ROMED8-2T to controlled enterprise provisioning and security baselines.

Key Applications:

• Virtualization and private cloud compute nodes
• PCIe Gen4 NVMe storage hosts
• Software-defined storage and hyperconverged infrastructure
• High-memory-capacity database services
• Network appliance and edge aggregation platforms
