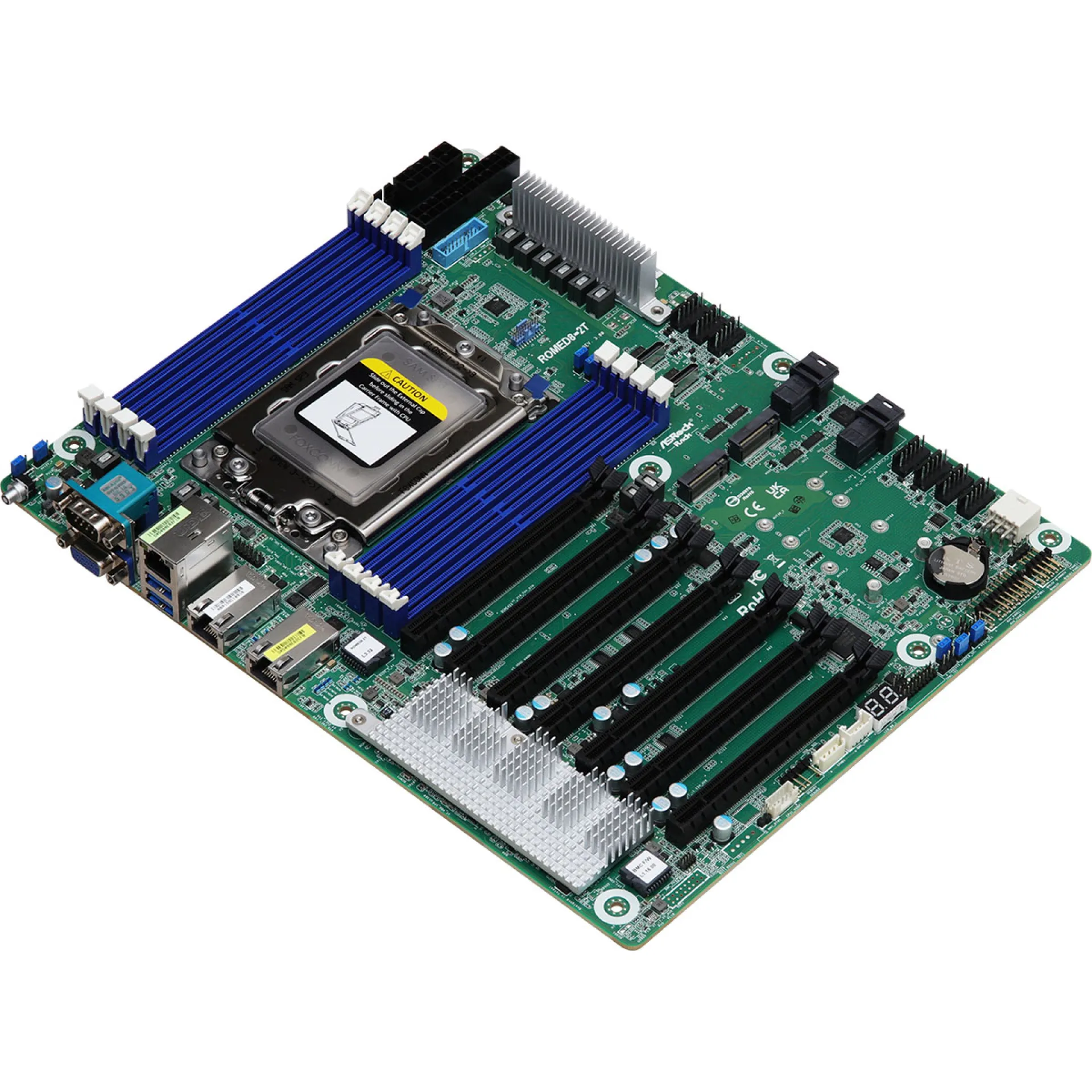

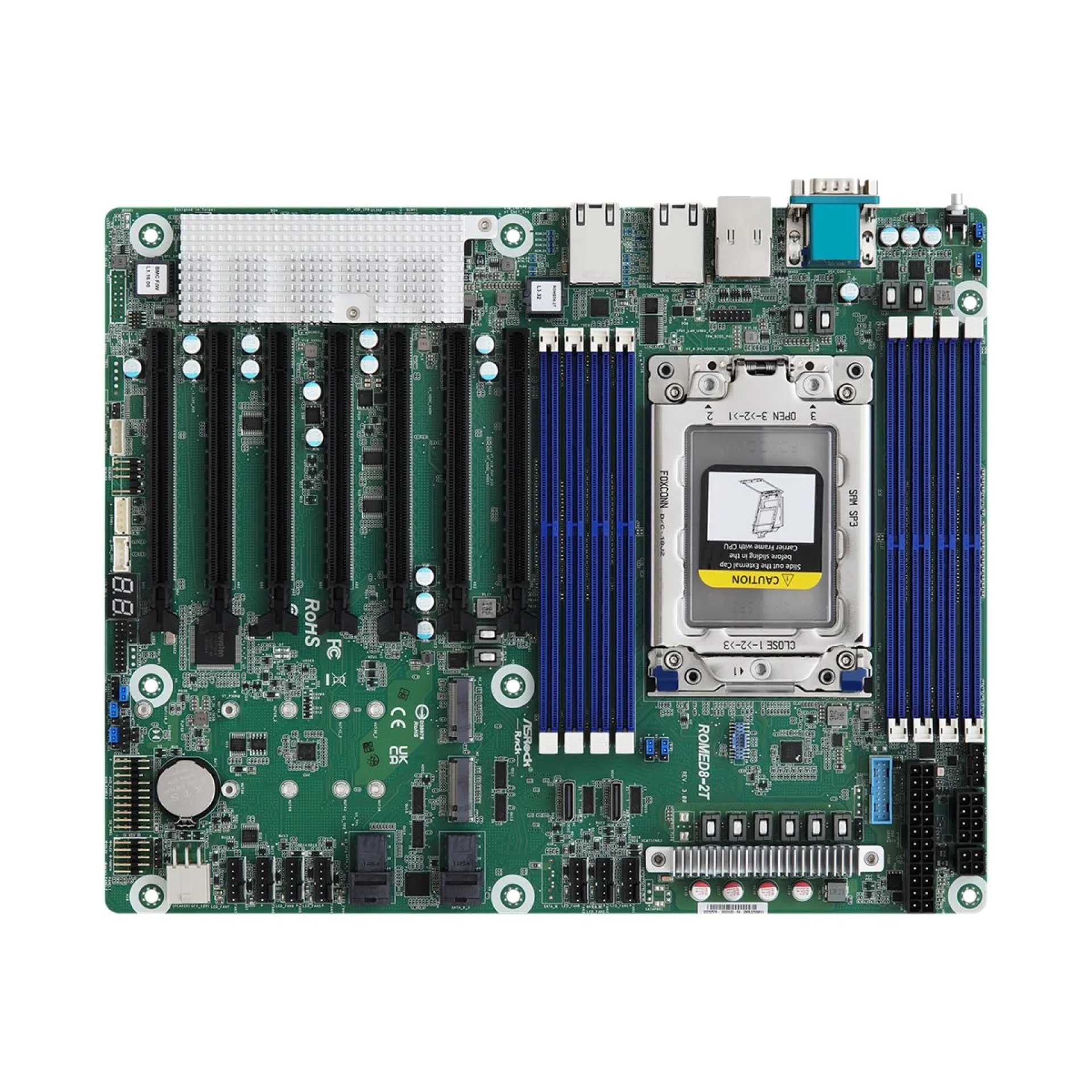

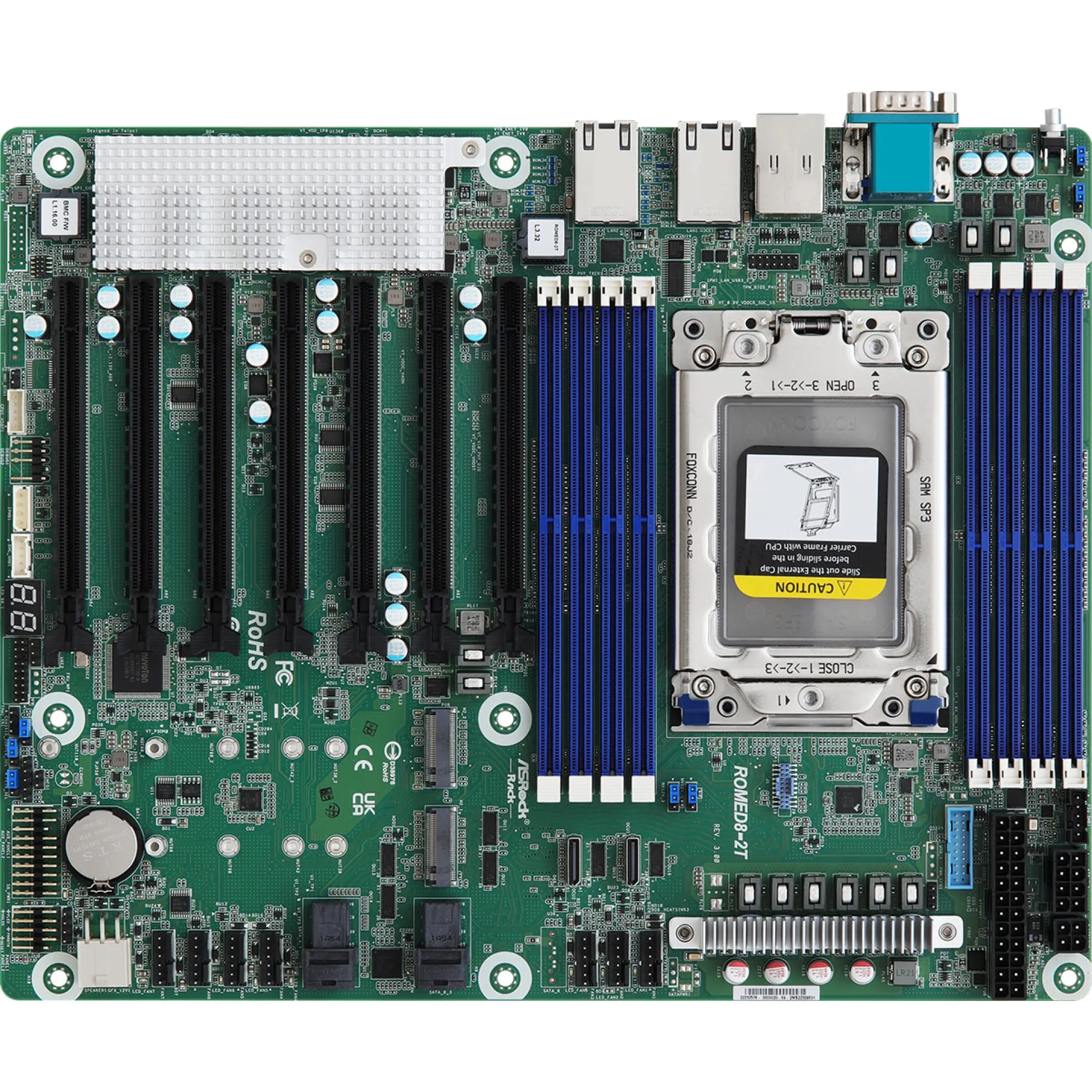

ROMED8-2T/BCM ASRock ATX Single SP3 8 DIMM Slots Mainboard

High-Performance ATX Server Motherboard for Single-Socket AMD EPYC with high I/O density using the ROMED8-2T/BCM

ROMED8-2T/BCM is an ATX server motherboard for the ASRock Rack ROMED8 platform, engineered around a single-socket AMD EPYC SP3 processor up to 225W TDP and designed for predictable scale-out performance. Its 8-channel DDR4-3200 ECC architecture with 8 DIMM slots supports memory bandwidth characteristics aligned to virtualization consolidation and storage-heavy compute, where consistent latency and error protection are mandatory.

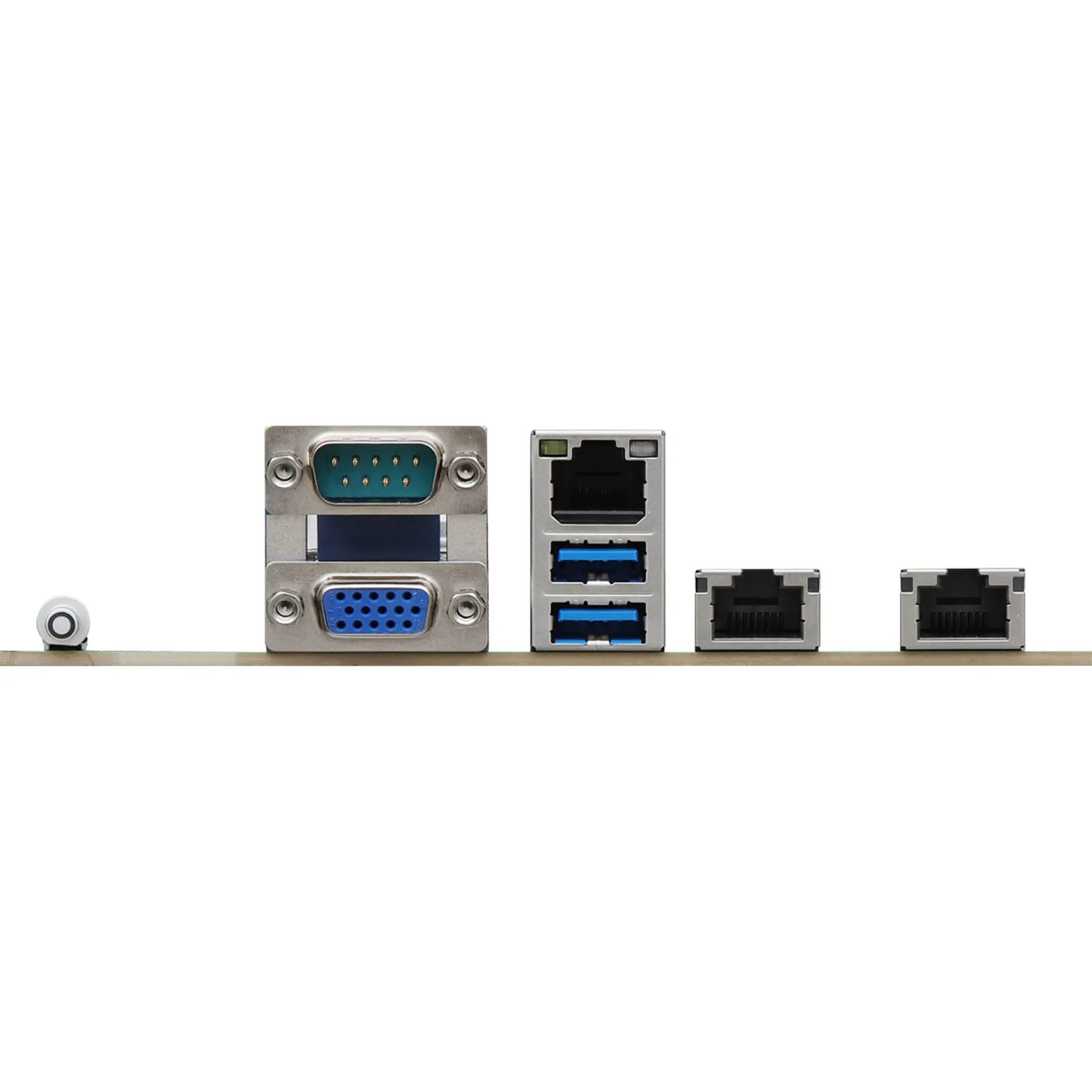

For expansion, ROMED8-2T/BCM provides 7 PCIe 4.0 x16 physical slots to sustain high-throughput accelerators, NICs, and storage controllers without forcing platform compromises. Storage connectivity is optimized for mixed NVMe and SATA topologies through OCuLink support, dual M.2 sockets, and multiple SATA options, enabling dense boot, cache, and data tiering within standard ATX chassis builds. Dual 10GbE RJ45 on Broadcom BCM57416 plus a dedicated management port allow clear separation of production traffic and out-of-band control.

Why Choose the ROMED8-2T/BCM?

ROMED8-2T/BCM delivers a strong density-to-performance profile by combining EPYC single-socket efficiency with PCIe 4.0 expansion headroom in an enterprise-friendly ATX form factor. The architecture supports scalable node standardization for private cloud and scale-out compute, while integrated BMC/IPMI management reduces operational overhead and accelerates remote provisioning, monitoring, and recovery.

ASRock Rack designs platforms such as ROMED8-2T/BCM with an engineering focus on server-grade power delivery, validated management firmware, and compatibility with modern data centre operational models. Integrated ASPEED AST2500 graphics and AMI BIOS with IPMI/ACPI/SMBIOS support help maintain consistency across fleet deployments and lifecycle maintenance.

Key Applications:

• Virtualization and private cloud nodes
• Scale-out compute clusters
• High-I/O NVMe/SATA storage servers
• Edge and branch office servers

At Happyware - Server Hardware you benefit from non-binding offers tailored to your ROMED8-2T/BCM deployment requirements and the option to extend warranty coverage up to 6 years to protect long-lived infrastructure rollouts.
