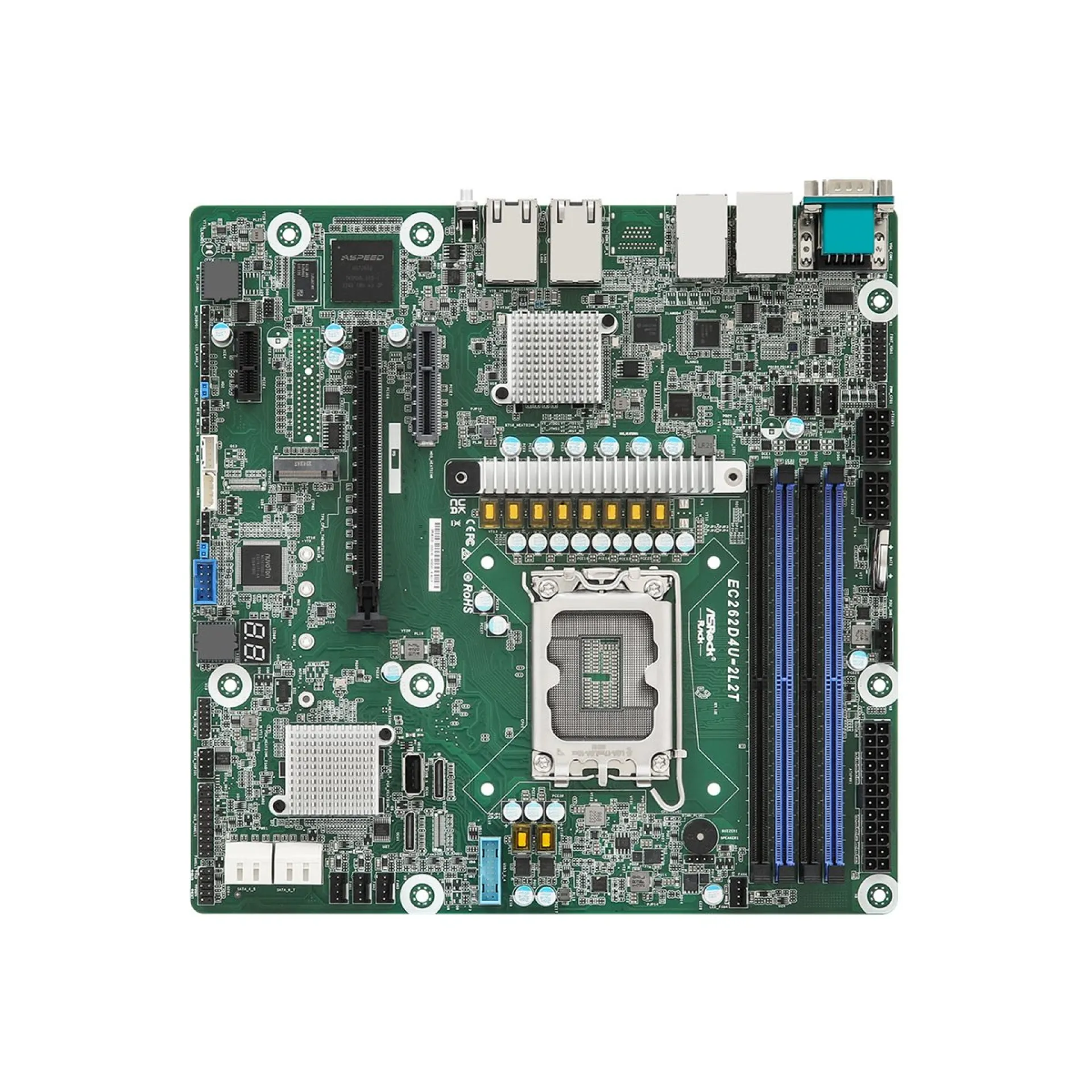

EC262D4U-2L2T
High-Density microATX Server Motherboard platform for edge and rack nodes with the EC262D4U-2L2T
The EC262D4U-2L2T is an Intel C262 (LGA1700) server motherboard designed for compact infrastructure servers that still require enterprise-class I/O and remote management. It supports Intel Xeon and Pentium Gold processors and pairs them with DDR5 dual-channel ECC UDIMM, enabling predictable performance and memory integrity for virtualization, mixed I/O services, and remote workstation nodes.
For expansion planning, the EC262D4U-2L2T combines a PCIe 5.0 x16 slot for high-throughput accelerators or modern NICs with additional PCIe 4.0 lanes for balanced peripheral growth. Storage architecture is optimized for flexible boot and data tiers, offering SATA 6Gb/s with onboard RAID 0/1/5/10, plus PCIe 4.0 M.2 and PCIe 4.0 OCuLink to attach multiple NVMe devices while maintaining airflow-friendly cabling in short-depth chassis. Integrated IPMI/BMC management reduces hands-on time across distributed sites.
Why Choose the EC262D4U-2L2T?
The EC262D4U-2L2T delivers a strong density-to-performance ratio by consolidating compute, high-speed networking, and manageability into a microATX footprint suited to edge racks and space-constrained datacenters. With 2x10GbE plus 2x1GbE, it supports segmented traffic for storage, VM networks, and management, while ECC DDR5 and platform RAID improve service continuity and operational reliability as deployments scale.
ASRock engineers this platform with a practical enterprise focus: validated server silicon, consistent firmware behavior, and standards-aligned remote administration via AST2600 IPMI to fit modern monitoring and lifecycle workflows. The EC262D4U-2L2T is built to integrate cleanly into repeatable node designs.
Key Applications:
- Edge and branch infrastructure servers
- Virtualization hosts
- Mixed I/O application servers
- Remote workstation nodes
- General-purpose datacenter compute nodes
At Happyware - Server Hardware you benefit from non-binding offers tailored to the EC262D4U-2L2T configuration you need and extended warranty options up to 6 years to secure long-lived edge and rack deployments.
Technical details of EC262D4U-2L2T
How long is the Warranty and how you can get technical support for EC262D4U-2L2T
| Warranty: | 12 months (part) |
|---|---|
| RMA Url: | https://www.asrock.com/support/?cat=RMA |
| Description: | Items must be returned first for RMA processing. No advanced replacements. |
| Support Portal: | https://support.happyware.com |
|---|
