ALTRAD8UD-1L2T/Q64-22 ASRock deep micro ATX Single LGA 4926 8 DIMM Slots Server Mainboard

High-Density deep microATX server motherboard featuring Ampere Altra ARM scale-out I/O with the ALTRAD8UD-1L2T/Q64-22

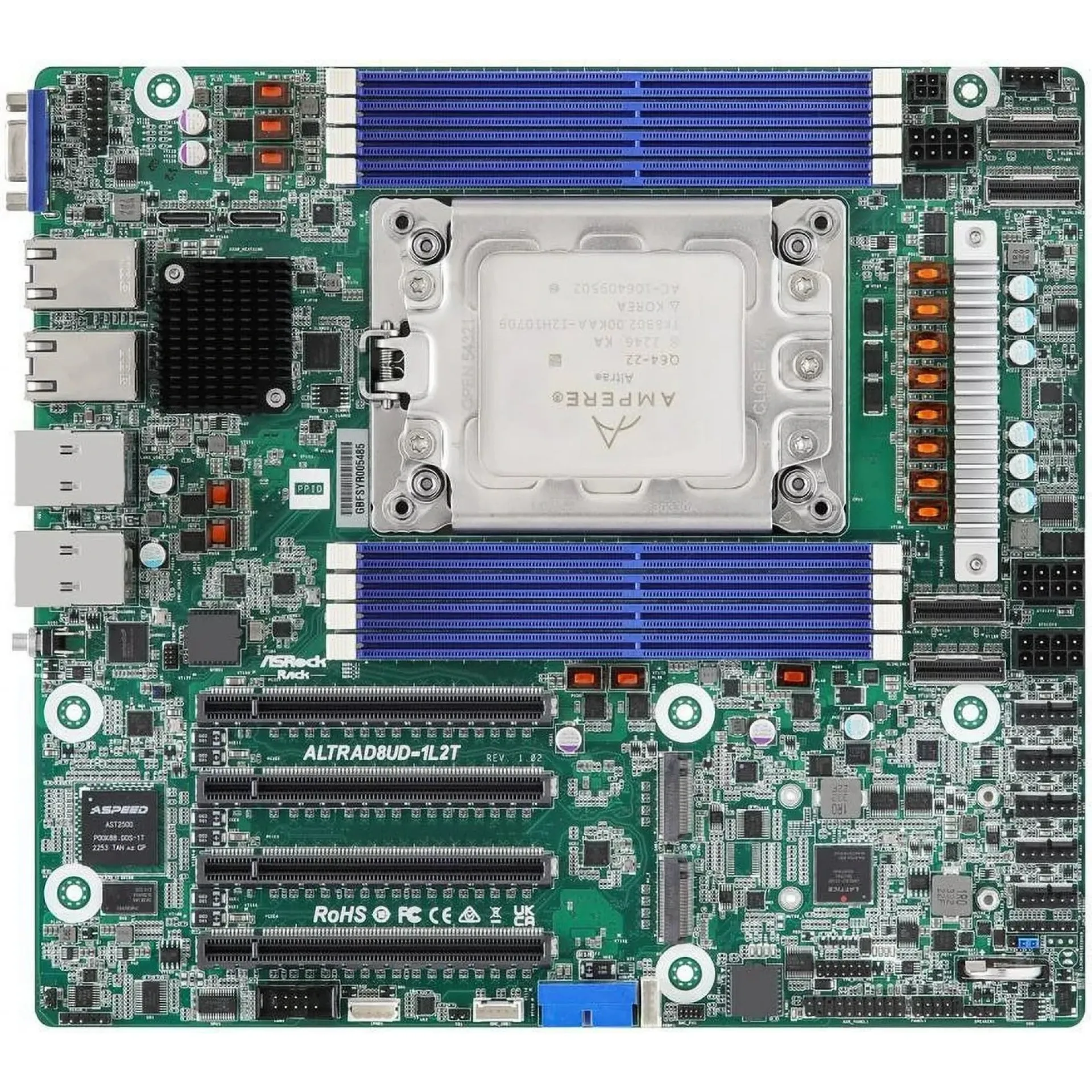

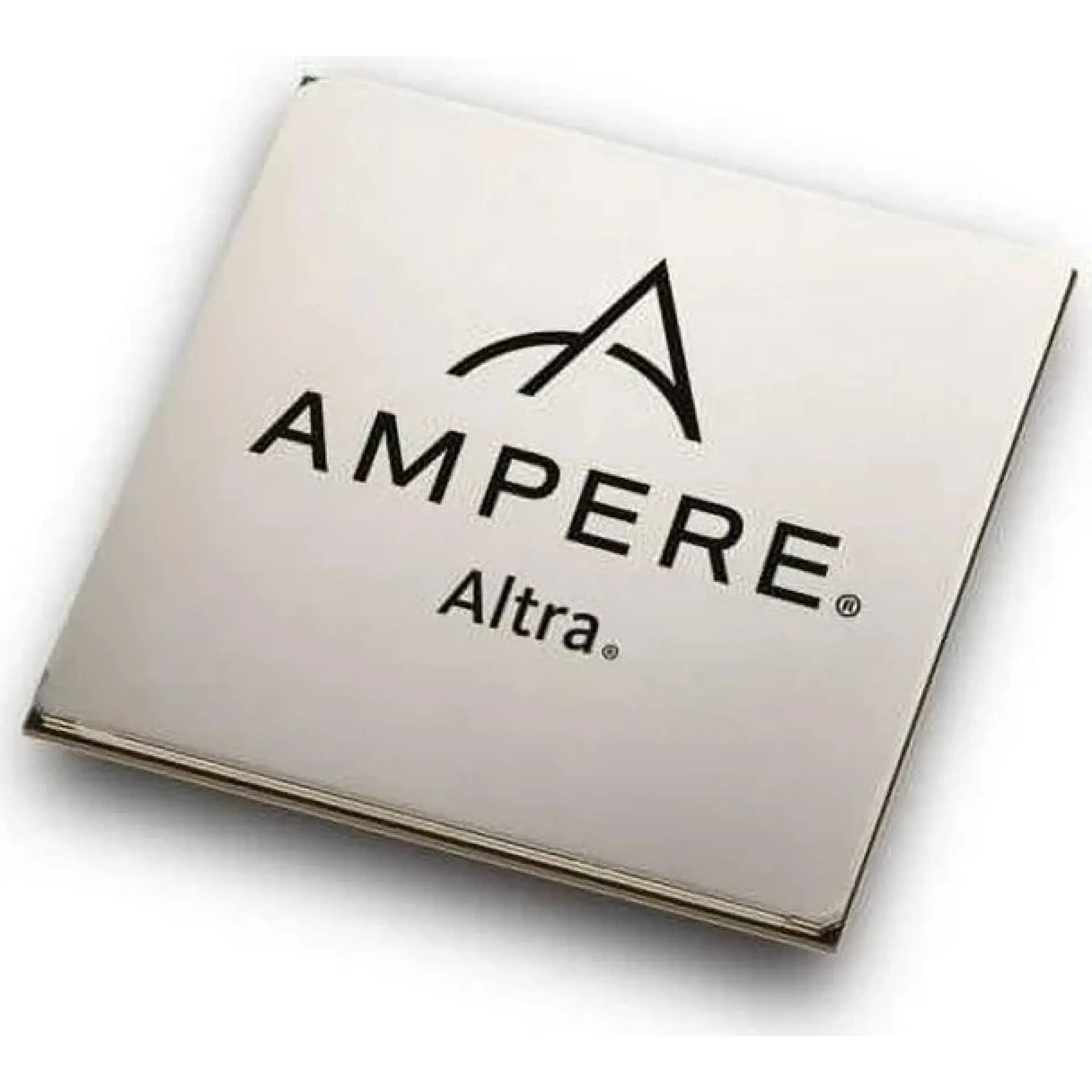

The ALTRAD8UD-1L2T/Q64-22 is a deep microATX server motherboard built around a single-socket Ampere Altra (ARM) LGA4926 SoC platform, engineered for predictable performance-per-watt in cloud-native and infrastructure services. Its DDR4-3200 memory design provides 8 DIMM channels up to 256GB, supporting throughput-balanced container hosts, lightweight virtualization, and control-plane services where consistent latency and core isolation matter.

For expansion, the ALTRAD8UD-1L2T/Q64-22 delivers PCIe Gen4 I/O through 4 x PCIe 4.0 x16 physical slots, enabling high-bandwidth NICs, DPUs, or accelerator-class adapters without compromising lane availability. Storage is optimized for NVMe-centric topologies via 4 x SlimSAS and 2 x OCuLink for backplane attachment (chassis-dependent), complemented by dual M.2 (M-Key) 2230/2280 PCIe 4.0 x4 slots for OS or mirrored boot devices. Integrated connectivity includes 2 x 10GbE plus a dedicated 1GbE port, aligning the ALTRAD8UD-1L2T/Q64-22 with edge, CDN, and scale-out application tiers.

Why Choose the ALTRAD8UD-1L2T/Q64-22?

The ALTRAD8UD-1L2T/Q64-22 is designed for enterprise deployments that require dense compute nodes with straightforward scalability and stable platform behavior across large fleets. By combining an ARM SoC architecture with PCIe 4.0 bandwidth, it supports efficient node standardization for telecom and cloud-native stacks while retaining expansion headroom for evolving I/O and storage requirements.

ASRock engineering focuses on reliable server design with datacentre-ready manageability, integrating IPMI/BMC capabilities via ASPEED AST2500 and TPM support to align with operational security policies and remote lifecycle control.

Key Applications:

• Cloud-native container hosts
• Scale-out web and application tiers
• Edge and telecom network services
• vRAN and control-plane nodes
• Storage gateway and NVMe-backed controllers

At Happyware - Server Hardware you benefit from non-binding offers tailored to your ALTRAD8UD-1L2T/Q64-22 rollout and an extended warranty option up to 6 years to secure long-term platform operation in production environments.
