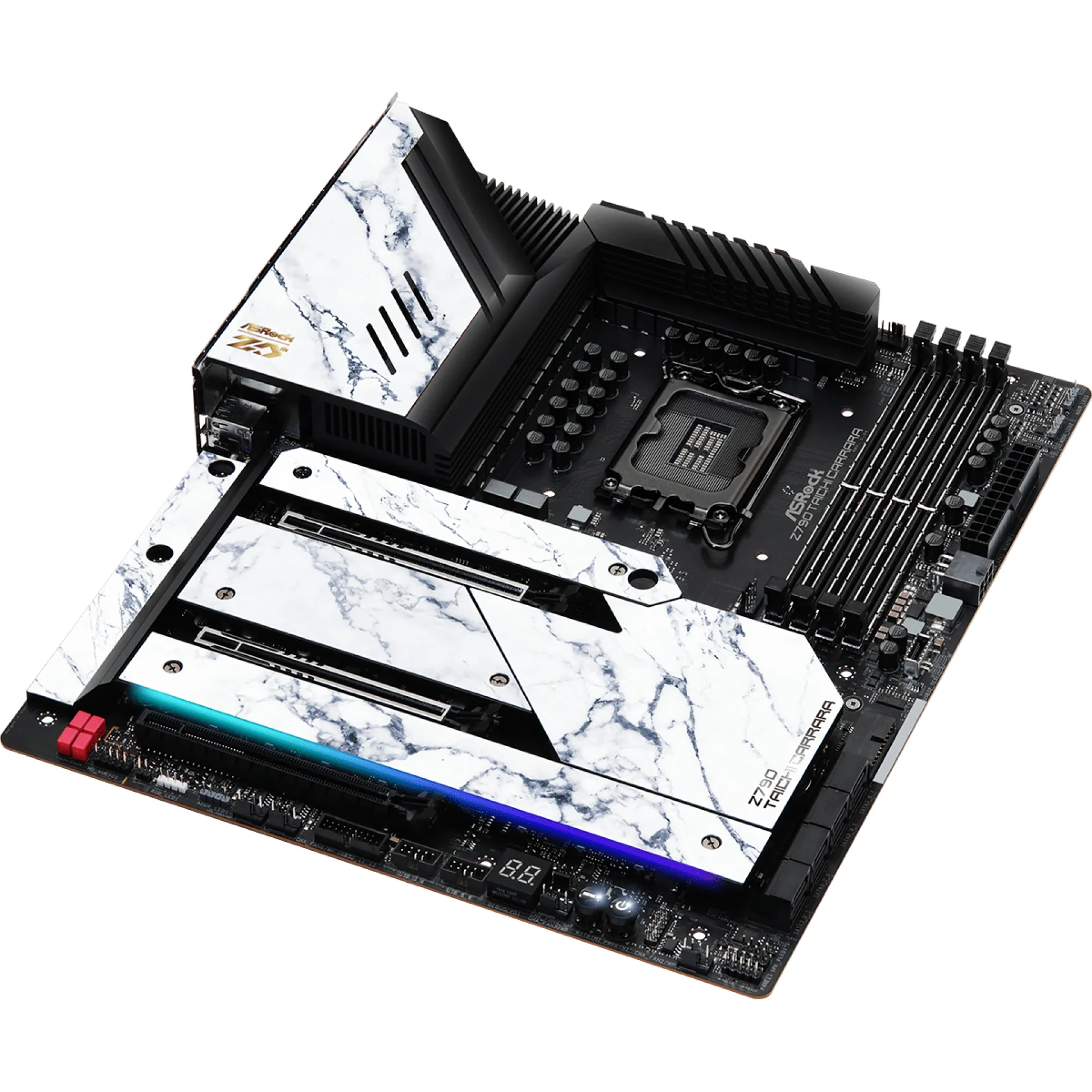

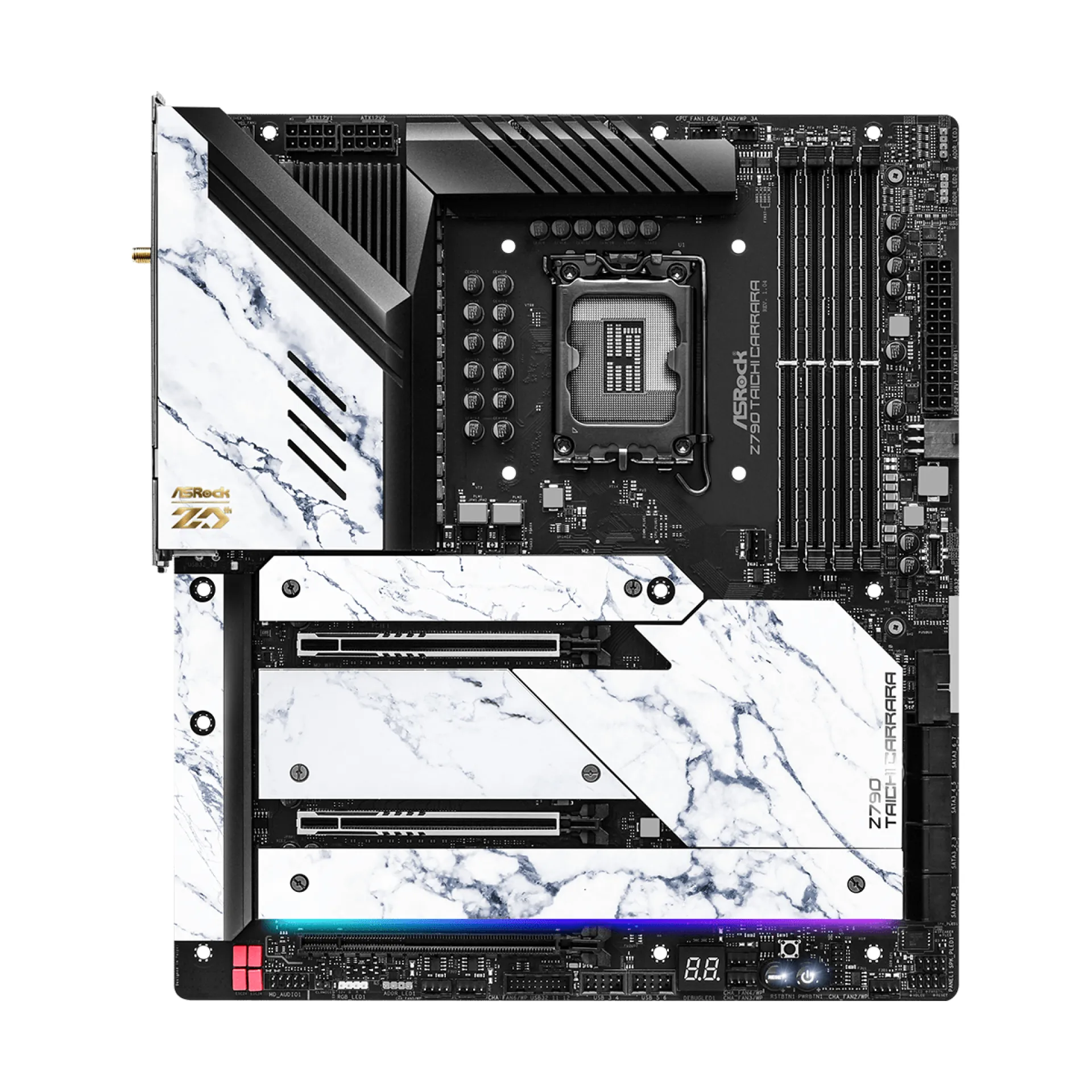

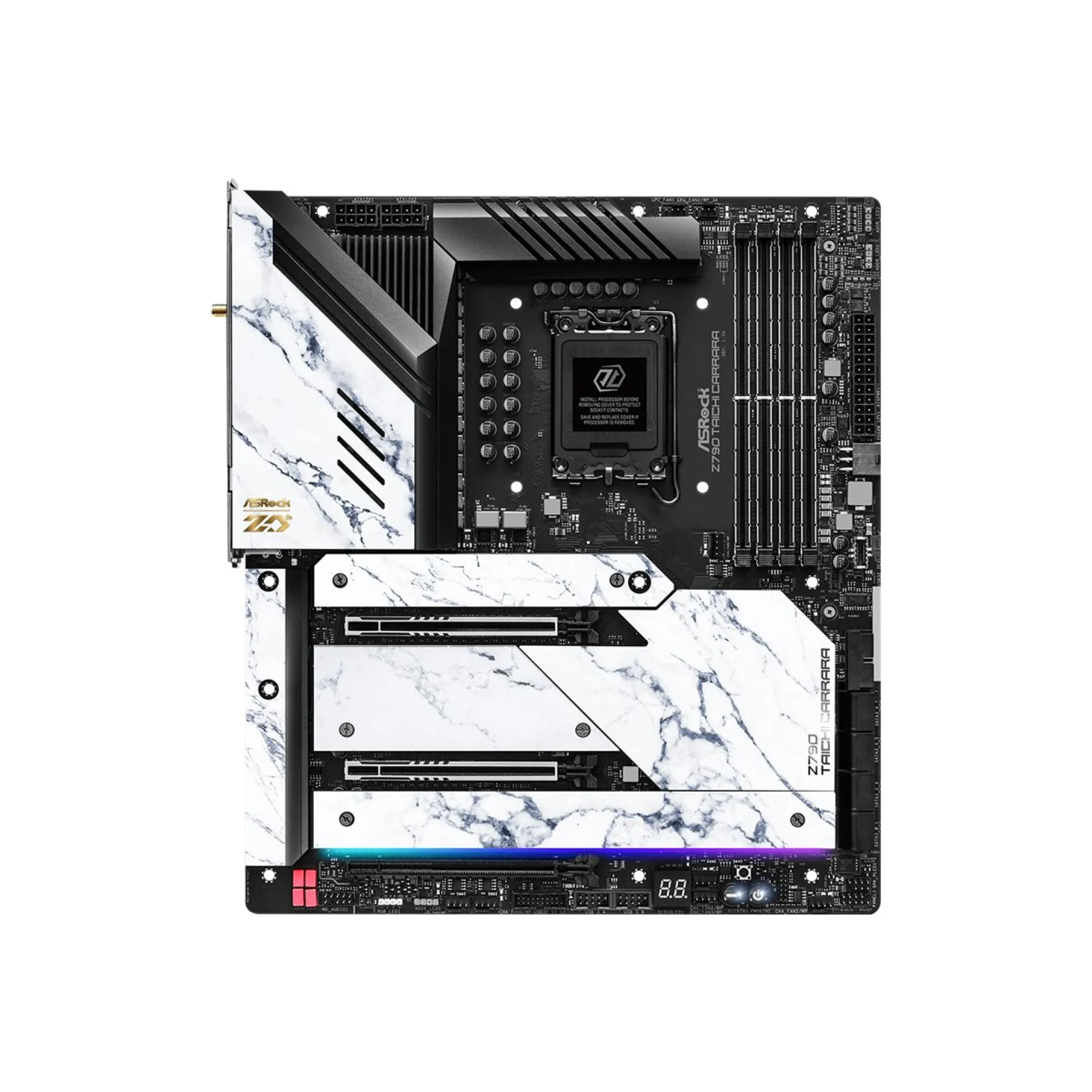

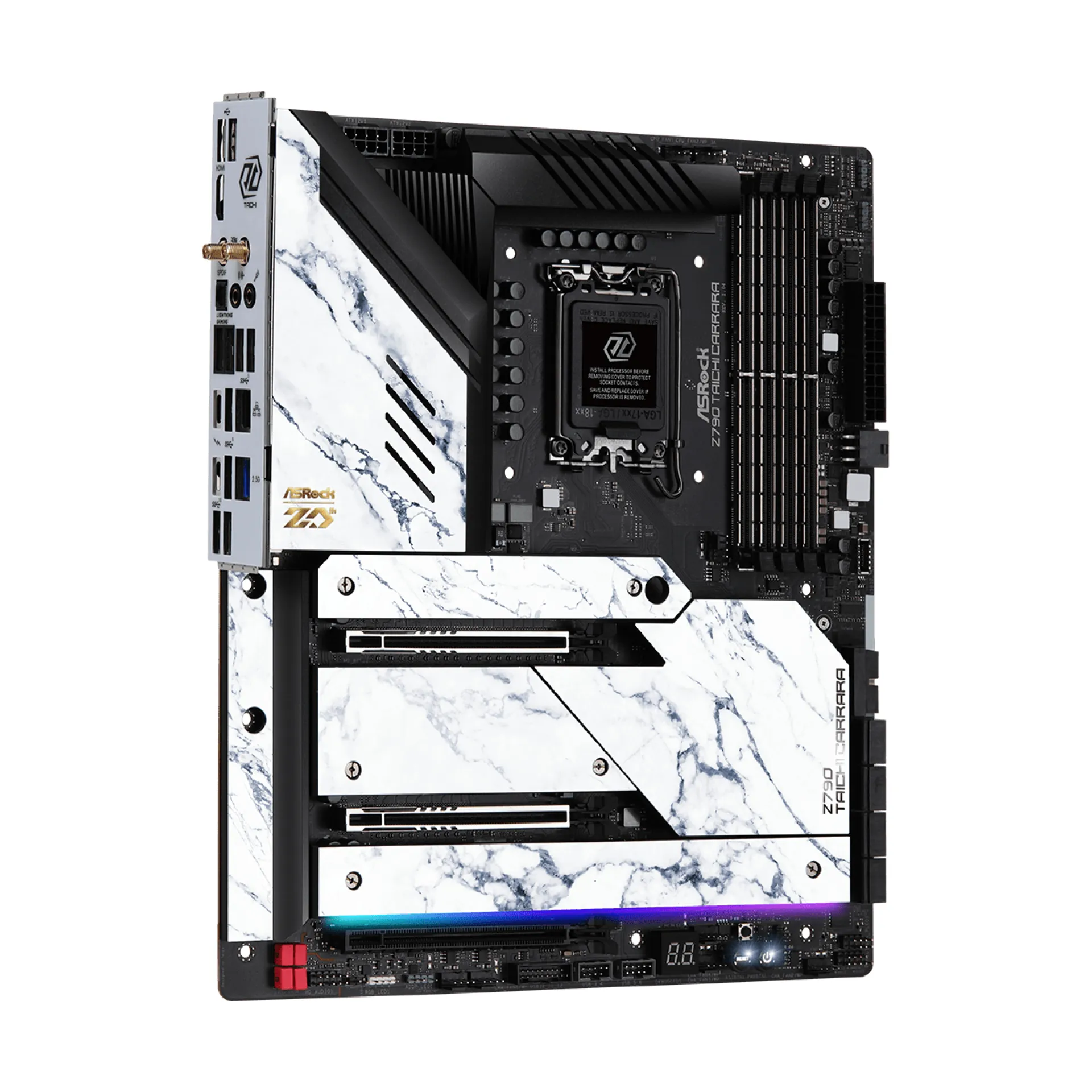

90-MXBKK0-A0UAYZ ASRock E-ATX Single V (LGA 1700) 4 DIMM Slots Mainboard
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
Taichi
Not available
Do you need help or a free consultation regarding our Services?
Your contact
90-MXBKK0-A0UAYZ
High-Performance E-ATX Workstation Motherboard featuring PCIe 5.0 and DDR5 scalability with the 90-MXBKK0-A0UAYZ
The 90-MXBKK0-A0UAYZ is an E-ATX motherboard built on the Intel Z790 chipset for Intel LGA1700 processors, targeting high-throughput workstation and developer desktop deployments where PCIe lane efficiency and memory bandwidth directly impact build times, render pipelines, and AI-assisted content workflows. Its DDR5 dual-channel design supports 4 DIMMs up to 192GB, enabling large in-memory datasets and multi-VM productivity without forcing early storage spillover.
For expansion, the 90-MXBKK0-A0UAYZ provides 2 PCIe 5.0 x16 full-height, full-length slots for modern GPUs or accelerators, plus a PCIe 4.0 x16 slot (x4 electrical) for high-speed add-in storage or capture/IO cards. Storage architecture is optimized for mixed scratch and capacity tiers with 1 PCIe 5.0 x4 M.2 and 4 PCIe 4.0 x4 M.2 sockets, complemented by 8 SATA 6Gb/s ports for bulk project repositories, local NAS-style arrays, or staging volumes with RAID support.
Why Choose the 90-MXBKK0-A0UAYZ?

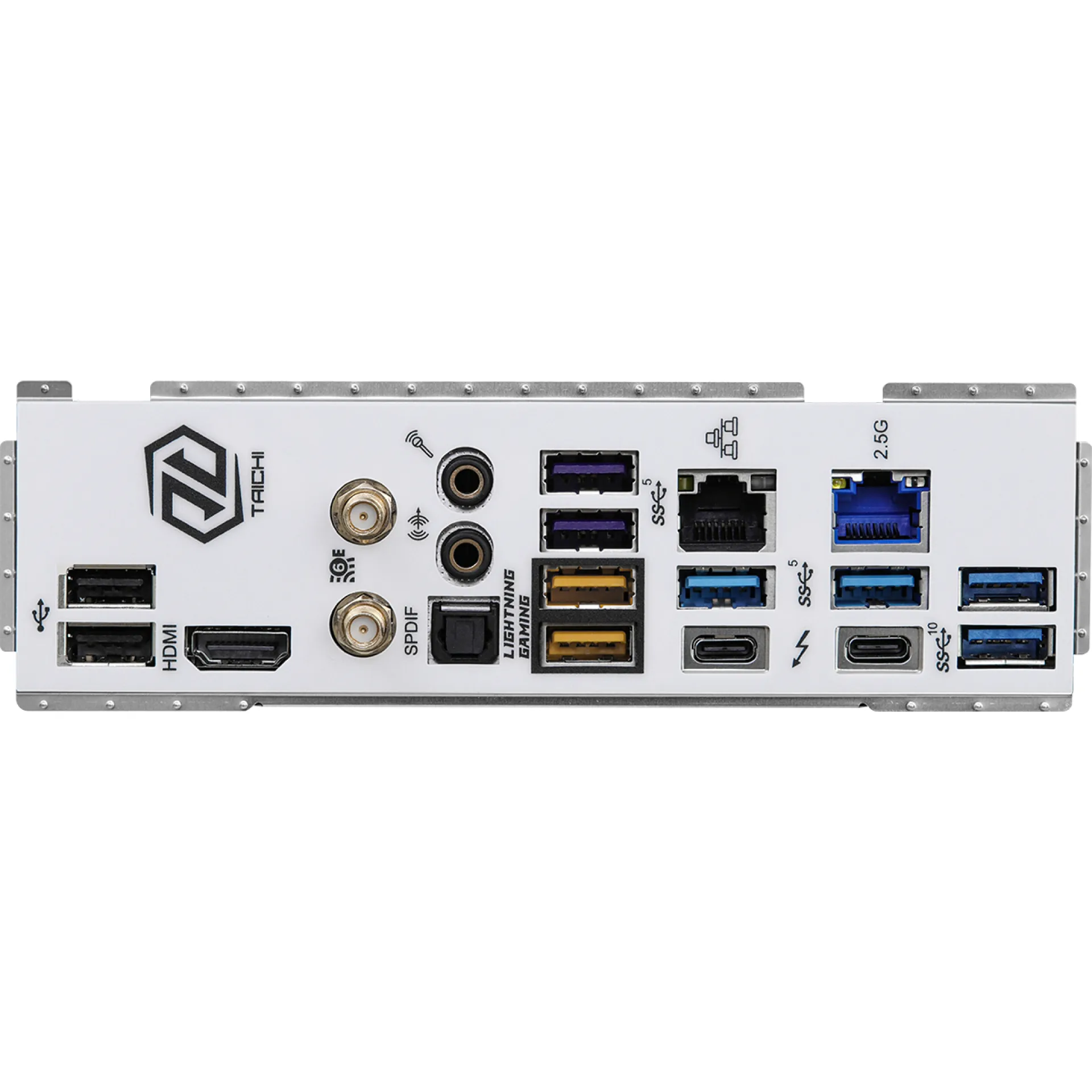

The 90-MXBKK0-A0UAYZ delivers a balanced density-to-performance profile by combining PCIe 5.0 GPU readiness, multi-M.2 NVMe scaling, and high DDR5 capacity in a single workstation board, reducing platform compromise when prioritizing both compute and IO. Dual Ethernet, Wi‑Fi 6E, and Thunderbolt 4 enable flexible deployment from desk-side creation to lab environments requiring fast peripheral and network integration.
ASRock designs this platform with enterprise-minded validation, signal integrity focus for high-speed DDR5 and PCIe links, and a UEFI management model aligned with modern device security requirements, including an optional TPM header for policy-driven endpoint baselines.
Key Applications:
- Content creation workstations
- Software development and build servers
- GPU-accelerated compute desktops
- High-speed NVMe scratch and cache tiers
- Virtualized lab environments
At Happyware - Server Hardware you benefit from non-binding offers tailored to your workstation platform requirements and an extended warranty up to 6 years, helping you standardize the 90-MXBKK0-A0UAYZ across teams with controlled lifecycle risk.
Technical details of 90-MXBKK0-A0UAYZ
How long is the Warranty and how you can get technical support for 90-MXBKK0-A0UAYZ
| Warranty: | 12 months (part) |
|---|---|
| RMA Url: | https://www.asrock.com/support/?cat=RMA |
| Description: | Items must be returned first for RMA processing. No advanced replacements. |
| Support Portal: | https://support.happyware.com |
|---|
