90-MXBJJ0-A0UAYZ ASRock Micro-ATX Single V (LGA 1700) 2 DIMM Slots Mainboard
Get extra volume discount for 90-MXBJJ0-A0UAYZ and save cash:
| Quantity | Unit price |
|---|---|
| To 19 |
€86.70
|
| To 49 |
€79.80
€86.70
(7.96% saved)
|
| To 99 |
€73.70
€86.70
(14.99% saved)
|
| From 100 |
€69.40
€86.70
(19.95% saved)
|
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
€86.70
Do you need help or a free consultation regarding our Services?
Your contact
90-MXBJJ0-A0UAYZ

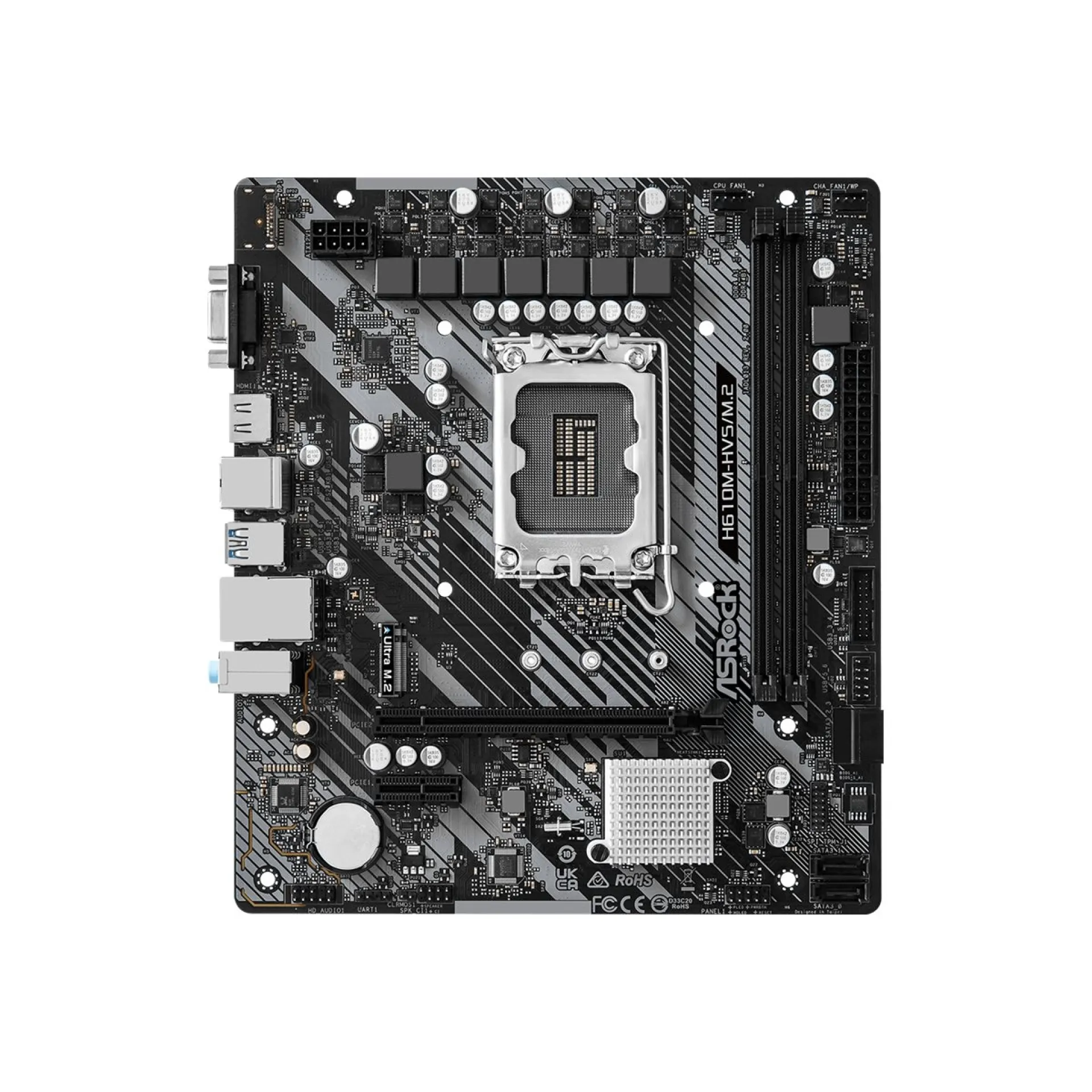

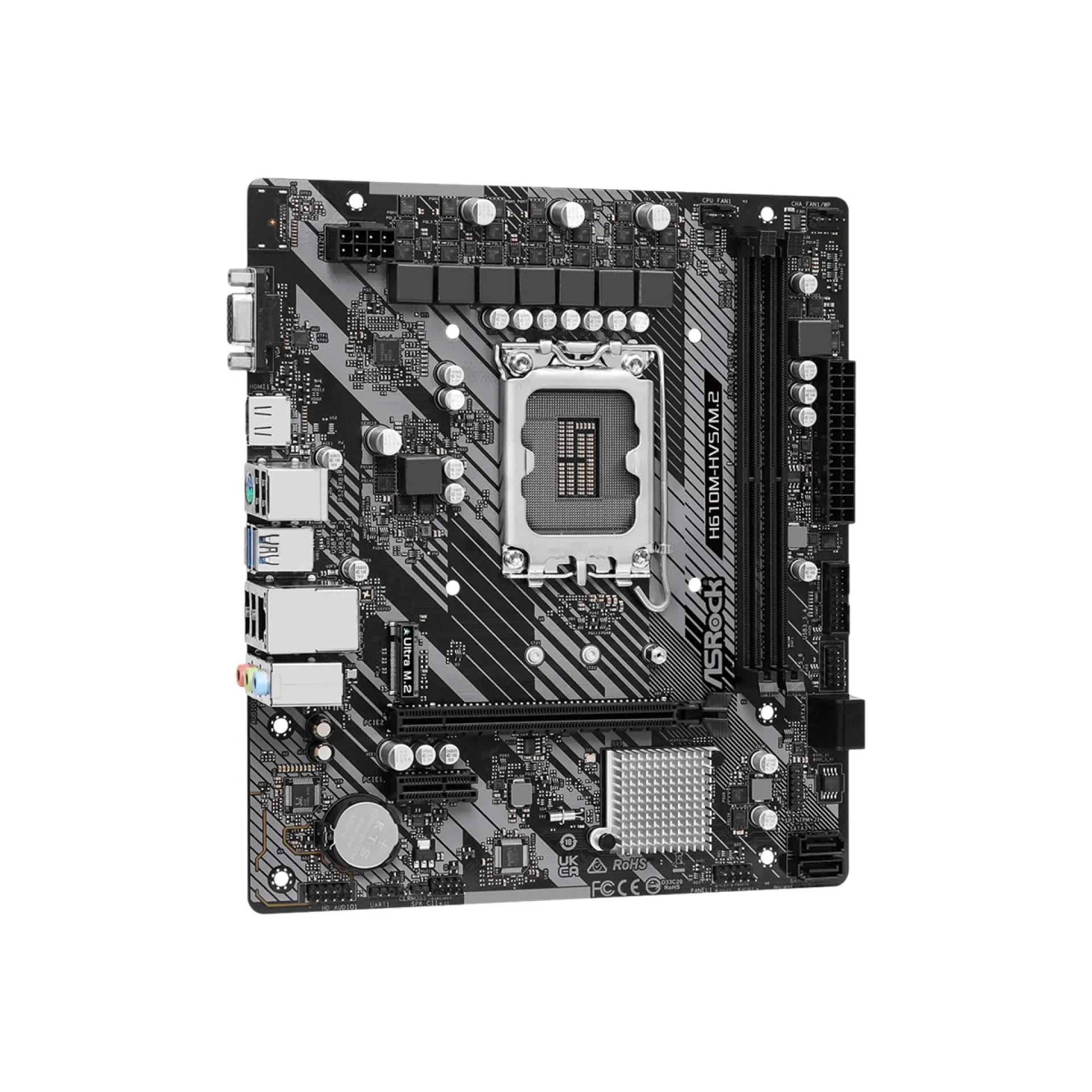

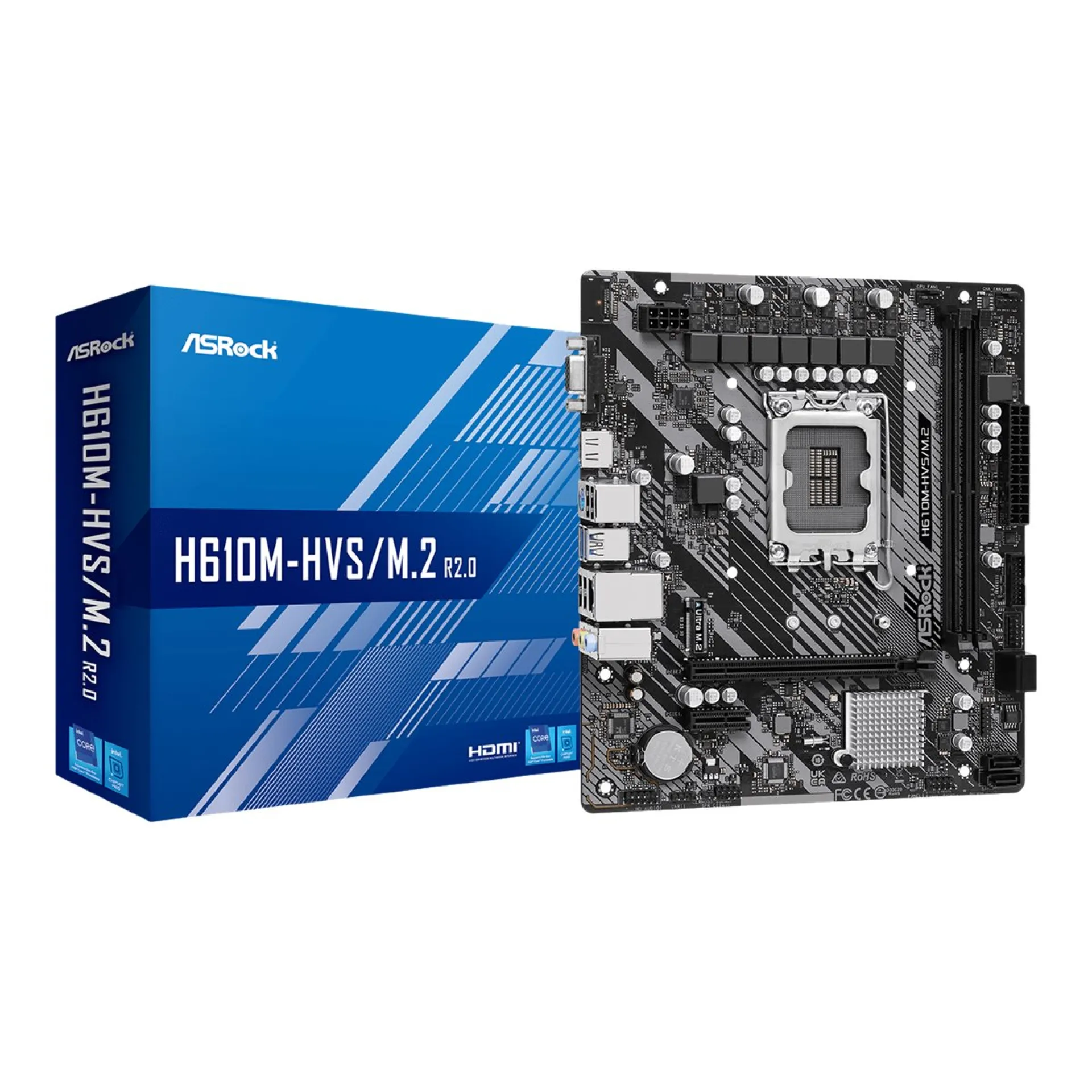

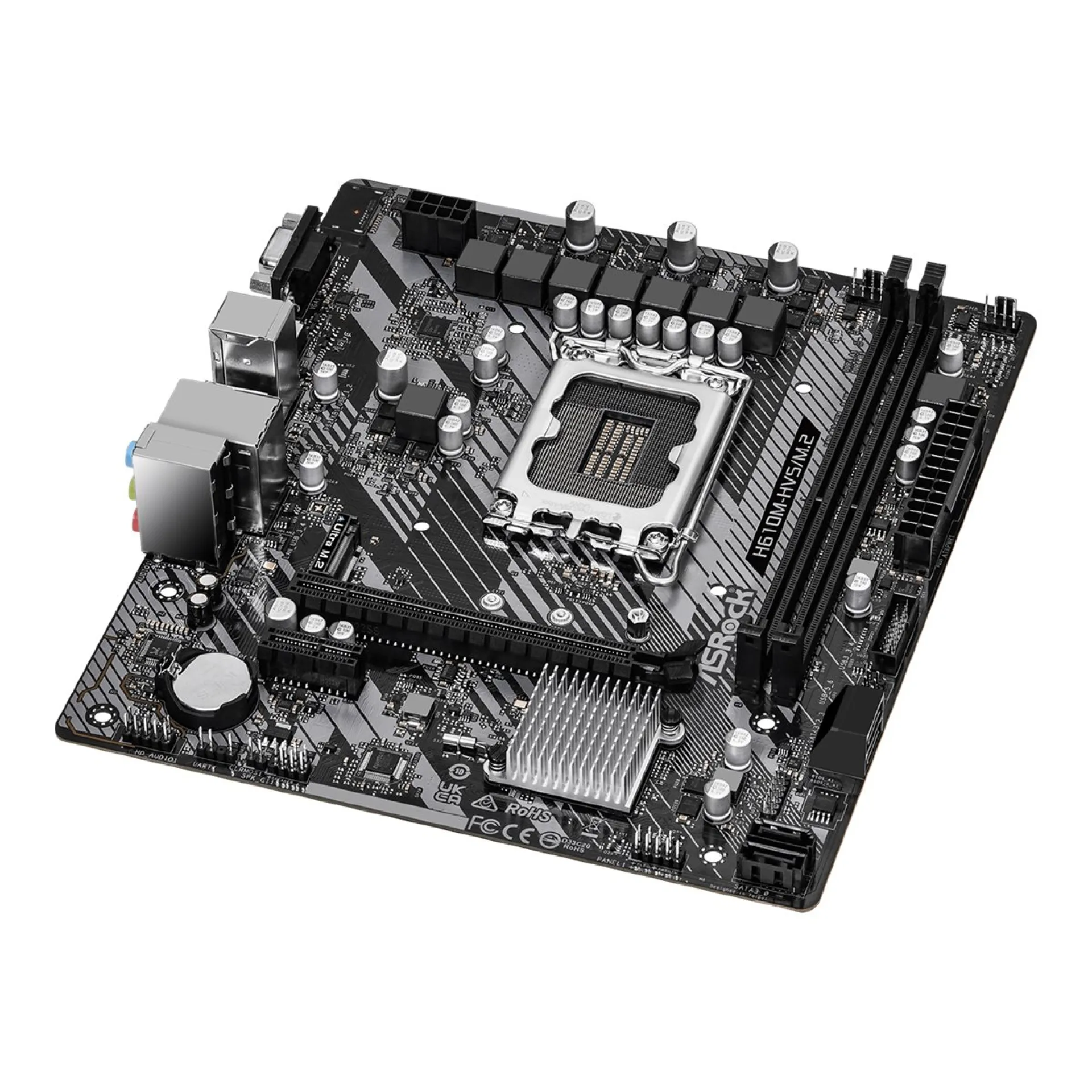

Micro-ATX Intel LGA1700 Platform Motherboard for Cost-Optimized Edge and Desktop Deployments with the 90-MXBJJ0-A0UAYZ
The 90-MXBJJ0-A0UAYZ is an ASRock Micro-ATX motherboard built on the Intel H610 chipset for LGA1700 processors, enabling standardized deployment of 12th/13th Gen class Intel Core, Pentium Gold, and Celeron CPUs. Its platform focus is predictable baseline performance for business desktops, lab validation nodes, and compact edge appliances where power and thermals are controlled and GPU requirements are limited to integrated graphics.
With dual-channel DDR4 memory via 2 DIMM slots (up to 64GB), the 90-MXBJJ0-A0UAYZ supports cost-efficient memory scaling for productivity workloads and lightweight virtualization. Expansion is architected around a PCIe 4.0 x16 slot for high-bandwidth add-in cards and a PCIe 3.0 x1 slot for auxiliary I/O. Storage topology combines an M.2 PCIe 3.0 x4 slot for OS or fast scratch with 4 SATA III ports for capacity tiers, supporting simple, serviceable boot and data separation without RAID dependencies.
Why Choose the 90-MXBJJ0-A0UAYZ?
The 90-MXBJJ0-A0UAYZ delivers a practical density-to-performance profile for fleets of standardized endpoints, balancing modern CPU support with constrained platform complexity. For IT teams, it provides clear scaling logic across CPU SKUs, consistent PCIe connectivity for NICs or accelerators, and UEFI-based provisioning aligned to repeatable imaging and configuration workflows.
ASRock engineers this platform with an emphasis on stable power delivery, validated firmware behavior, and component choices that match current data centre and enterprise lifecycle expectations, including UEFI management conventions and TPM header support for security-aligned builds.
Key Applications:
- Entry workstation and office desktop builds
- Edge gateway and appliance platforms
- Lab validation and developer test systems
- Basic network services and routing appliances
- Lightweight virtualization hosts
At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout scope for the 90-MXBJJ0-A0UAYZ, plus an extended warranty option up to 6 years to secure long service life in managed enterprise deployments.
Technical details of 90-MXBJJ0-A0UAYZ
How long is the Warranty and how you can get technical support for 90-MXBJJ0-A0UAYZ
| Warranty: | 12 months (part) |
|---|---|
| RMA Url: | https://www.asrock.com/support/?cat=RMA |
| Description: | Items must be returned first for RMA processing. No advanced replacements. |
| Support Portal: | https://support.happyware.com |
|---|
