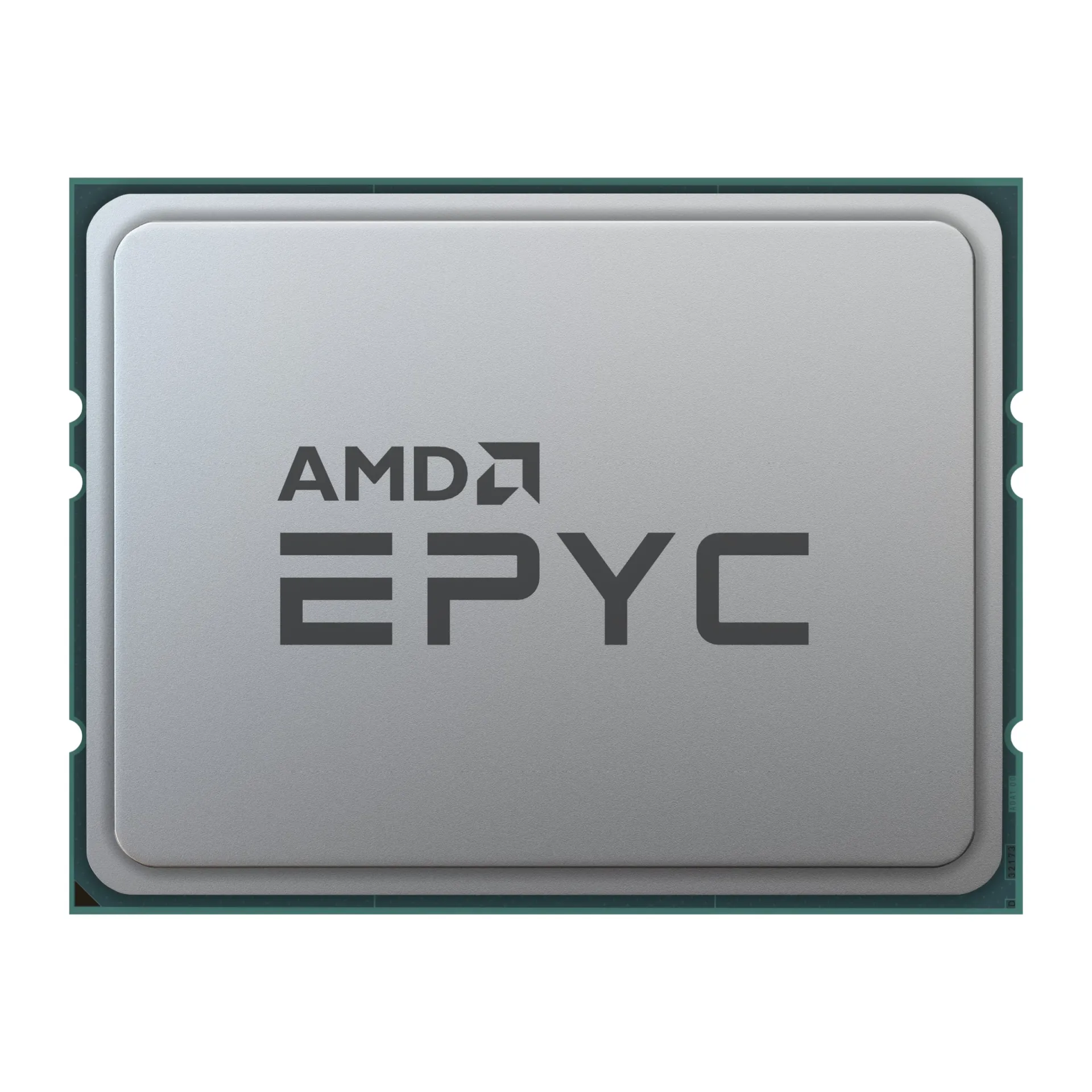

AMD EPYC 7763 64 Cores 128 Threads 3.5GHz SP3 (LGA 4094) 100-000000312 Server CPU

High-Density Server CPU Platform Architecture with AMD EPYC 7763 (SKU 100-000000312) for Virtualization and Scale-Out Compute

The AMD EPYC 7763 is a 3rd Gen EPYC 7003 “Milan” SP3 tray processor designed for enterprise 1-socket deployments while remaining fully aligned with 2-socket platforms when higher aggregate capacity is required. With 64 cores and 128 threads, the AMD EPYC 7763 targets VM consolidation and parallel compute where per-node throughput and predictable scheduling matter more than peak single-thread bursts.

For memory-intensive services, the AMD EPYC 7763 supports DDR4-3200 with ECC and scales up to 4 TB per CPU, enabling high-density private cloud nodes and in-memory analytics without constraining NUMA layouts. Its 128 PCIe 4.0 lanes provide the I/O headroom to architect NVMe-rich storage tiers and accelerator-heavy hosts while keeping lane allocation straightforward across NICs, NVMe backplanes, and GPU or FPGA expansion. Large on-die cache (32 MB L2, 256 MB L3) reduces external memory pressure in mixed workloads and improves throughput consistency for multi-tenant environments.

Why Choose the AMD EPYC 7763?

The AMD EPYC 7763 delivers a strong density-to-performance profile for organizations standardizing on fewer, higher-capacity nodes, reducing platform sprawl while preserving expansion. It supports scalable designs from single-socket cost-optimized hosts to 2-socket configurations for growth, with enterprise-grade virtualization features and security controls for controlled multi-tenant operation.

AMD engineers EPYC Milan processors around high core scalability, balanced memory bandwidth, and I/O-centric server design to match modern data centre topologies. The AMD EPYC 7763 integrates AMD-V, AMD Infinity Guard, and hardware-accelerated crypto (AES-NI, SHA) to support secure, policy-driven deployments across cloud, HPC, and data services.

Key Applications:

• Virtualization hosts and private cloud nodes
• HPC and scale-out parallel compute
• NVMe-based data services and storage tiers
• Accelerator-dense GPU or FPGA servers
• Secure multi-tenant infrastructure

At Happyware - Server Hardware you benefit from non-binding offers tailored to your AMD EPYC 7763 rollout, enabling consistent platform sizing across clusters, and you can extend the warranty up to 6 years to protect long-lifecycle compute deployments.
