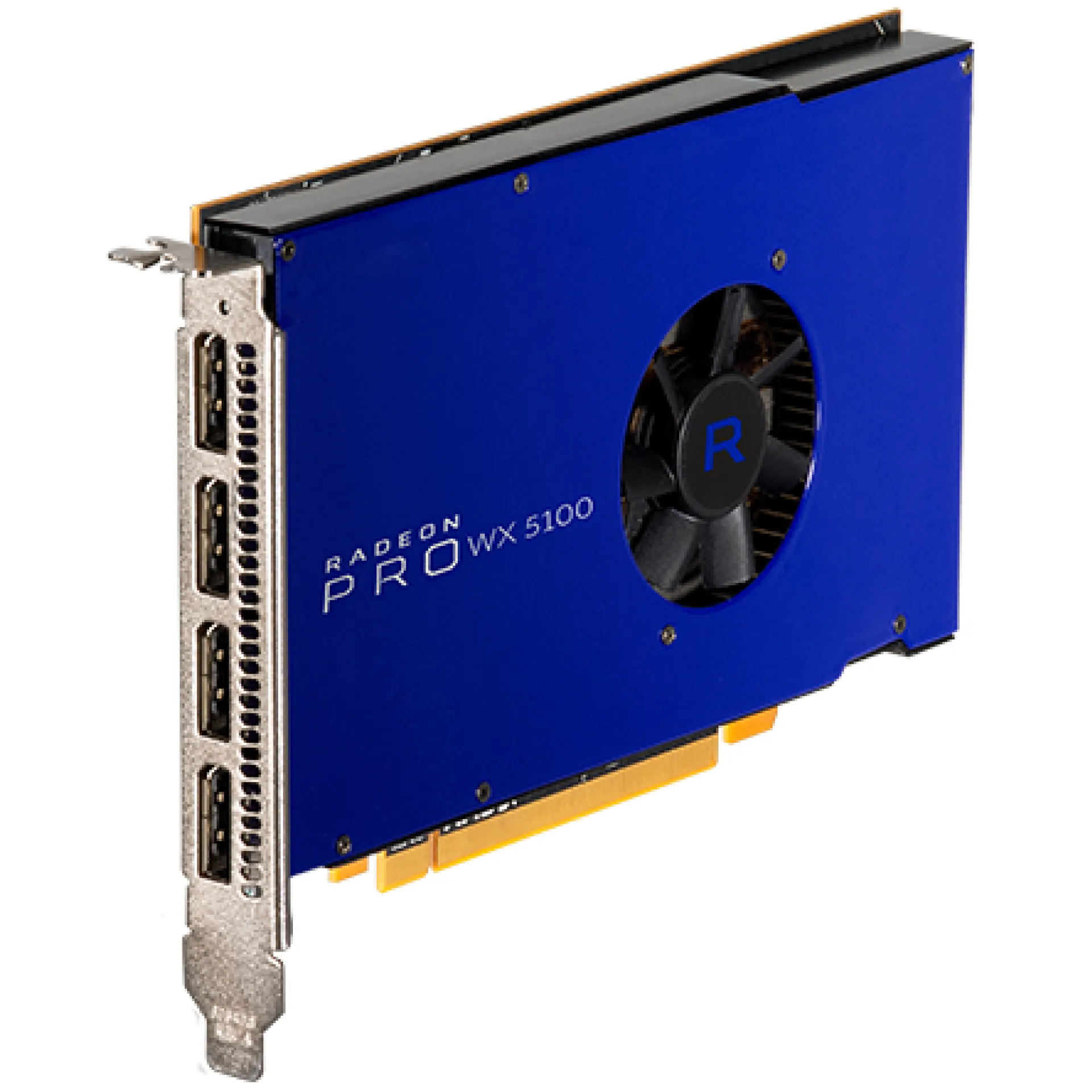

100-505940 AMD Radeon Pro WX 5100 8GB GDDR5 1086MHz 160GT/s GPU

Single-Slot PCIe Workstation GPU for CAD and Visualization with the 100-505940

The 100-505940 is an AMD Radeon Pro WX 5100 (Polaris, 14nm) workstation graphics add-in card designed for professional CAD/CAM, 3D content creation, and multi-display enterprise desktops where predictable driver behavior and stable throughput matter. As a PCIe 3.0 x16 single-slot adapter, the 100-505940 integrates cleanly into dense workstation towers and 1U/2U platforms that require full-height expansion without exceeding power and thermals.

Architecturally, the 100-505940 pairs 1792 stream processors with 8GB GDDR5 on a 256-bit interface, delivering balanced frame-buffer capacity and memory bandwidth for complex assemblies, texture-heavy models, and viewport workflows. The PCIe 3.0 x16 host link provides sufficient headroom for interactive rendering and entry-level OpenCL/FP32 acceleration, while the 75W class power profile supports fleet standardization across office, engineering, and lab environments. For visualization, the 100-505940 exposes 4 x DisplayPort 1.4 for high-resolution, multi-monitor desks and supports modern APIs including DirectX 12, OpenGL 4.6, OpenCL 2.0, and Vulkan 1.1.

Why Choose the 100-505940?

The 100-505940 targets an efficient density-to-performance ratio: single-slot deployment, modest power draw, and professional graphics capabilities that scale across departments without requiring specialized cooling or oversized PSUs. The result is a reliable, repeatable configuration that fits enterprise workstation rollouts and supports controlled expansion via standard PCIe 3.0 infrastructure.

AMD’s Radeon Pro engineering emphasizes ISV-aligned stability, consistent behavior under sustained loads, and compatibility with modern operating systems and display standards, supporting maintainable workstation baselines in data centre and office environments.

Key Applications:

• CAD/CAM workstation graphics
• 3D modeling and content creation
• Multi-display professional desktops
• Entry-level OpenCL/FP32 compute

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment and procurement requirements, and you can extend the warranty up to 6 years to secure long-term operation of the 100-505940 across standardized workstation fleets.
