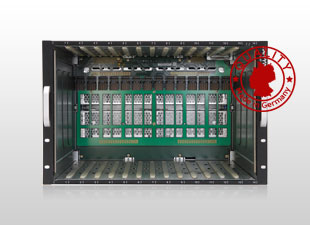

Supermicro SBE-714E Blade Enclosure

Supermicro SBE-714E-R48 Blade-Gehäuse

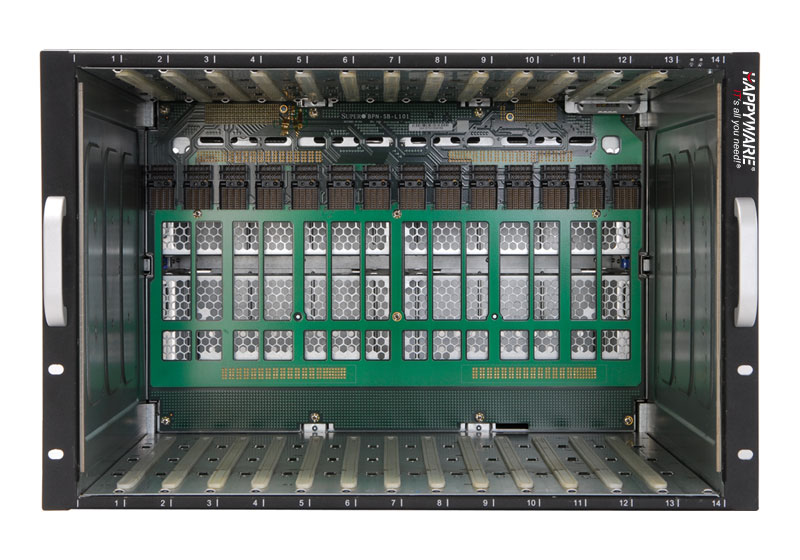

19" 7U Supermicro SuperBlade Enclosure SBE-714E-R48
- Optional up to 14 Hot-Plug Server-Blades (Intel Support)
- Optional up to 2 Hot-Plug Gigabit Switches / Pass-Through Modules
- Optional up to 1 Hot-Plug DDR Infiniband-Switch
- Inclusive 1x Hot-Plug Management Module with Remote KVM and IPMI 2.0 (optional second module
installable)
- 8 integrated FANs, Power-LED, Fault-LED
- Redundant Power Supply with 4x 1620W modules

Supermicro 1 GBit/s Switchmodul mit 14 Ports
Supermicro SuperBlade Gigabit Ethernet Switch
- Broadcom BCM5345M Chipset
- 14 Internal downlink ports for Blade-Module LAN interface
- 10 External RJ45 Uplink Ports
- Layer 2 Switch
- Bandwidth: 48 Gbps non-blocking
- Jumbo Frame Support, up to 9 KBytes
- Browser based management
- Firmware upgradeable

Supermicro 1 GBit/s Ethernet Pass-Through Modul
Supermicro SuperBlade Gigabit Ethernet Pass-Through module
- Broadcom 5646 Chipset
- 14 Internal downlink ports for Blade-Module LAN interface
- 14 External RJ45 uplink ports
- Browser based management

Supermicro 1/10 GBit/s Switchmodul mit 14 Ports
Supermicro SuperBlade 1/10 Gigabit Ethernet Switch
- Broadcom BCM56313 Chipset
- 14 internal 1 Gbps downlink Ports for LAN interfaces of the server blades
- 3 external 10 Gbps Uplink-Ports (2x CX4, 1x SFP+)
- 2 external 1 Gbps Uplink-Ports (RJ45)
- Layer 2 / 3 Switch
- Bandwidth: 112 Gbps
- Jumbo Frame Support, up to 9 KBytes
- Browser based management
- Firmware can be updated

Supermicro SBM-IBS-001 Blade Infiniband Switch
Supermicro SuperBlade Infiniband Switch Module
- Mellanox InfiniScale III Switch Chip
- 14 Internal DDR ports
- 10 External DDR uplink ports (CX-4 Connectors)
- 20 Gbps DDR non-blocking architecture
- 960 Gbps total switch bandwidth

Supermicro SBM-IBP-D14 Blade IB Pass-Through Modul
Supermicro SuperBlade Infiniband Pass-Through Module
- 14 Internal DDR ports
- 14 External DDR ports (CX-4 Connectors)

Supermicro SBM-CMM-001 Blade Management
Supermicro SuperBlade Management Module (CMM)
- Remotely manage and monitor server blades, power supplies, cooling fans, and switches
- 1x VGA, 2x USB, 1x LAN, Hot-Swap, KVM over LAN, IPMI 2.0, SOL
- for SBE-710E, SBE-714E and SBE-714D
